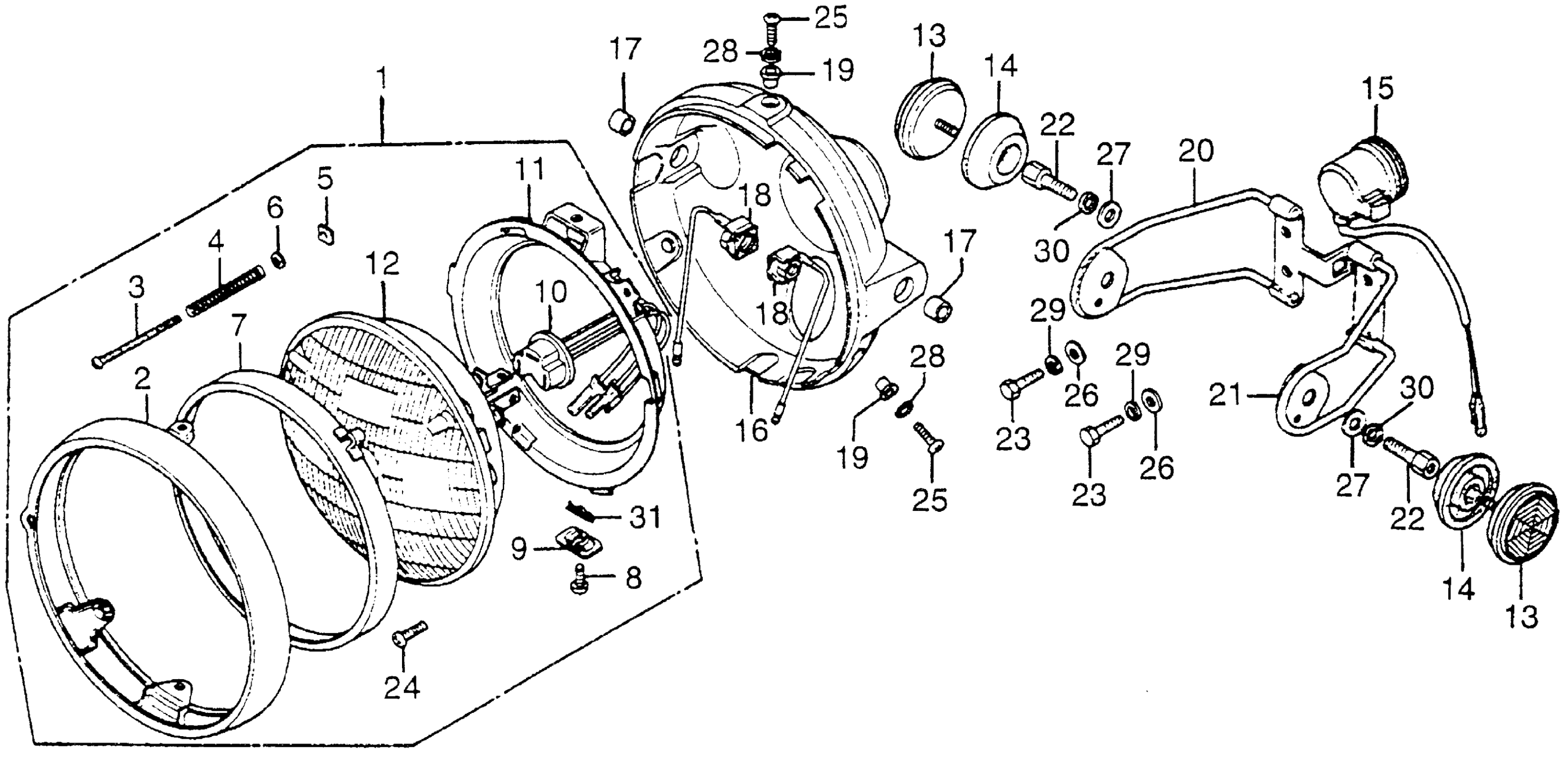

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V50/40W) (STANLEY) (NOT AVAILABLE)

33100-371-672

Unavailable

2

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

RING, RETAINING (NOT AVAILABLE)

33121-375-671

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-300-671.

33130-300-003

Unavailable

11

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

13

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

14

BASE, FR. REFLECTOR

33743-375-000

Unavailable

15

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

16

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-375-003B

Unavailable

17

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

18

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

19

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

20

STAY, R. HEADLIGHT (NOT AVAILABLE)

61314-393-000

Unavailable

21

STAY, L. HEADLIGHT (NOT AVAILABLE)

61315-393-000

Unavailable

22

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-377-000

Unavailable

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

SCREW, PAN (3X12)

93500-03012-0A

$1.49

24

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

25

SCREW, PAN (5X16)

93500-05016-0B

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (10MM)

94101-10200

$1.49

28

WASHER, SPRING (5MM)

94111-05000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

WASHER, SPRING (8MM)

94111-10000

$1.49

31

PIN, LOCK (5MM)

94251-05000

$1.49
