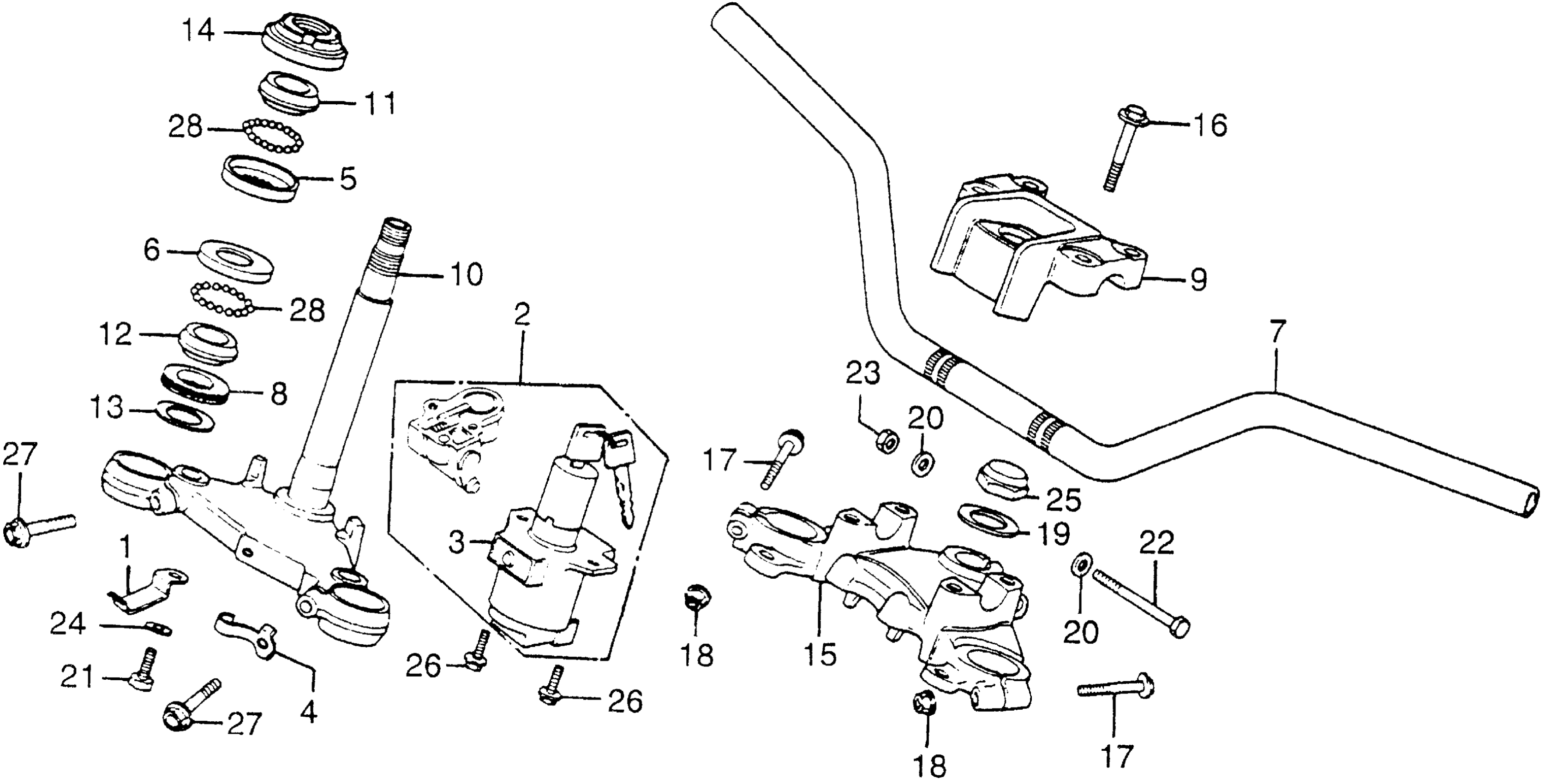

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CLIP D, WIRE HARNESS

32123-393-000

Unavailable

2

LOCK SET (HONDALOCK) This part replaces 35010-377-000.

35010-377-007

Unavailable

2

LOCK SET (HONDALOCK)

35010-377-007

Unavailable

2

LOCK SET (HONDALOCK) This part replaces 35100-377-003.

35010-377-007

Unavailable

2

LOCK SET (HONDALOCK) This part replaces 35100-377-007.

35010-377-007

Unavailable

3

LOCK SET (HONDALOCK)

35010-377-007

Unavailable

3

LOCK SET (HONDALOCK) This part replaces 35100-377-003.

35010-377-007

Unavailable

3

LOCK SET (HONDALOCK) This part replaces 35100-377-007.

35010-377-007

Unavailable

4

CLIP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-393-000

Unavailable

5

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.71

5

RACE, STEERING BALL (UPPER)

50301-268-010

$19.71

5

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.71

6

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$20.68

6

RACE, STEERING BALL (LOWER)

50302-268-010

$20.68

6

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$20.68

7

HANDLEBAR (NOT AVAILABLE)

53100-393-000

Unavailable

8

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$2.89

8

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.89

9

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-393-000

Unavailable

10

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-392-000ZA

Unavailable

11

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.97

11

RACE, STEERING CONE (UPPER)

53211-268-010

$23.97

11

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$23.97

12

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$19.23

12

RACE, STEERING CONE (LOWER)

53212-250-010

$19.23

12

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$19.23

13

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.16

14

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

15

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-392-010

Unavailable

16

BOLT, FLANGE (8X36)

90111-362-000

$4.59

17

BOLT, FLANGE (7X54)

90155-369-000

$5.74

18

NUT, FLANGE (7MM)

90355-369-000

$4.73

19

WASHER, STEERING STEM

90503-283-000

$4.17

20

WASHER, PLAIN (8MM)

90518-921-000

$1.21

20

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.21

20

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.21

21

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.50

21

BOLT, HEX. (8X20)

92101-08020-0A

$1.50

22

BOLT, HEX. (8X74) This part replaces 93000-08074-0B.

93101-08074-0B

Unavailable

23

NUT, HEX. (8MM)

94001-08020-0S

$0.82

24

WASHER, PLAIN (8MM)

94102-08000

$0.87

25

NUT, STEERING STEM

90304-415-000

$18.21

25

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$18.21

26

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.50

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

27

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.40

27

BOLT, FLANGE (10X40)

95701-10040-00

$1.40

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.15
