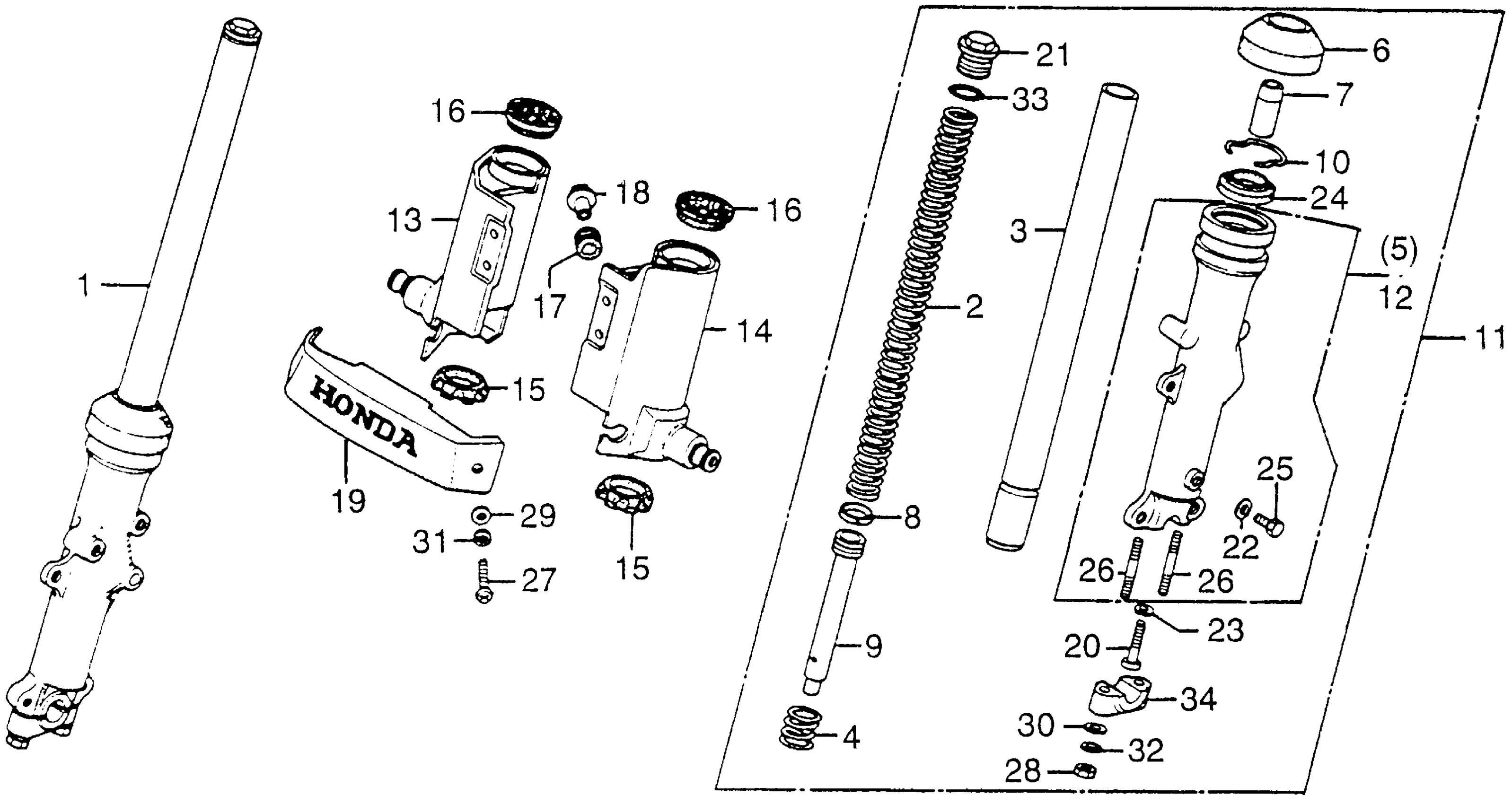

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-393-003

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-393-000

Unavailable

3

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-393-003

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

5

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-393-003

Unavailable

6

DUST SEAL, FR. FORK

51425-375-003

Unavailable

7

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

8

RING, PISTON

51437-329-010

$7.14

9

SEAT (LOWER) (NOT AVAILABLE)

51440-393-003

Unavailable

10

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

10

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

11

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-393-003

Unavailable

12

CASE, L. (LOWER) (SHOWA)

51521-393-003

Unavailable

13

COVER, R. FR. FORK (NOT AVAILABLE)

51602-393-000

Unavailable

14

COVER, L. FR. FORK (NOT AVAILABLE)

51606-393-000

Unavailable

15

RUBBER B, FR. FORK COVER

51622-323-000

Unavailable

16

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

17

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

18

COLLAR, WASHER

83601-393-000

Unavailable

19

EMBLEM, FR.

87127-393-000

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

BOLT, FR. FORK

90123-300-000

$47.61

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

24

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

24

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

24

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

24

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

24

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

25

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

26

BOLT, STUD (8X50)

92900-08028-3B

$1.59

27

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

NUT, HEX. (8MM)

94030-08000

$1.49

29

WASHER, PLAIN (5MM)

94101-05000

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, SPRING (5MM)

94111-05000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

O-RING (23X2.8)

94608-50000

$1.49

34

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
