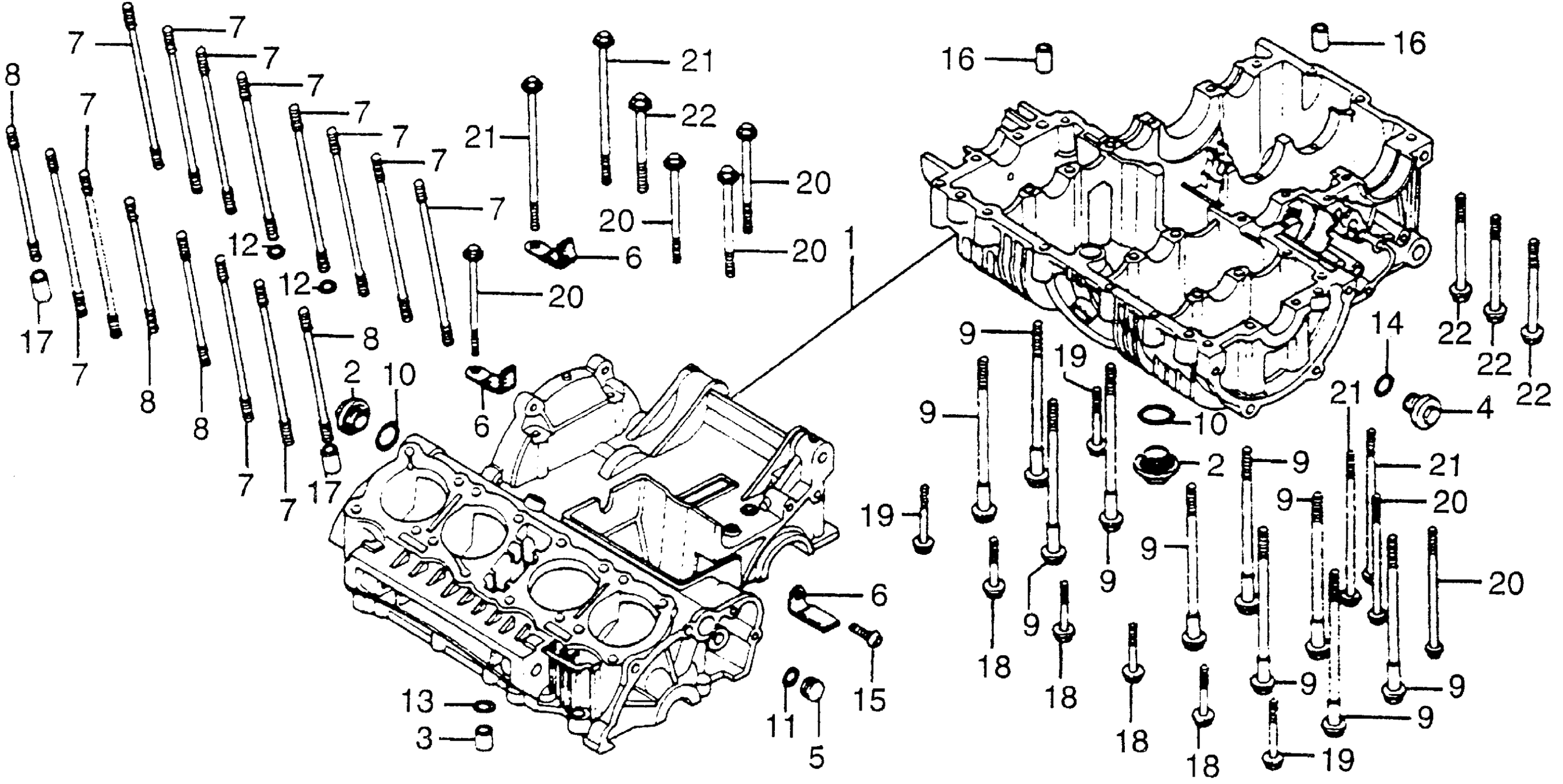

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-393-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

3

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

4

CAP, OIL PASSAGE

15331-300-000

Unavailable

5

PLUG, OIL PASSAGE (NOT AVAILABLE)

15336-393-000

Unavailable

6

CLAMP, CABLE (NOT AVAILABLE)

32111-300-000

Unavailable

7

BOLT A, CYLINDER STUD

90033-300-030

Unavailable

7

BOLT A, CYLINDER STUD This part replaces 90033-300-040.

90033-300-030

Unavailable

8

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.

90034-300-040

Unavailable

8

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-300-040

Unavailable

9

BOLT, UBS (8X118)

90042-393-000

Unavailable

10

O-RING (30.8MM)

91302-001-020

$3.75

11

O-RING (16X1.9)

91306-329-000

$2.92

12

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

12

O-RING (11X2.5) This part replaces 91310-300-000.

91310-426-000

$5.19

12

O-RING (11X2.5)

91310-426-000

$5.19

12

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

13

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

13

O-RING (18X3)

91307-035-000

$2.92

13

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.92

14

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.49

14

O-RING (19.4X2.8)

94608-40000

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12)

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

16

PIN A, DOWEL (10X16)

94301-10160

$2.28

17

PIN, DOWEL (12X18)

94301-12180

$2.59

18

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

18

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

19

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

19

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

20

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

20

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

21

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$3.09

21

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

22

BOLT, FLANGE (8X60) This part replaces 95700-08060-00.

95701-08060-00

$1.49

22

BOLT, FLANGE (8X60)

95701-08060-00

$1.49
