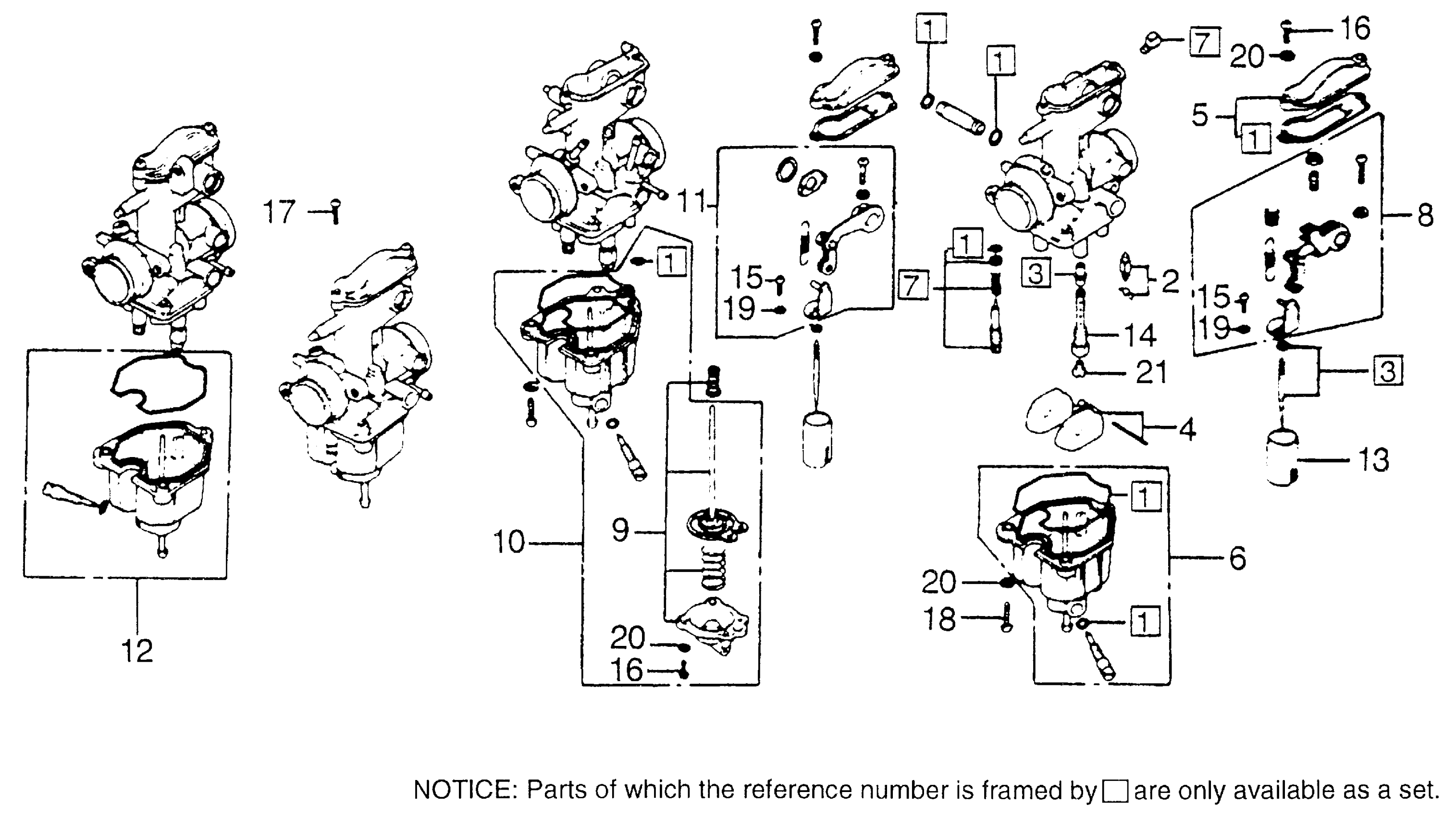

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 CARBURETOR COMPONENTS Diagram

GASKET SET This part replaces 16010-393-004.

16010-393-305

$23.21

GASKET SET

16010-393-305

$23.21

VALVE SET, FLOAT This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-393-004.

16011-KCK-910

$33.82

NEEDLE SET, JET

16012-393-004

Unavailable

FLOAT SET

16013-KCY-670

$64.31

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

TOP SET (NOT AVAILABLE)

16014-393-004

Unavailable

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

CHAMBER SET, FLOAT This part replaces 16015-393-004.

16015-KN4-A10

$97.52

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

SCREW SET A (NOT AVAILABLE)

16016-393-004

Unavailable

ARM SET A, LINK

16018-393-004

Unavailable

DIAPHRAGM SET, PUMP

16021-393-004

Unavailable

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-393-004

Unavailable

ARM SET B, LINK

16031-393-004

Unavailable

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

VALVE, THROTTLE (NOT AVAILABLE)

16111-393-004

Unavailable

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-393-004

Unavailable

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (4X12)

93500-04012-0H

$1.49

SCREW, PAN (4X14)

93500-04014-0H

$1.49

SCREW, PAN (4X16)

93500-04016-0H

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

JET, MAIN (#102)

99101-GHB-1020

$6.40

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40
