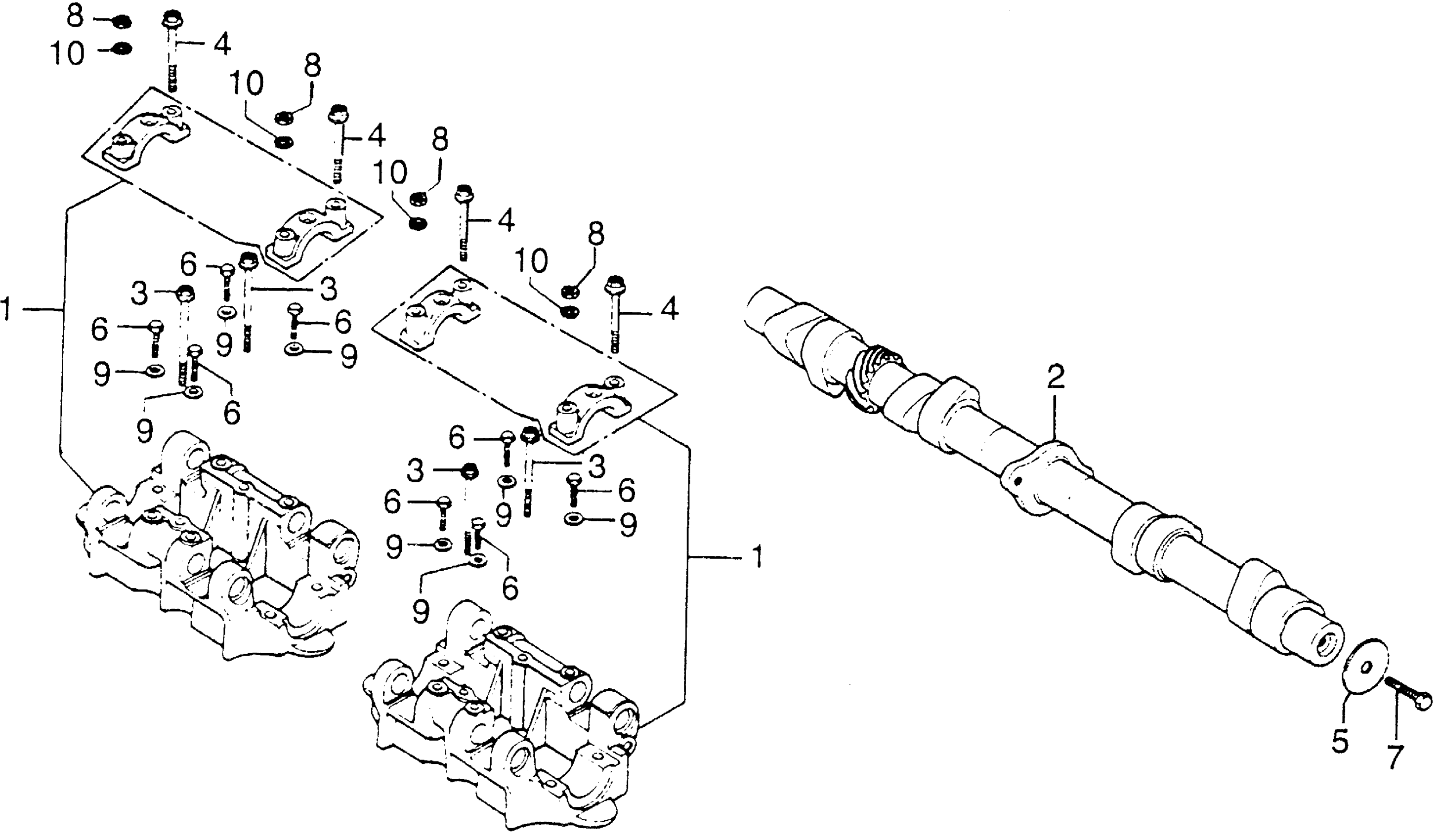

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 CAMSHAFT + CAMSHAFT HOLDER Diagram

HOLDER SET, CAMSHAFT (NOT AVAILABLE) This part replaces 12010-300-040.

12010-410-000

Unavailable

HOLDER SET, CAMSHAFT (NOT AVAILABLE)

12010-410-000

Unavailable

CAMSHAFT (NOT AVAILABLE)

14101-393-000

Unavailable

BOLT, SHAFT STOPPER

90052-300-000

Unavailable

BOLT, FLANGE (6X58) (NOT AVAILABLE)

90054-300-000

Unavailable

WASHER, THRUST (8MM) (NOT AVAILABLE)

90453-300-000

Unavailable

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

BOLT, HEX. (8X20) This part replaces 92100-08020-0A.

92101-08020-0A

$1.62

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
