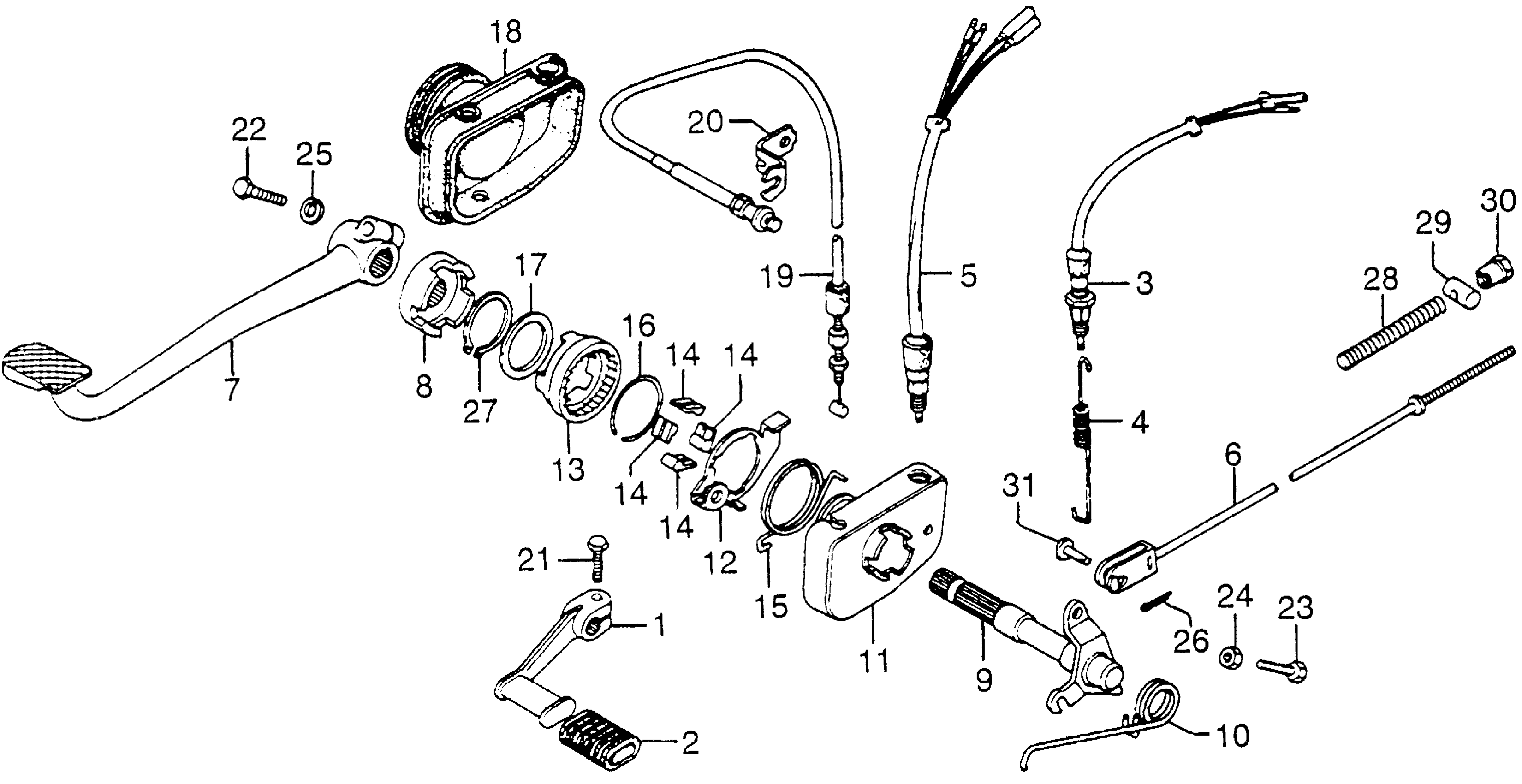

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 BRAKE PEDAL + CHANGE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-393-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

3

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

4

SPRING, STOP SWITCH

35357-393-000

Unavailable

5

SWITCH ASSY., PARKING This part replaces 35360-393-003.

35360-393-772

Unavailable

5

SWITCH ASSY., PARKING This part replaces 35360-393-771.

35360-393-772

Unavailable

5

SWITCH ASSY., PARKING

35360-393-772

Unavailable

6

ROD, RR. BRAKE

43451-393-000

Unavailable

7

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-393-000

Unavailable

8

JOINT, RR. BRAKE (NOT AVAILABLE)

46501-393-003

Unavailable

9

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-393-000

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-393-000

Unavailable

11

BASE, RATCHET (MUSASHI) (NOT AVAILABLE)

46601-393-023

Unavailable

12

LEVER, RATCHET (MUSASHI) (NOT AVAILABLE)

46602-393-013

Unavailable

13

CASE, RATCHET (MUSASHI) (NOT AVAILABLE)

46604-393-003

Unavailable

14

POLE, RATCHET (MUSASHI) (NOT AVAILABLE)

46605-393-013

Unavailable

15

SPRING, RATCHET RETURN (NOT AVAILABLE)

46606-393-010

Unavailable

16

SPRING, POLE SET (NOT AVAILABLE)

46607-393-010

Unavailable

17

WASHER (38X29.5X1) (MUSASHI) (NOT AVAILABLE)

46608-393-003

Unavailable

18

COVER, RATCHET (NOT AVAILABLE)

46611-393-000

Unavailable

19

CABLE, PARKING BRAKE (KOUKOKU) (NOT AVAILABLE)

46620-393-004

Unavailable

20

BRACKET, PARKING BRAKE CABLE (NOT AVAILABLE)

46625-393-000

Unavailable

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

22

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

23

BOLT, HEX. (8X32) (NOT AVAILABLE)

92132-08032-0A

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

PIN, COTTER (1.6X12)

94201-16120

$1.49

27

CIRCLIP (OUTER) (29MM) (SOURCE: VINTAGE PARTS INC.)

94511-29000

Unavailable

28

SPRING A, BRAKE ROD

95014-73100

$1.49

28

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

29

JOINT, BRAKE ARM

95015-32001

$1.49

30

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

31

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
