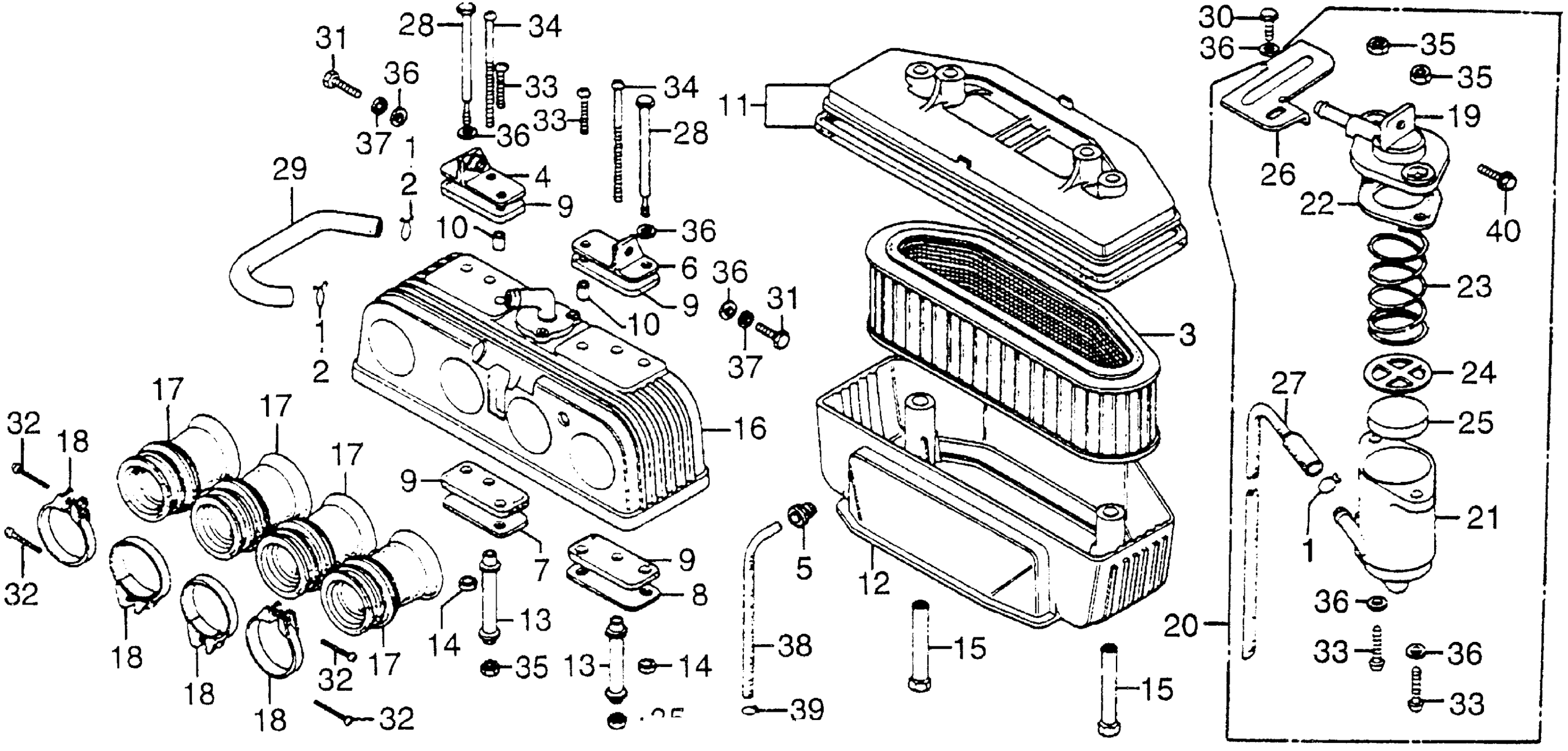

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE | Use up to Frame SN 7000451

15772-292-010

$2.92

1

CLIP, BREATHER TUBE | Use from Frame SN 7000452

15772-292-010

$2.92

2

CLIP, BREATHER TUBE | Use up to Frame SN 7000451

15772-551-000

$2.05

2

CLIP, BREATHER TUBE (NOT AVAILABLE) | Use up to Frame SN 7000451

15772-551-680

$6.39

3

ELEMENT, AIR CLEANER This part replaces 17211-392-000.

17211-405-000

Unavailable

3

ELEMENT, AIR CLEANER

17211-405-000

Unavailable

4

STAY, R. AIR CLEANER HOUSING (NOT AVAILABLE)

17215-392-000

Unavailable

5

GROMMET, SOLENOID PIPE (NOT AVAILABLE)

17215-393-000

Unavailable

6

STAY, L. AIR CLEANER HOUSING (NOT AVAILABLE)

17216-392-000

Unavailable

7

PLATE, R. AIR CLEANER HOUSING (NOT AVAILABLE)

17217-392-000

Unavailable

8

PLATE, L. AIR CLEANER HOUSING (NOT AVAILABLE)

17218-392-000

Unavailable

9

RUBBER, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

17219-392-000

Unavailable

10

COLLAR, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

17220-300-010

Unavailable

11

SEPARATOR, AIR CLEANER HOUSING (NOT AVAILABLE) This part replaces 17230-392-000.

17230-405-305

Unavailable

12

COVER, AIR CLEANER (NOT AVAILABLE)

17231-392-000

Unavailable

13

COLLAR, AIR CLEANER HOUSING (NOT AVAILABLE)

17237-392-000

Unavailable

14

NUT A, AIR CLEANER COVER (NOT AVAILABLE)

17238-392-000

Unavailable

15

NUT B, AIR CLEANER COVER (NOT AVAILABLE)

17239-392-000

Unavailable

16

HOUSING, AIR CLEANER (NOT AVAILABLE)

17240-393-305

Unavailable

17

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-393-300

Unavailable

18

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.64

19

COVER, BREATHER

17259-393-000

Unavailable

20

BREATHER ASSY.

17260-393-000

Unavailable

21

CHAMBER, BREATHER

17261-392-000

Unavailable

22

GASKET, BREATHER (NOT AVAILABLE)

17262-392-000

Unavailable

23

SPRING, FILTER SET (NOT AVAILABLE)

17263-392-000

Unavailable

24

SCREEN, FILTER SET (NOT AVAILABLE)

17264-392-000

Unavailable

25

FILTER, BREATHER (NOT AVAILABLE)

17265-392-000

Unavailable

26

STAY, BREATHER

17266-393-000

Unavailable

27

TUBE, DRAIN (NOT AVAILABLE)

17358-393-000

Unavailable

28

BOLT, AIR CLEANER COVER (NOT AVAILABLE)

90143-392-000

Unavailable

29

TUBE A, BREATHER (NOT AVAILABLE)

90182-393-000

Unavailable

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

32

SCREW, PAN (4X20)

93500-04020-0A

$1.49

33

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

33

SCREW, PAN (6X20)

93500-06020-0A

$1.49

34

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

34

SCREW, PAN (6X80)

93500-06080-0A

$1.49

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

BULK HOSE, FUEL (3.5X3000) (3.5X170)

95001-35003-60M

$20.85

39

CLIP, TUBE (B7)

95002-02070

$1.80

40

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

40

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
