Description

Price

1

SHAFT, MAIN

23211-MLB-D00

$122.92

2

PLATE

23212-MLB-D00

$4.57

3

COUNTERSHAFT COMP

23220-MLB-D00

$139.33

4

GEAR (C-1)

23421-MLB-D00

$90.21

5

GEAR (M-2)

23431-MLB-D00

$43.93

6

GEAR (C-2)

23441-MLB-D00

$90.21

7

COLLAR (28MM)

23442-MM4-000

$23.62

8

GEAR (M-3) (M-4)

23451-MLB-D00

$106.54

9

GEAR (C-3)

23461-MLB-D00

$85.80

10

COLLAR (28X31X10)

23462-MLB-D00

$14.03

11

GEAR (C-4)

23481-MLB-D00

$85.80

12

GEAR (M-5)

23491-MLB-D00

$87.30

13

COLLAR (25X28X12)

23492-MGZ-J00

$13.79

14

GEAR (C-5)

23501-MLB-D00

$97.64

15

GEAR (M-6)

23511-MLB-D00

$87.30

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

17

GEAR (C-6)

23521-MLB-D00

$97.64

18

SPROCKET (16T)

23801-MLB-D00

$35.98

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

22

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

23

WASHER

90451-MKW-D00

$2.15

24

WASHER, SPLINE (28X27X1)

90452-MKR-D10

$3.39

25

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

26

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

27

WASHER (10.2MM)

90459-438-000

$5.83

28

WASHER, SPLINE (25MM)

90461-KY2-000

$5.34

29

WASHER, LOCK (25MM)

90462-KAZ-000

$9.31

30

WASHER (28MM) (M1.0)

90463-MLB-D00

$2.84

31

WASHER (28MM) (M1.0)

90464-MLB-D00

$2.84

32

CIRCLIP (25MM)

90601-107-000

$3.74

33

CIRCLIP (28MM)

90603-MN4-000

$4.11

34

BRG (63/28)

91001-MLB-D01

$33.23

35

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

36

BEARING, NEEDLE (20MM) (NTN)

91022-MJE-DB1

$45.02

37

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$10.87

38

OIL SEAL (39X72X8)

91207-MBB-013

$12.82

39

RING, SNAP (72MM)

94560-72200

$3.74

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

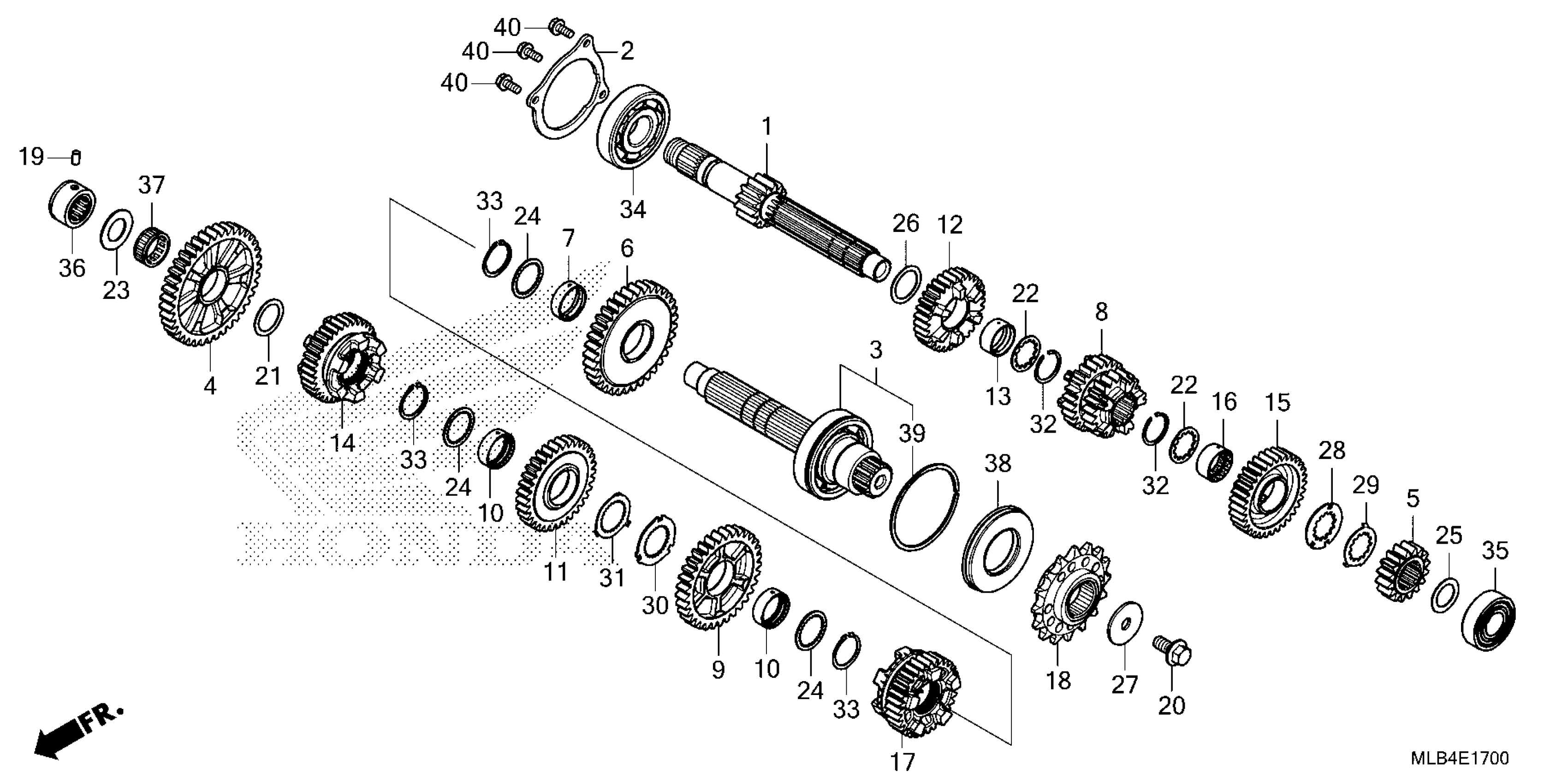

Honda CB750A4AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 TRANSMISSION Diagram

SHAFT, MAIN

PLATE

COUNTERSHAFT COMP

GEAR (C-1)

GEAR (M-2)

GEAR (C-2)

COLLAR (28MM)

GEAR (M-3) (M-4)

GEAR (C-3)

COLLAR (28X31X10)

GEAR (C-4)

GEAR (M-5)

COLLAR (25X28X12)

GEAR (C-5)

GEAR (M-6)

COLLAR, SPLINE (25X28X13)

GEAR (C-6)

SPROCKET (16T)

PIN, GEARSHIFT FORK GUIDE

BOLT, SPECIAL (10MM)

WASHER, THRUST (24MM)

WASHER, SPLINE (25X31X1.5)

WASHER

WASHER, SPLINE (28X27X1)

WASHER, THRUST (20X1.00)

WASHER, THRUST (25MM)

WASHER (10.2MM)

WASHER, SPLINE (25MM)

WASHER, LOCK (25MM)

WASHER (28MM) (M1.0)

WASHER (28MM) (M1.0)

CIRCLIP (25MM)

CIRCLIP (28MM)

BRG (63/28)

BEARING, RADIAL BALL (6204U)

BEARING, NEEDLE (20MM) (NTN)

BEARING, NEEDLE (24X28X10)

OIL SEAL (39X72X8)

RING, SNAP (72MM)

BOLT, FLANGE (6X14) (Honda Code 2410884)
