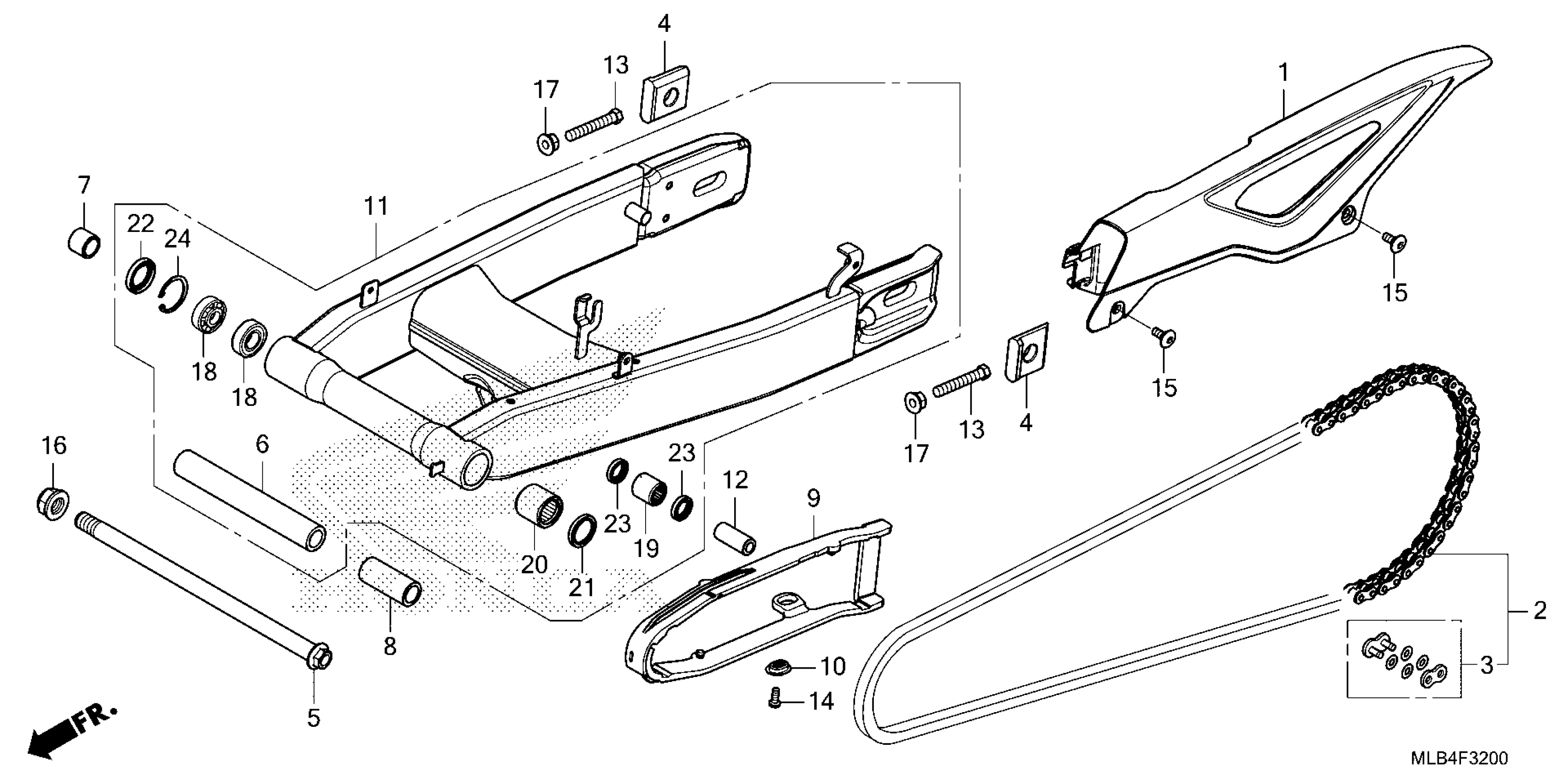

Honda CB750A4AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MGS-D30

$114.67

2

CHAIN, DRIVE

40540-MLB-D01

$151.72

2

CHAIN, DRIVE

40540-MLB-D02

$141.85

3

JOINT, DRIVE CHAIN

40545-MLB-D01

$9.18

3

JOINT.DRIVE CHAIN

40545-MLB-D02

$9.18

4

COLLAR, RR. AXLE

42305-MKP-J00

$23.93

5

BOLT, SWINGARM PIVOT

52101-MLB-D00

$30.84

6

COLLAR

52141-MLB-D00

$17.92

7

COLLAR, R.

52142-MLB-D00

$6.28

8

COLLAR, L PIVOT DIST

52143-MLB-D00

$13.49

9

SLIDER, CHAIN

52170-MLB-D00

$29.87

10

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

11

SWINGARM SUB, RR.

52200-MLB-D20

$574.18

12

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

13

BOLT, HEX. (8X50)

90106-MLF-E80

$1.98

14

SCREW, PAN (5X12)

90107-MJP-G50

$1.89

15

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

16

NUT, U (16MM)

90305-MY5-731

$10.61

17

NUT, HEX. (10MM)

90309-357-000

$3.40

18

BEARING (6003)

91051-MLB-D21

$12.88

19

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

20

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

21

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

22

DUST SEAL (23X35X5)

91214-MAL-601

$8.21

23

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

24

CIRCLIP (INNER) (35MM)

94520-35000

$1.84
