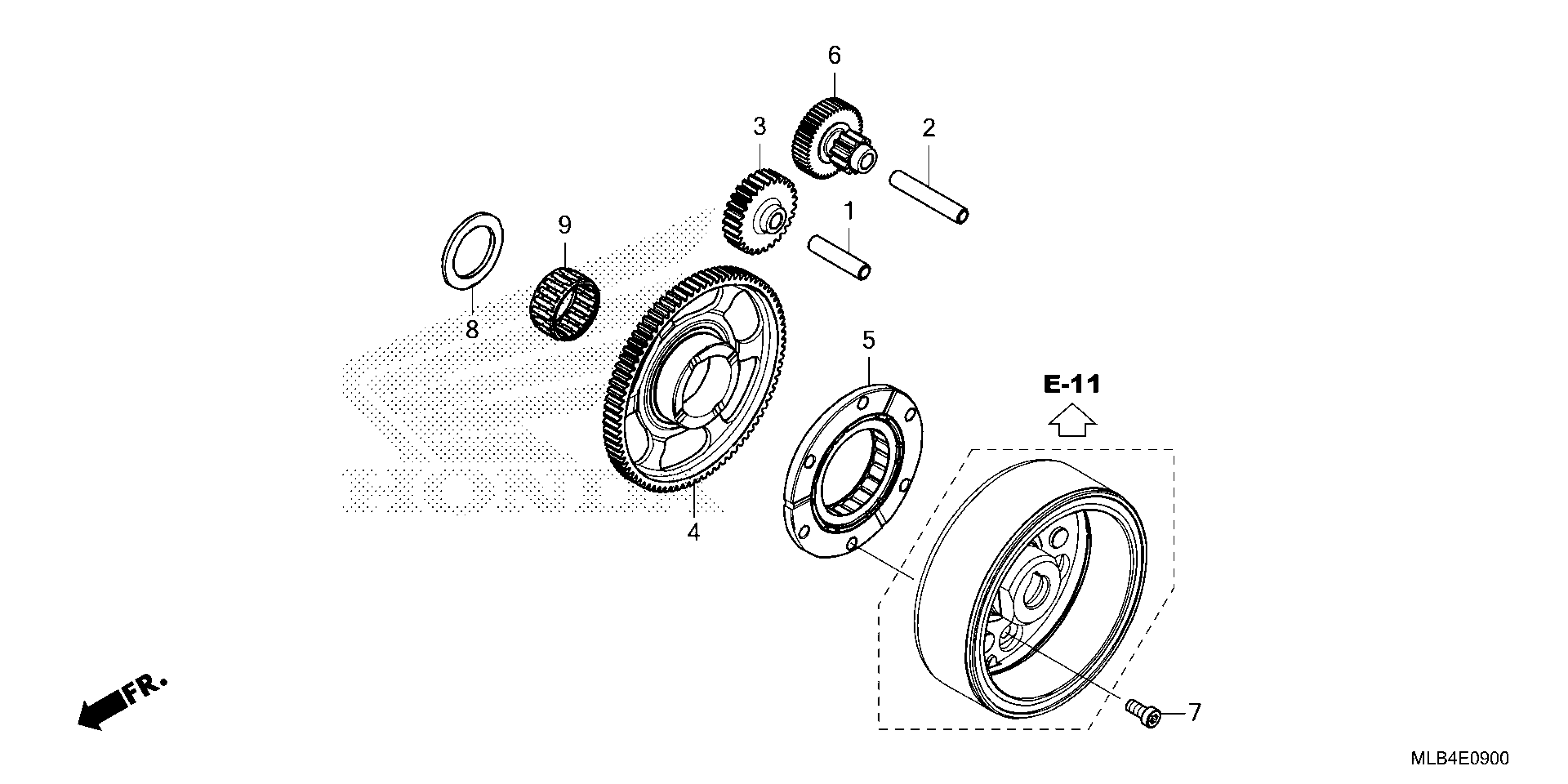

Honda CB750A4AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 STARTING CLUTCH Diagram

#

Description
Price

1

PIN (10X44)

28102-ME9-000

$9.23

2

PIN (10X58)

28102-MEH-000

$8.75

3

GEAR, STARTER IDLE

28106-MLB-D00

$42.66

4

GEAR COMP

28110-MLB-D00

$106.65

5

CLUTCH OUTER COMP

28125-MLB-D01

$159.46

6

GEAR

28131-MLB-D00

$54.28

7

BOLT, SOCKET (8MM)

90010-MAY-000

$5.00

8

WASHER (35X50X3.2)

90401-MEA-670

$4.97

9

BRG (35X42X20)

91107-K0Z-901

$12.38
