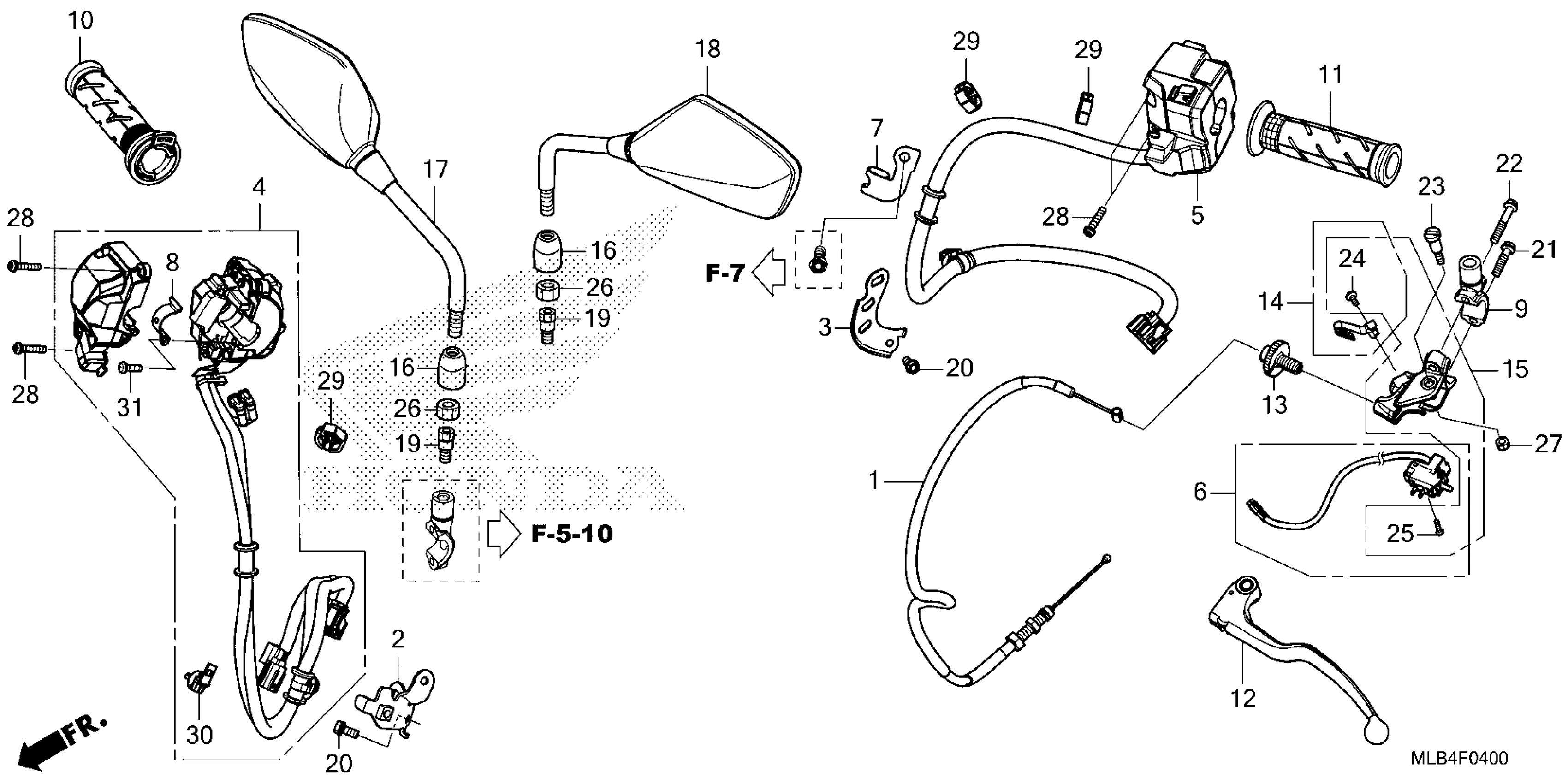

Honda CB750A4AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 HANDLE SWITCH@GRIP@CABLE @MIRROR Diagram

CABLE, CLUTCH

22870-MLB-D01

$19.67

STAY, HARNESS CLIP

32150-MLB-D00

$8.63

STAY, L HARNESS CLIP

32155-MLB-D00

$5.70

SWITCH UNIT

35135-MLB-D21

$189.86

SWITCH, TURN SIGNAL

35200-MLB-D21

$142.10

SWITCH SET, CLUTCH

35335-MKJ-E50

$19.36

STAY, WIRE GUIDE

35910-MKP-J40

$6.89

PLATE A, SETTING

37971-MLL-D01

$2.77

HOLDER, MASTER CYLINDER

45518-MFN-D01

$12.41

GRIP ASSY., THROTTLE

53140-MKF-D41

$34.95

GRIP, L. HANDLE

53150-MGS-D30

$12.11

LEVER, L. HANDLE

53182-MCJ-750

$23.95

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.72

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$4.15

BRACKET SET

53195-MKJ-E50

$33.41

COVER, LOCK NUT

88130-MFG-D00

$1.77

MIRROR, R.

88210-MLB-D00

$71.61

MIRROR, L.

88220-MLB-D00

$71.61

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.79

BOLT, FLANGE (6X12)

90021-GHB-620

$2.23

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

BOLT, FLANGE (6X32)

90021-GHB-710

$2.48

BOLT, LEVER PIVOT

90122-MCJ-750

$4.80

SCREW, PAN (4X10)

90123-MCJ-751

$1.49

SCREW, PAN (3X20)

90124-MKJ-E51

$1.49

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.40

NUT, U (6MM)

90301-MCJ-750

$2.26

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

CLAMP, HARNESS

90690-MEF-800

$1.49

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

SCREW-WASHER (5X8)

93892-05008-08

$1.49
