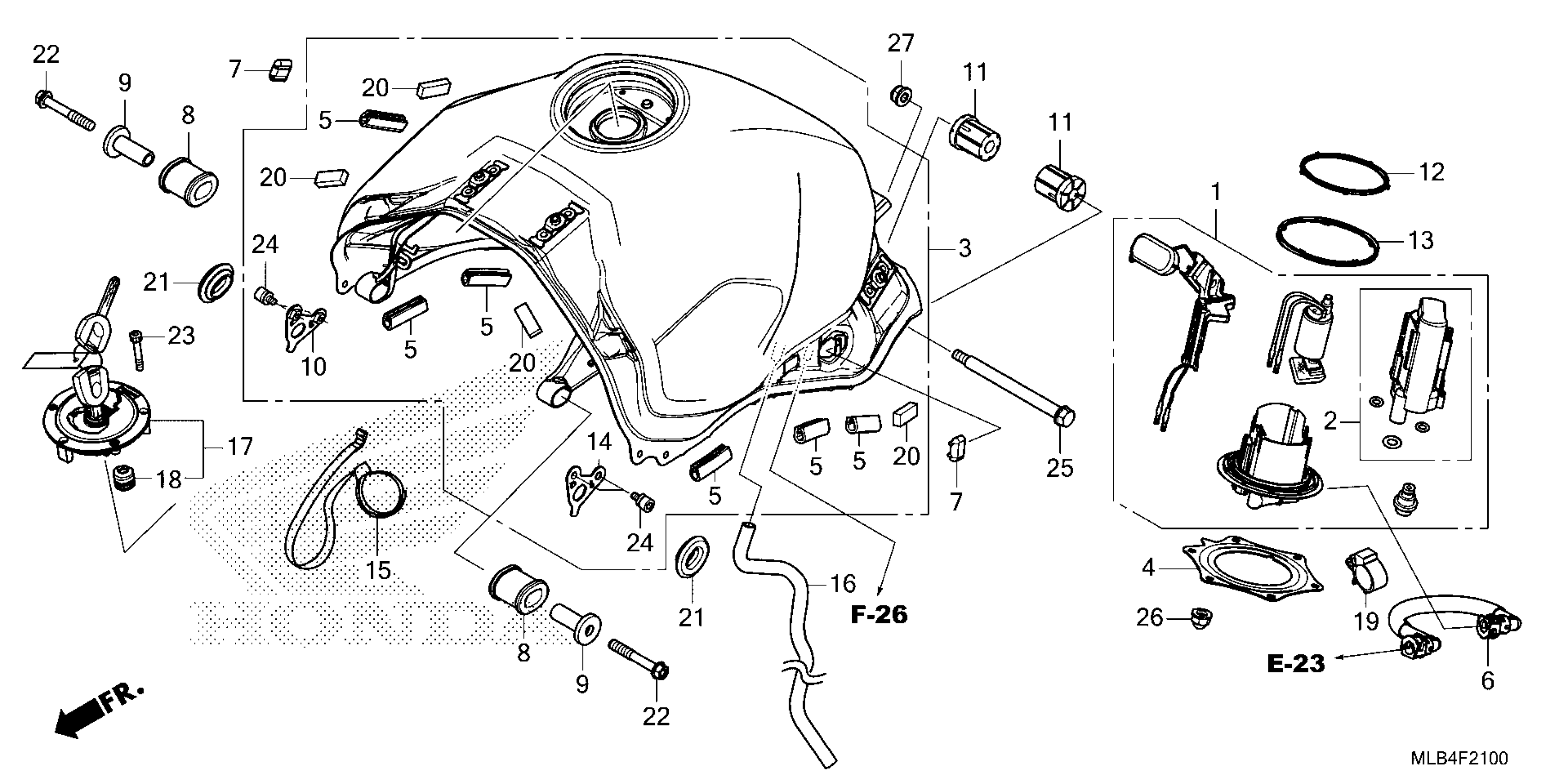

Honda CB750A4AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT, FUEL

16700-MLB-D01

$499.35

FILTER ASSY., FUEL

16730-MLB-D01

$33.57

TANK, FUEL (TYPE1)

17500-MLB-D20ZD

$624.28

PLATE

17506-MLB-D00

$7.71

TRIM, FUEL TANK *NH1* (BLACK)

17516-KCZ-000ZB

$1.87

HOSE COMP, FUEL FEED

17526-MLB-D01

$43.96

RUBBER, TANK COVER

17529-K15-920

$1.97

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.47

COLLAR

17538-KZZ-900

$2.16

STAY, R. SHROUD

17570-MLB-D00

$4.24

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.13

GASKET, FUEL PUMP

17572-MKT-D00

$17.75

DUST SEAL

17573-MKT-D00

$6.28

STAY, L. SHROUD

17575-MLB-D00

$4.24

STRAP, FUEL TANK

17576-MLB-D00

$6.90

TUBE, TANK DRAIN

17590-MLB-D00

$16.46

CAP COMP

17620-MJS-J33

$225.38

SEAL, BREATHER

17621-MGP-D62

$4.90

CLIP, RETURN HOSE

53781-MKG-VB1

$0.88

RUBBER, TAILLIGHT

80103-MFE-670

$1.28

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

BOLT, FLANGE (6X40)

90021-GHB-740

$2.50

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.11

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

BOLT, TANK HINGE

90135-MS2-000

$5.95

NUT, CAP (6MM)

90201-415-000

$1.99

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89
