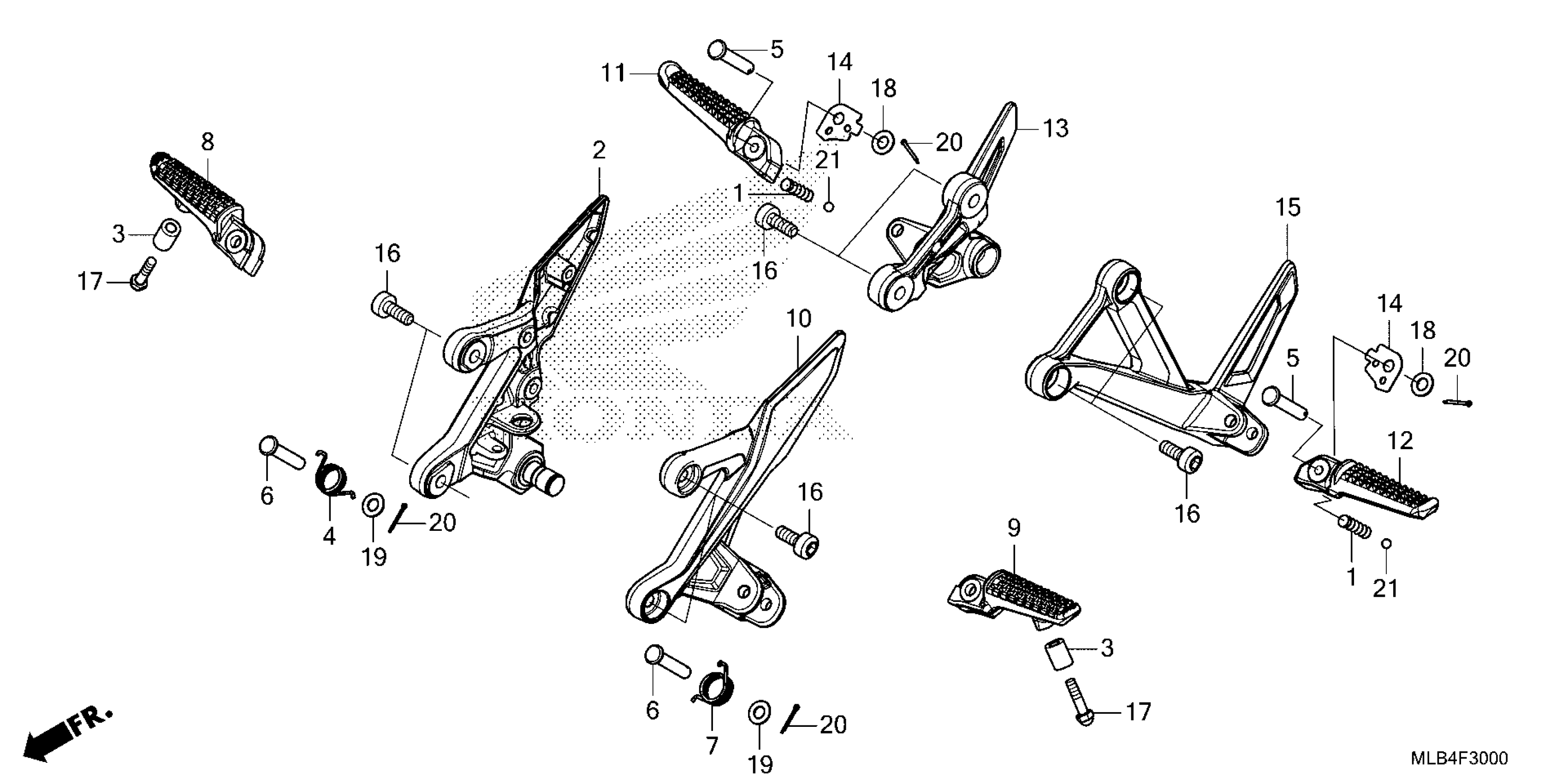

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 STEP Diagram

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

HOLDER, R. MAIN STEP

50600-MKP-J00

$36.74

COLLAR (6X15)

50611-MLB-D00

Unavailable

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

PIN, STEP BAR

50639-MFL-D20

$2.80

PIN, STEP BAR

50639-ML0-010

$4.84

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

ARM, R. MAIN STEP

50660-MKN-D50

$12.68

ARM, L. MAIN STEP

50665-MKN-D50

$12.68

HOLDER, L. MAIN STEP

50700-MJW-J00

$28.13

ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30.

50711-MGS-305

$59.44

ARM, R. PILLION STEP (COO)

50711-MGS-305

$59.44

ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30.

50712-MGS-305

$55.68

ARM, L. PILLION STEP (COO)

50712-MGS-305

$55.68

HOLDER, R. PILLION STEP

50715-MJW-J00

$24.72

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

HOLDER, L. PILLION STEP

50725-MJW-J00

$24.01

BOLT, SOCKET (8X22)

90116-MGZ-J00

$0.88

BOLT, CAP (6X25)

92501-06025-0A

$2.68

WASHER, PLAIN (8MM)

94102-08000

$0.87

WASHER, PLAIN (8MM)

94102-08800

$0.87

PIN, COTTER (2.0X15)

94201-20150

$1.04

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
