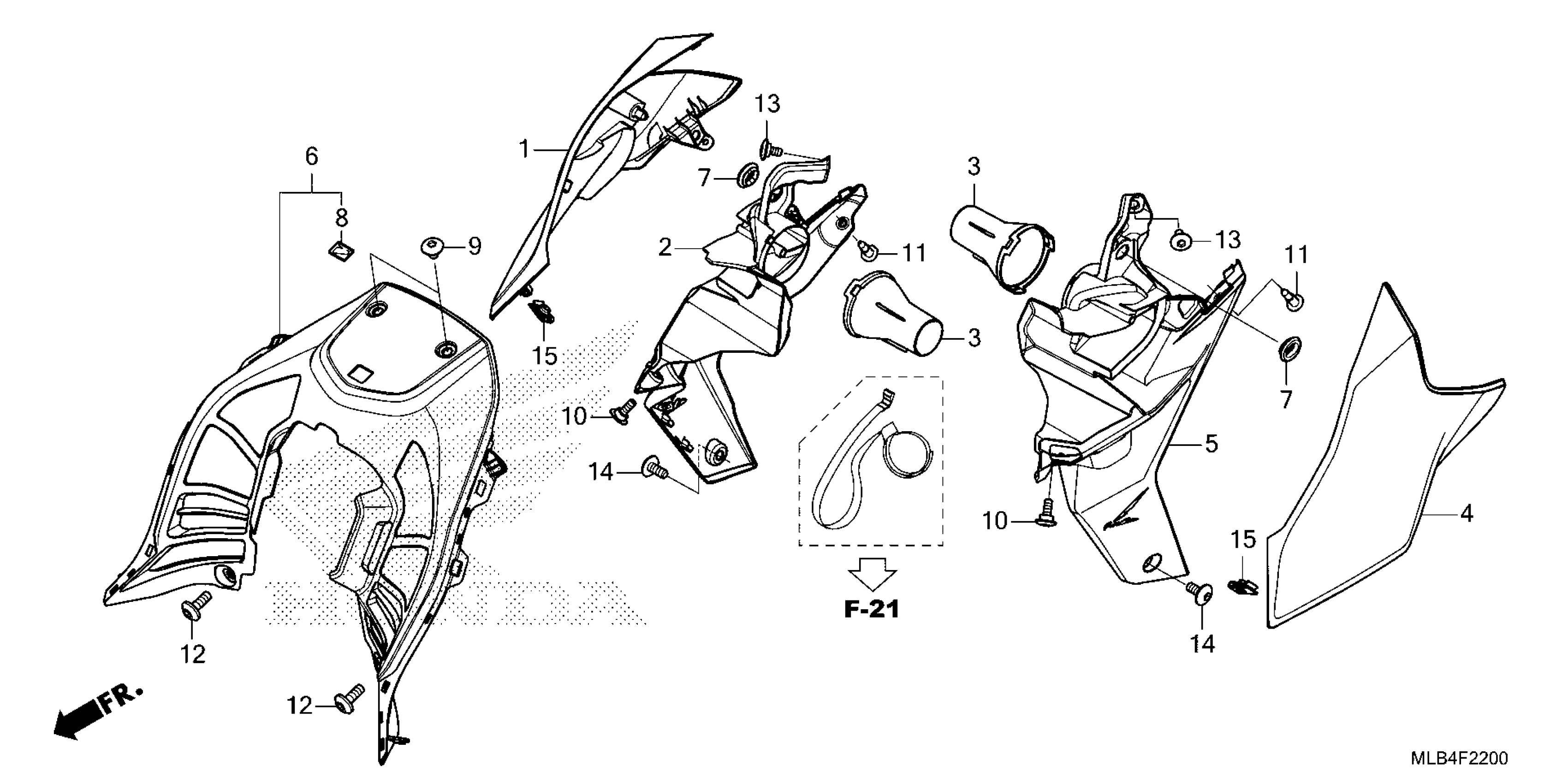

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 SHELTER@SHROUD Diagram

SHROUD SET A (TYPE4)

64300-MLB-G40ZD

$102.91

SHROUD B, R.

64336-MLB-D00

$21.76

JOINT, DUCT

64337-MLB-D00

$5.18

SHROUD SET A (TYPE4)

64400-MLB-G40ZD

$102.91

SHROUD B, L.

64436-MLB-D00

$20.45

SHELTER ASSY., FR.

83150-MLB-D00

$30.34

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

SCREW, PAN (6X8)

90105-GAG-000

$0.66

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.79

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

BOLT, SPECIAL (6X16)

90116-MJM-D40

$2.07

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.29

SCREW, PAN (6X14)

90125-MKN-D50

$1.24

NUT, CLIP (5MM)

90677-KAN-961

$3.89
