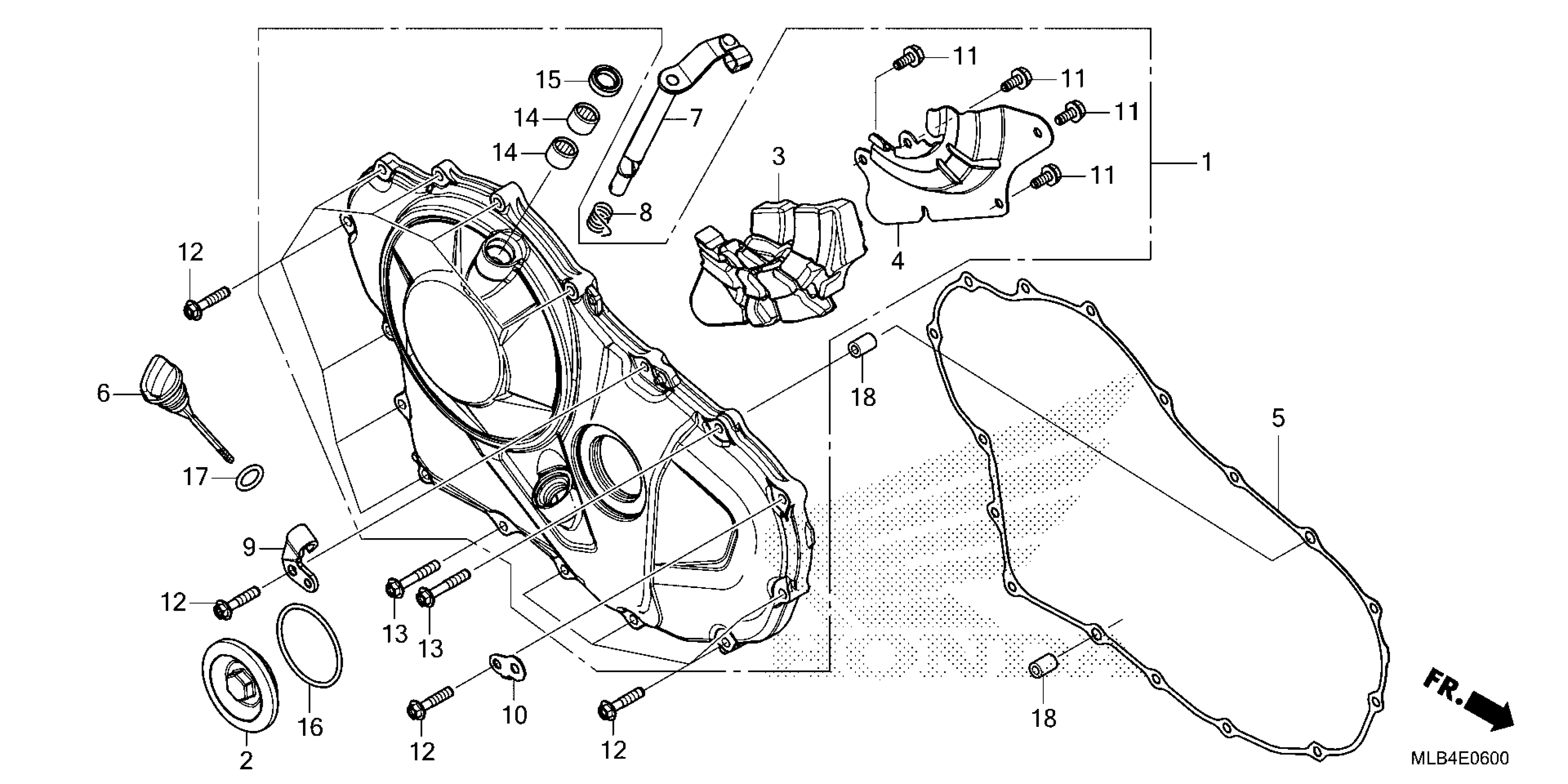

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 RIGHT CRANKCASE COVER Diagram

COVER COMP, R

11330-MLB-D00

$205.12

CAP (45MM)

11332-MGZ-J00

$20.30

RUBBER, R COVER

11334-MLB-D00

$16.69

PLATE

11336-MLB-D00

$12.82

GSKT, R CRANK COVER

11394-MLB-D01

$21.06

GAUGE, OIL LEVEL

15651-MLB-D00

$6.71

LEVER COMP, CLUTCH

22810-MLB-D00

$36.18

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.01

RECEIVER

22821-MLB-D00

$5.71

STAY, HARNESS CLIP

32157-MJM-D00

$4.25

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

BOLT, FLANGE (6X35) (S-NSHF)

90028-GHB-720

$1.01

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.08

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

O-RING (18X3)

91307-035-000

$2.75

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
