Description

Price

1

RUBBER, MOUNTING

19639-GBC-000

$1.29

2

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.78

3

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

4

TRAY, BLUETOOTH UNIT

38351-MLB-D20

$5.50

5

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.88

6

COLLAR A, FR. FENDER

61103-KRY-900

Unavailable

7

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

8

FENDER SET A (TYPE1)

80100-MLB-A20ZA

$82.18

9

BRACKET, FENDER A

80102-MJW-J00

$57.38

10

FENDER ASSY. B, RR.

80104-MLB-D00

$87.84

11

COVER, RR. FENDER

80106-MJW-J00

$6.59

12

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

13

BOLT, SPECIAL (10X16)

90115-MKP-J00

$1.68

14

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

15

BOLT, SPECIAL (6X16)

90116-MJM-D40

$2.07

16

SCREW, PAN (6X22)

90130-MKP-J00

$1.19

17

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

18

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

19

COLLAR, MOUNTING

90503-MJE-D40

$2.79

20

NUT, CLIP (5MM)

90677-KAN-961

$3.89

21

PLUG, HOLE

90852-KPP-T00

$1.49

22

SCREW, TAPPING (4X12)

93903-24380

Unavailable

23

SCREW, TAPPING (5X12)

93903-25280

$1.25

24

NUT, FLANGE (6MM)

94050-06000

$0.60

25

WASHER, PLAIN (6MM)

94103-06800

$0.72

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.50

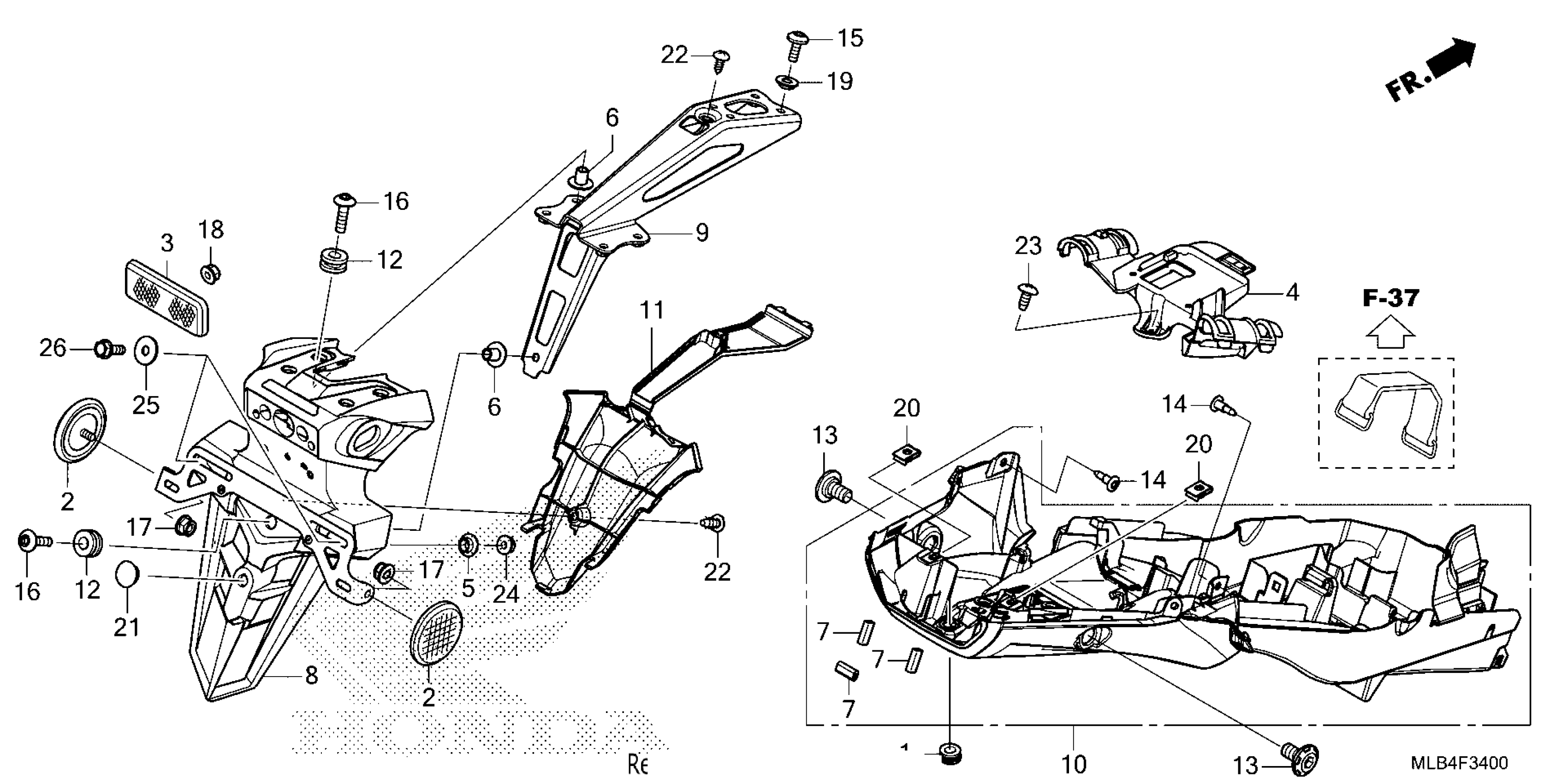

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 REAR FENDER Diagram
