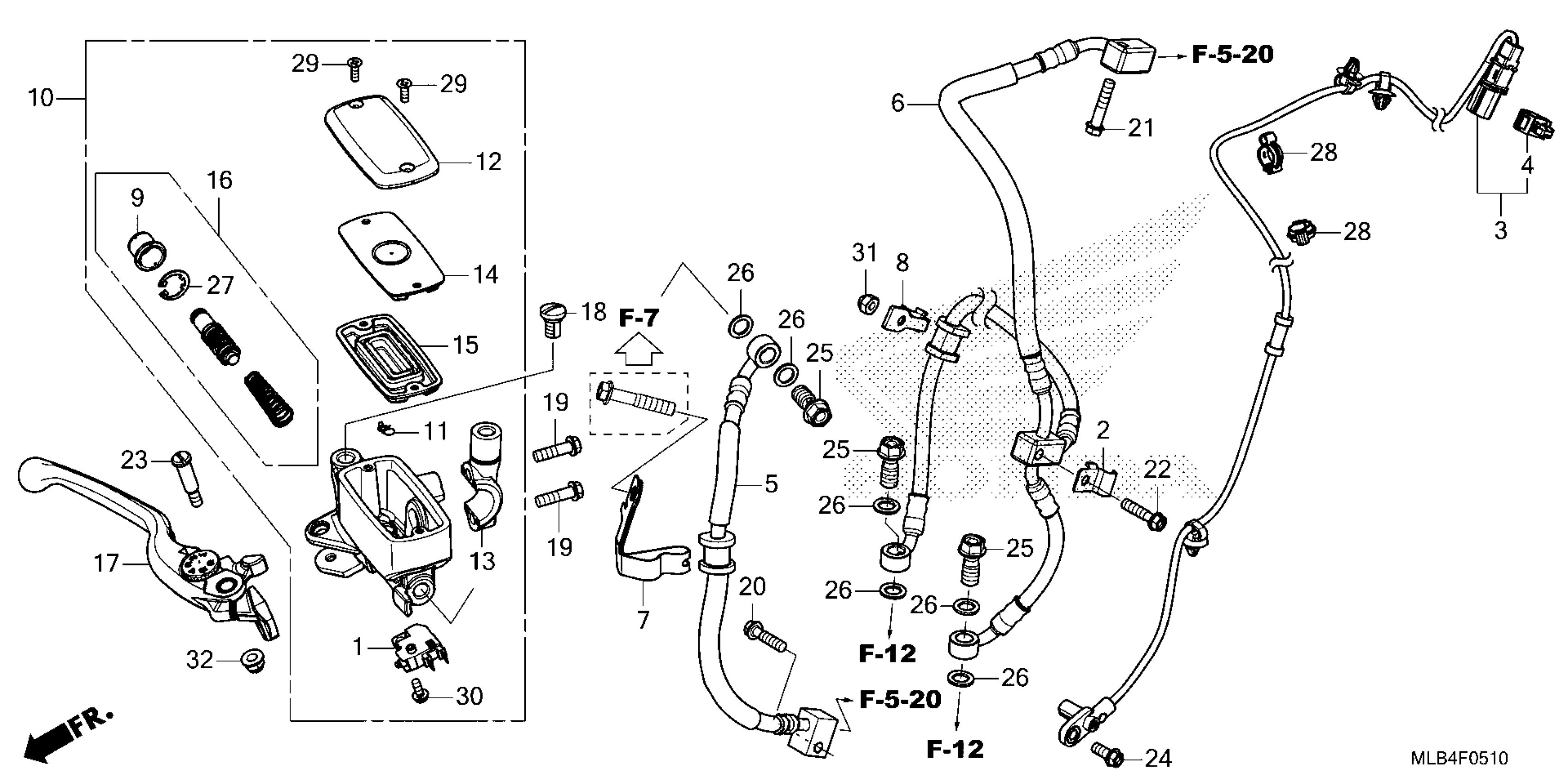

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.85

SENSOR, FR. SPEED

38520-MLB-D01

$65.07

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$3.00

HOSE A, FR. BRAKE

45125-MLB-D01

$35.94

HOSE D, FR. BRAKE

45128-MLB-D01

$96.52

CLAMP C, FR.

45157-MKP-DP0

$4.82

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.64

BOOT

45504-410-003

$12.16

M/CYL SUB-ASSY, FR.

45510-MLB-D01

$181.44

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MIRROR

45517-KFR-861

$12.43

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER ASSY., R. HANDLE

53170-MKK-D01

$50.87

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

BOLT, FLANGE (6X25)

90021-GHB-680

$2.26

BOLT, FLANGE (6X30)

90105-MEJ-D00

$1.85

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.31

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

CLIP, CABLE (12MM)

90690-MGS-D81

$2.23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62

NUT, FLANGE (6MM)

94050-06000

$1.49
