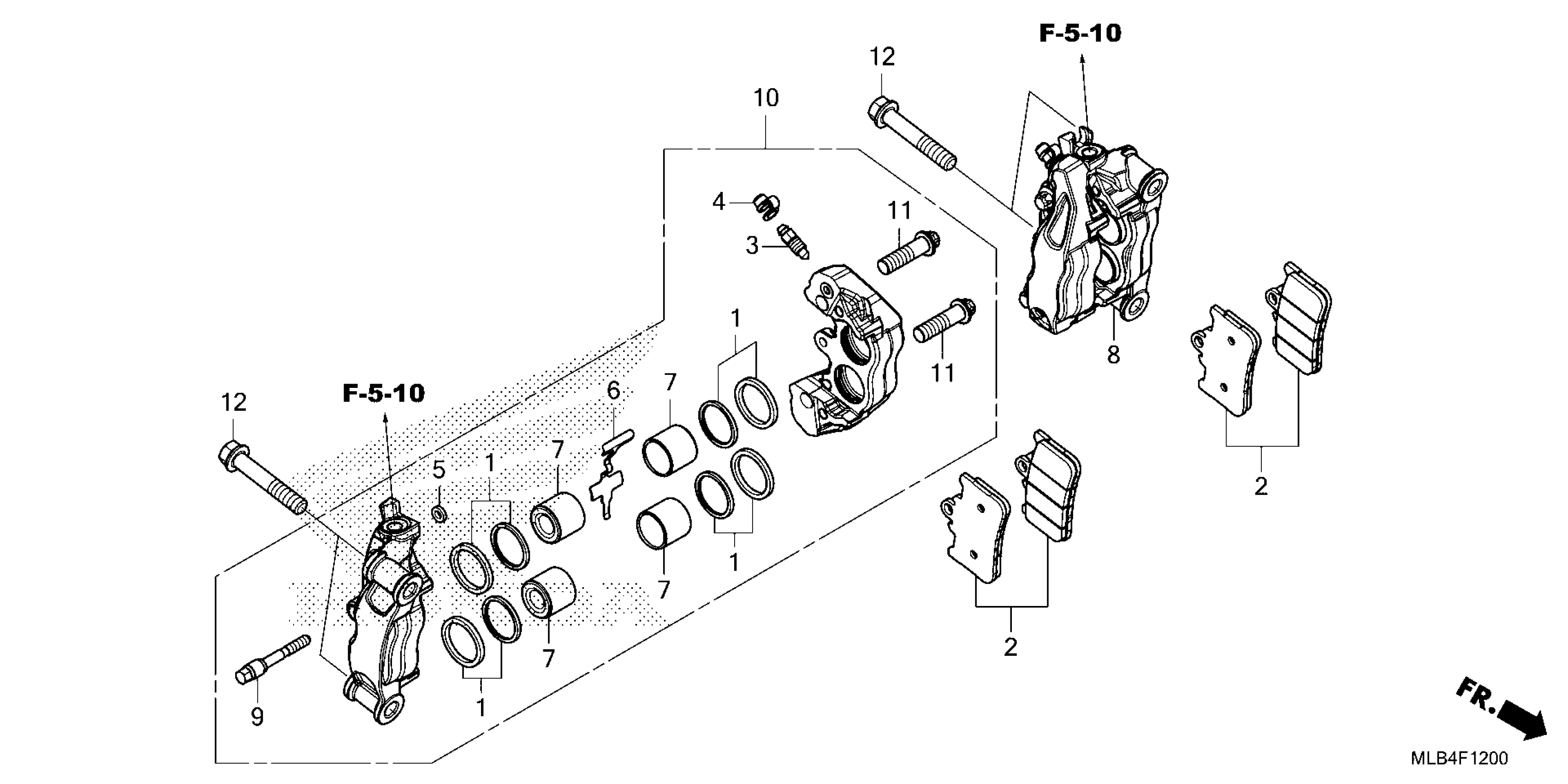

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

2

PAD SET, FR.

06455-MKP-DN1

$57.17

3

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

4

CAP, BLEEDER

43353-461-771

Unavailable

5

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

6

SPRING, PAD

45106-MKP-DN1

$9.99

7

PISTON A

45107-MKP-DN1

$12.78

8

CALIPER SUB-ASSY.

45150-MKP-DN1

$198.04

9

PIN, HANGER

45215-MKP-DN1

$5.34

10

CALIPER SUB-ASSY.

45250-MKP-DN1

$197.79

11

BOLT, TORX (10X36)

90104-MKP-DN1

$3.10

12

BOLT, FLANGE (10X55)

90131-MKP-DN0

$2.79
