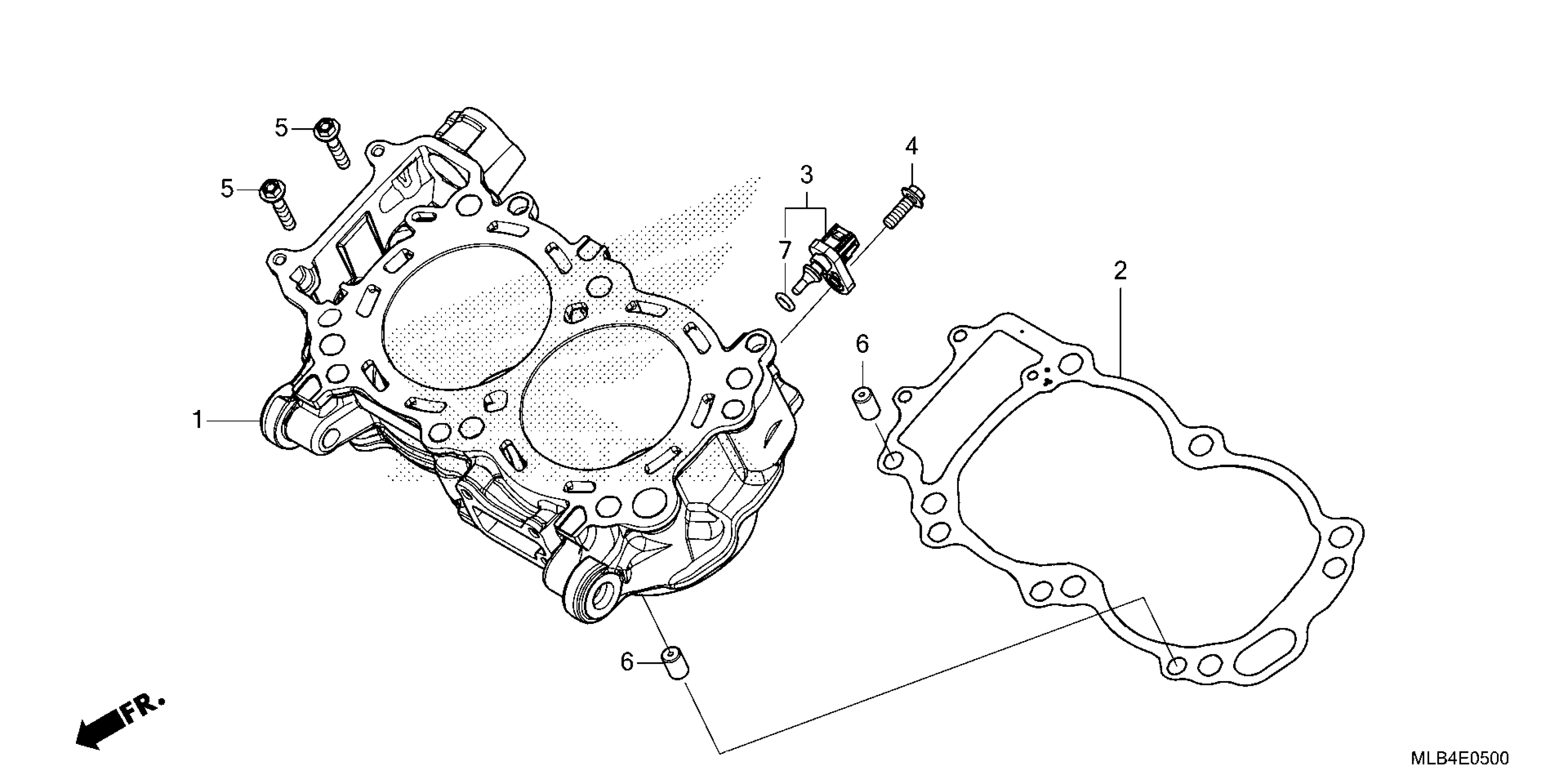

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-MLB-D00

$734.54

2

GASKET, CYLINDER

12191-MLB-D01

$18.76

3

SENSOR ASSY., WATER TEMPERATURE

37870-K1N-V01

$4.37

4

BOLT, FLANGE (6X18)

90026-GHB-650

$2.06

5

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

6

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

7

O-RING

91304-K1N-V01

$24.66
