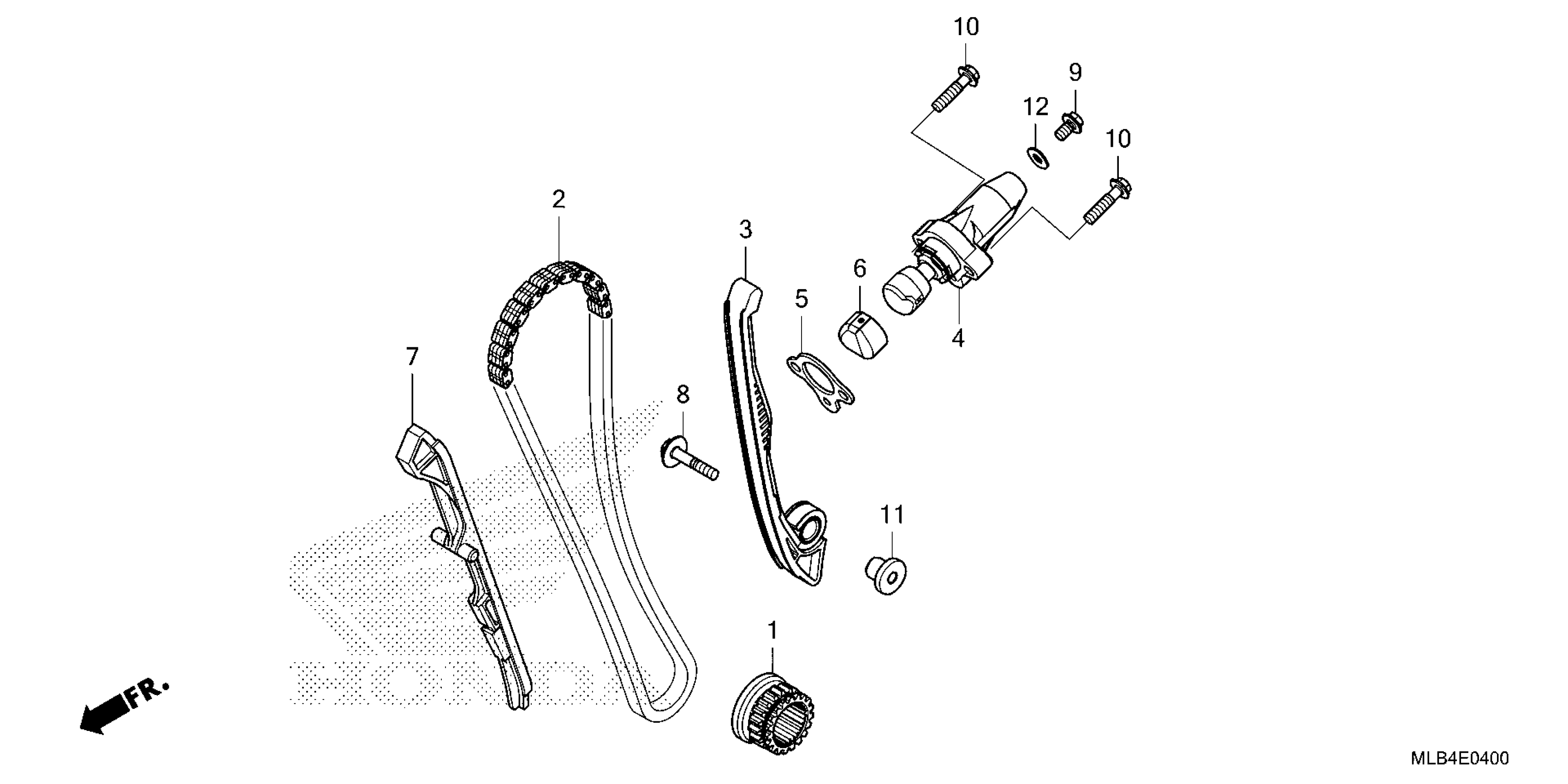

Honda CB750A3AC (25) MOTORCYCLE, JPN, VIN# JH2RH240-SK000001 TO JH2RH240-SK099999 CAM CHAIN@TENSIONER Diagram

SPROCKET, TIMING

14311-MLB-D00

$35.93

CHAIN (SCH-0411L)

14401-MLB-D01

$62.34

TENSIONER COMP

14510-MLB-D00

$61.31

LIFTER, TENSIONER

14520-MLB-D01

$78.49

GASKET, TENSIONER HOLE

14523-HL4-003

$3.13

CAP, LIFTER PAT

14524-MBB-000

$7.36

GUIDE A, CAM CHAIN

14611-MLB-D00

$35.60

PIVOT, CAM CHAIN TENSIONER

90022-MFJ-D00

$2.07

BOLT, FLANGE (6X10)

90028-GHB-610

$1.78

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.01

COLLAR, CAM CN TN

90401-MLB-D00

$6.29

WASHER, SEALING (6MM)

90442-397-000

$2.60
