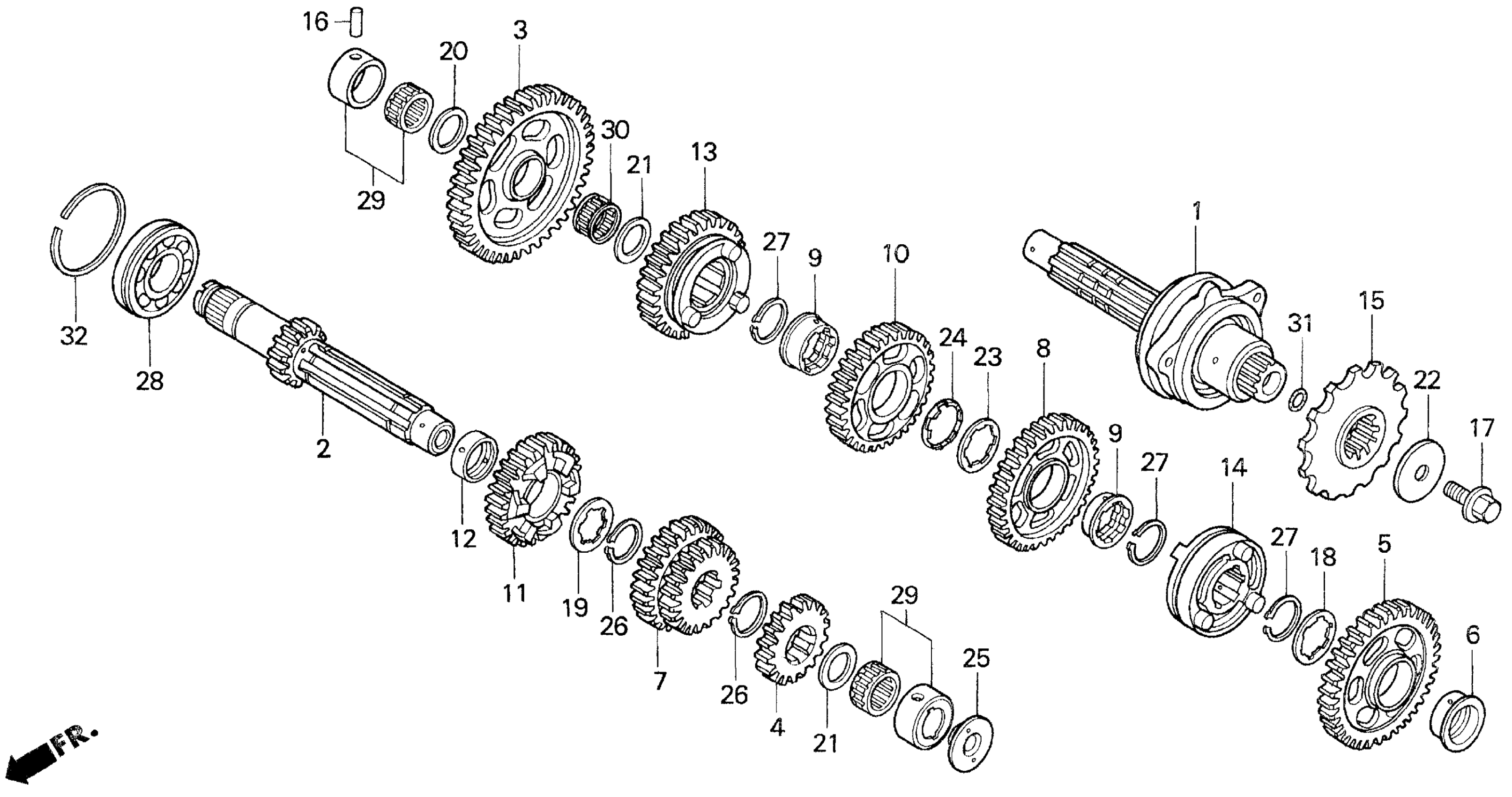

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 TRANSMISSION Diagram

COUNTERSHAFT

23200-MJ0-010

$434.56

MAINSHAFT (14T)

23210-MW3-670

Unavailable

GEAR, COUNTERSHAFT LOW (42T)

23421-MJ0-000

$173.89

GEAR, MAINSHAFT SECOND (18T)

23431-MW3-670

$71.87

GEAR, COUNTERSHAFT SECOND (37T)

23441-MW3-670

$178.75

COLLAR (25MM)

23442-MJ0-000

$23.61

GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)

23451-MW3-670

$233.95

GEAR, COUNTERSHAFT THIRD (34T)

23461-MW3-670

Unavailable

COLLAR, SPLINE (28X11.6)

23462-MJ0-000

$23.61

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MW3-670

Unavailable

GEAR, MAINSHAFT FIFTH (27T)

23491-MW3-670

$196.95

COLLAR (25X12)

23495-MB0-000

$26.23

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MW3-670

Unavailable

SHIFTER, GEAR

23521-MW3-670

$191.62

SPROCKET, DRIVE (15T) This part replaces 23801-MW3-670.

23801-MW3-700

$81.38

SPROCKET, DRIVE (15T)

23801-MW3-700

$81.38

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, THRUST (28MM)

90451-422-000

$8.36

WASHER, THRUST (25X34)

90452-371-000

$4.82

WASHER, THRUST (20X1.05)

90453-MB0-770

$5.36

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, THRUST (29MM)

90461-MB2-000

$6.46

WASHER, LOCK (28MM)

90462-MB2-000

$5.84

PLATE, ORIFICE

90558-MJ0-000

$6.11

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

BEARING, RADIAL BALL (6305)

91004-MG5-671

Unavailable

BEARING, BALL (6305) (NACHI)

91004-657-008

$54.92

BEARING, RADIAL BALL (6305) This part replaces 91004-689-000.

91004-MG5-671

Unavailable

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

BEARING, NEEDLE (20X24X11)

91026-MN0-003

$27.66

O-RING (9.8X2.4)

91305-422-000

$2.47

RING, SNAP (62MM)

94560-62200

$3.31
