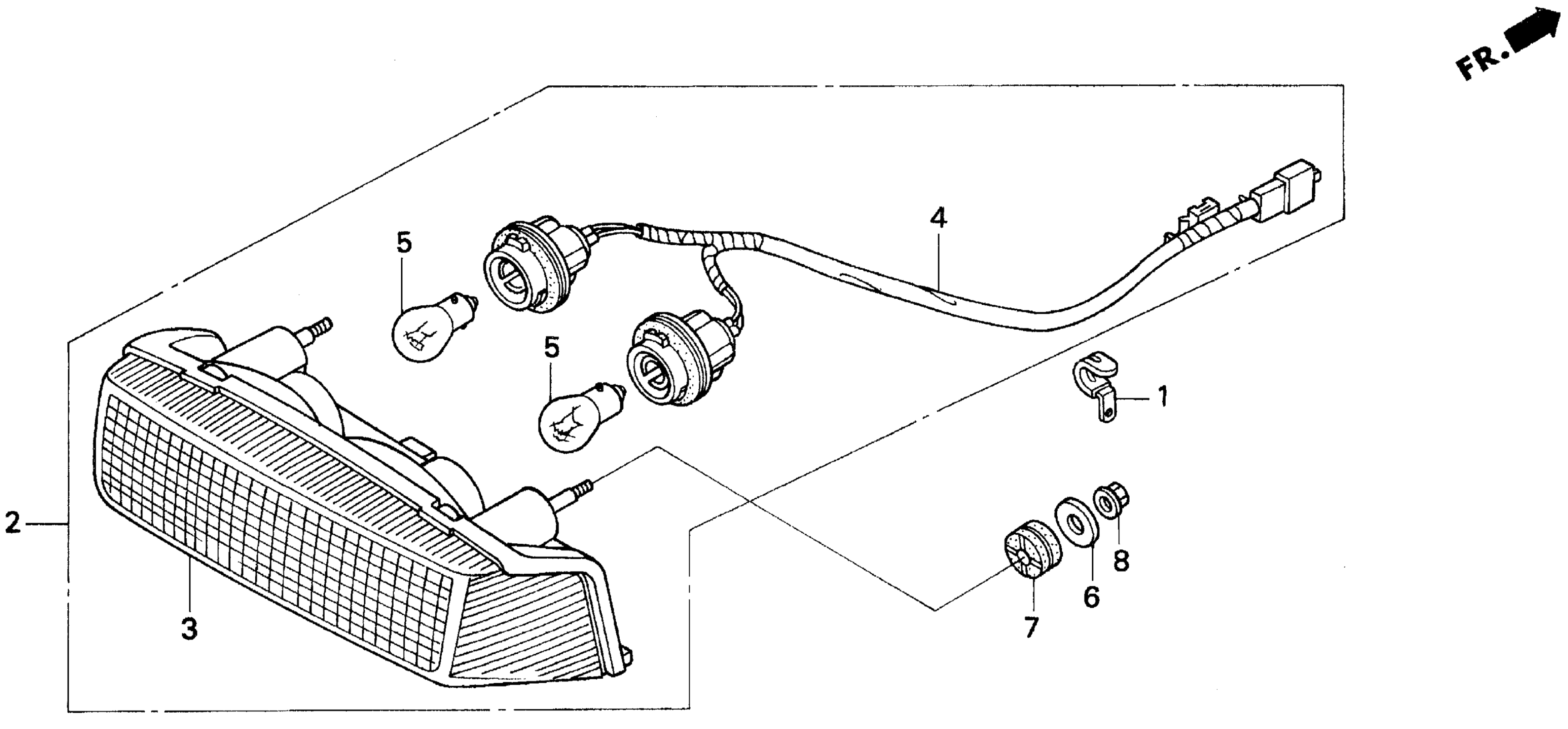

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 TAILLIGHT Diagram

#

Description

Price

1

CLIP, PULSER WIRE

32925-958-000

$2.76

3

TAILLIGHT SUB-ASSY. (12V 32/3CP)

33706-MW3-671

Unavailable

4

SOCKET, TAILLIGHT

33708-MW3-671

Unavailable

5

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$3.95

5

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$3.95

6

WASHER, SEAT SETTING

77302-124-000

$3.08

7

RUBBER, NUMBER BRACKET

84703-KR3-000

$5.49

8

NUT, FLANGE (6MM)

94050-06000

$0.60
