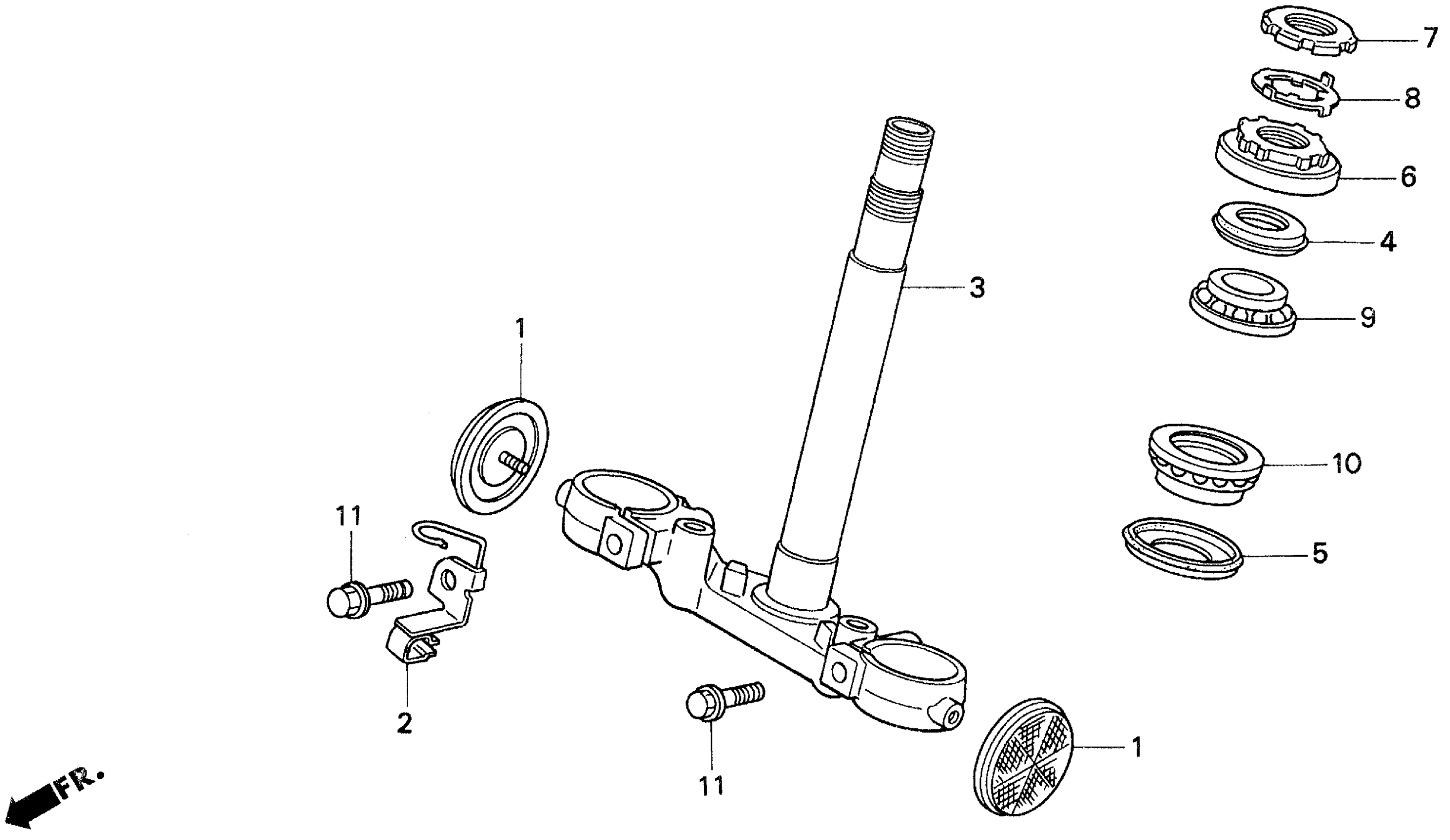

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 STEERING STEM Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$11.82

2

CLAMP A, BRAKE HOSE

45156-MW3-670

Unavailable

3

STEM SUB-ASSY., STEERING This part replaces 53200-MW3-671.

53219-MCN-A20

Unavailable

3

STEM SUB-ASSY., STEERING

53219-MCN-A20

Unavailable

4

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$10.81

5

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

6

THREAD, STEERING HEAD TOP

53220-422-000

$29.39

7

THREAD B, STEERING HEAD TOP

90302-425-830

$19.51

8

WASHER, LOCK

90506-425-830

$6.56

9

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$31.88

10

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$31.88

11

BOLT, FLANGE (10X35)

95701-10035-07

$1.83
