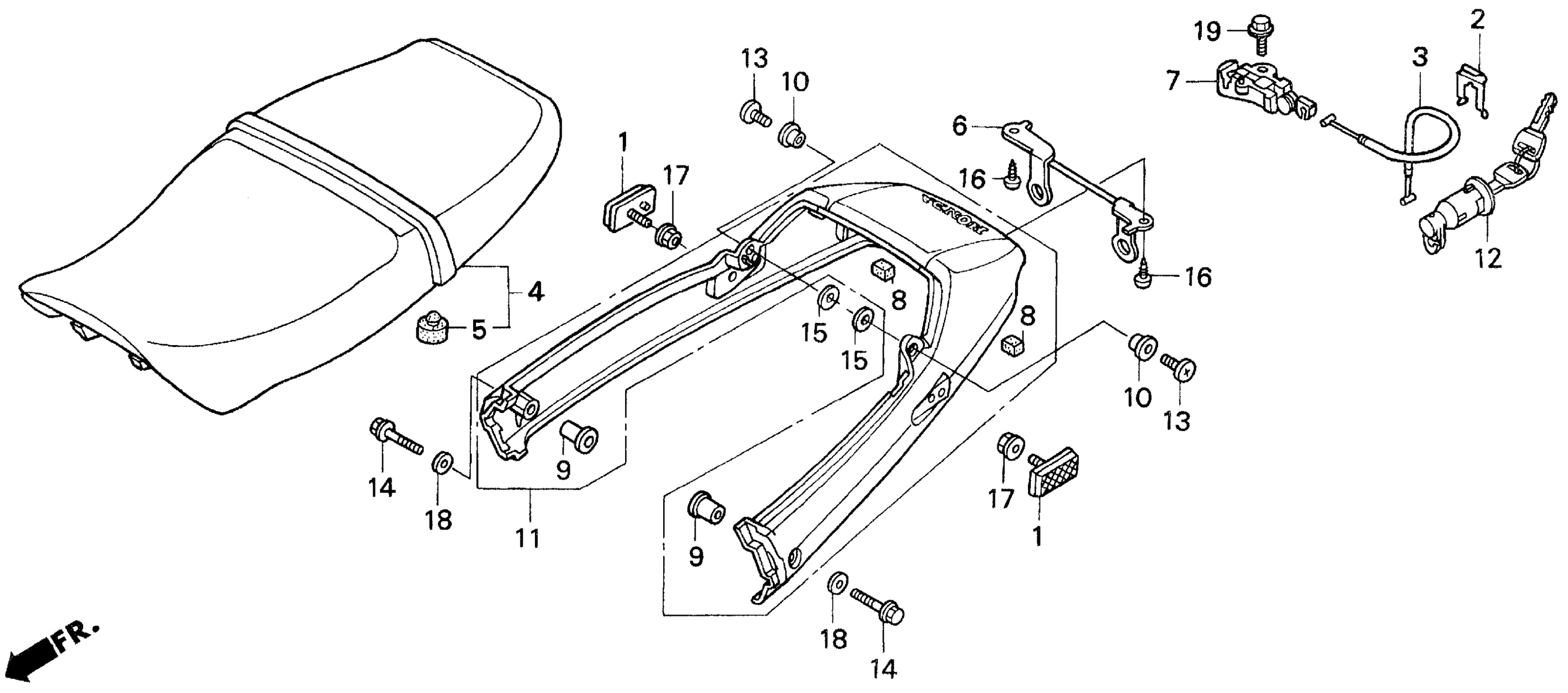

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 SEAT Diagram

#

Description
Price

1

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

2

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

3

CABLE, SEAT LOCK

77156-MW3-670

Unavailable

4

SEAT ASSY., DOUBLE

77200-MW3-670

Unavailable

5

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

6

STAY, TAILLIGHT

77210-MW3-670

$28.75

7

HOOK, SEAT CATCH This part replaces 77220-KY6-000.

77220-KY6-010

$29.16

8

RUBBER

77221-MW3-670

Unavailable

9

COLLAR, RR. COWL SETTING

77222-MW3-670

Unavailable

10

COLLAR, RR. COWL SETTING

77223-MW3-670

$3.47

11

COWL SET, RR. (TYPE5) (WL)

77230-MW3-A40ZA

Unavailable

12

KEY, SEAT LOCK

77239-MS9-000

Unavailable

13

SCREW, RR. COWL SETTING (8X20)

90091-MW3-670

$8.78

14

BOLT, SPECIAL FLANGE (10X50)

90158-438-000

$7.63

15

WASHER, PLAIN (8MM)

90501-399-880

$2.45

16

SCREW, TAPPING (5X12)

93903-25210

$1.49

17

NUT, FLANGE (5MM)

94050-05000

$1.49

18

WASHER, PLAIN (10MM)

94101-10200

$1.49

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
