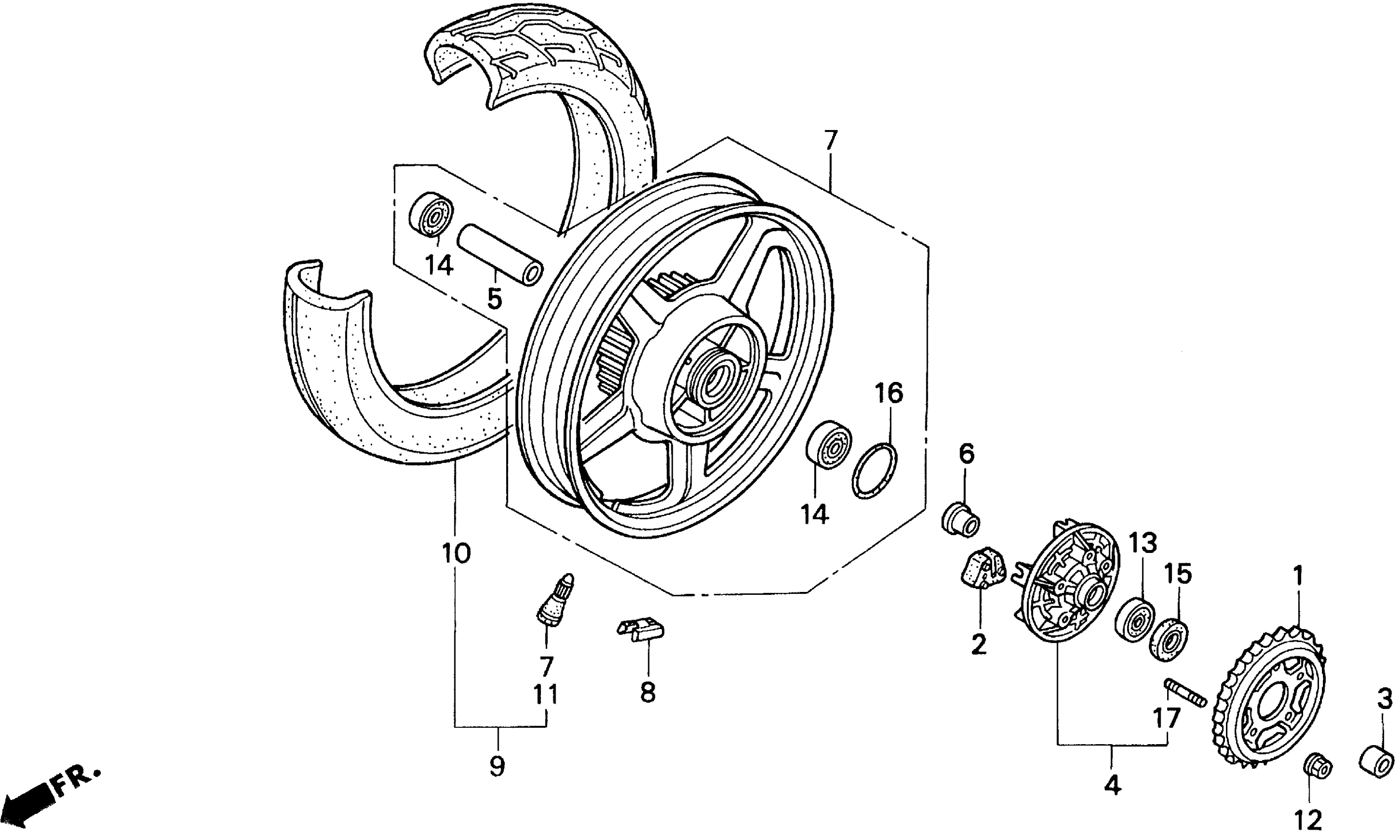

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (38T)

41200-MW3-A20

Unavailable

2

DAMPER, RR. WHEEL

41241-MA6-000

$17.42

3

COLLAR, RR. WHEEL SIDE

42312-MW3-670

Unavailable

4

FLANGE, FINAL DRIVEN

42610-MW3-670

Unavailable

5

COLLAR, RR. AXLE DISTANCE

42620-MW3-670

Unavailable

6

COLLAR B, RR. AXLE DISTANCE

42625-MA6-000

Unavailable

7

WHEEL SET, RR.

42650-MW3-305

Unavailable

8

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

8

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

8

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

8

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

8

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

8

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

10

TIRE, RR. (140/70-17) (M/C 66H K505) (DUNLOP) This part replaces 42711-KAF-014.

42711-MY9-754

$189.12

10

TIRE, RR. (140/70-17) (M/C 66H K505) (DUNLOP) This part replaces 42711-KAF-024.

42711-MY9-754

$189.12

10

TIRE, RR. (140/70-17) (66H K505) (DUNLOP)

42711-MY9-754

$189.12

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

12

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

13

BEARING, RADIAL BALL (6204UU) (NSK)

91052-MM5-003

$33.97

14

BEARING, RADIAL BALL (6303)

91051-KS4-003

$38.31

14

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32

14

BEARING, RADIAL BALL (6303) This part replaces 91054-MT6-832.

91051-KS4-003

$38.31

15

DUST SEAL (30X47.2X7)

91251-MW3-671

Unavailable

16

O-RING (61X2)

91302-MA6-003

$5.17

17

BOLT, STUD (12X28)

92900-12028-0E

Unavailable
