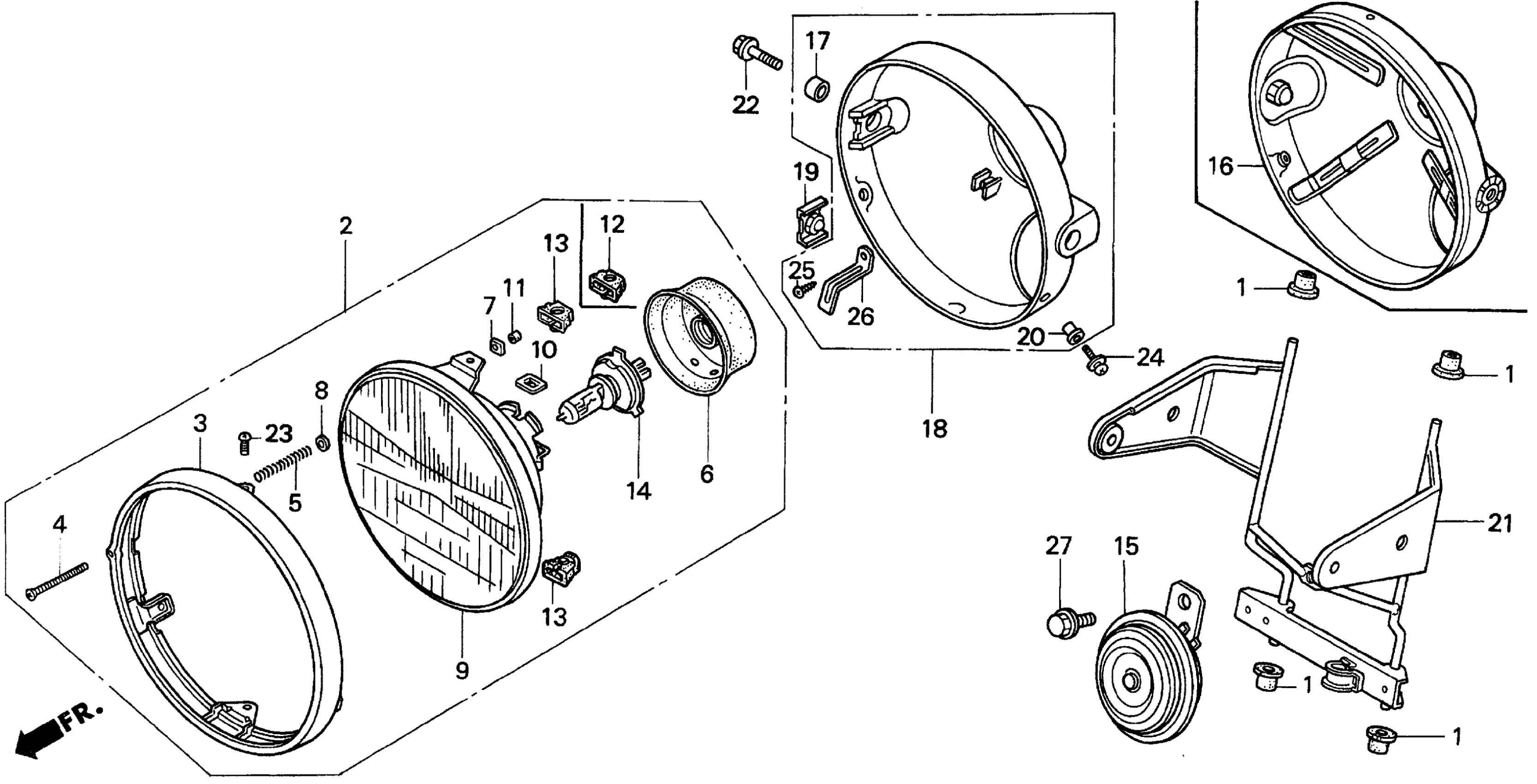

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.47

2

HEADLIGHT ASSY. (12V 60/55W) (STANLEY) This part replaces 33100-MN8-033.

33100-MN8-053

Unavailable

2

HEADLIGHT ASSY. (12V 60/55W) (STANLEY) This part replaces 33100-MN8-043.

33100-MN8-053

Unavailable

2

HEADLIGHT ASSY. (12V 60/55W) (STANLEY)

33100-MN8-053

Unavailable

3

RIM, HEADLIGHT

33101-405-671

$71.39

4

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-MZ1-791

$3.82

6

COVER, RUBBER

33112-MM9-013

$10.09

7

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.39

8

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

9

HEADLIGHT UNIT (KOITO) This part replaces 33120-KV0-701.

33120-KV0-703

Unavailable

9

HEADLIGHT UNIT (KOITO)

33120-KV0-703

Unavailable

10

NUT, UNIT HOLDER

33128-292-670

$2.94

11

COVER, SCREW

33136-426-830

$1.89

12

COVER, BEAM ADJUSTING PIVOT (STANLEY)

33137-KV0-700

Unavailable

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

15

HORN (HIGH)

38110-MR5-871

Unavailable

16

CASE, HEADLIGHT

61301-KN8-000

Unavailable

21

STAY, HEADLIGHT

61311-MW3-A20

Unavailable

22

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.65

23

SCREW, PAN (5X8)

93500-05008-0H

$1.49

24

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.94

27

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
