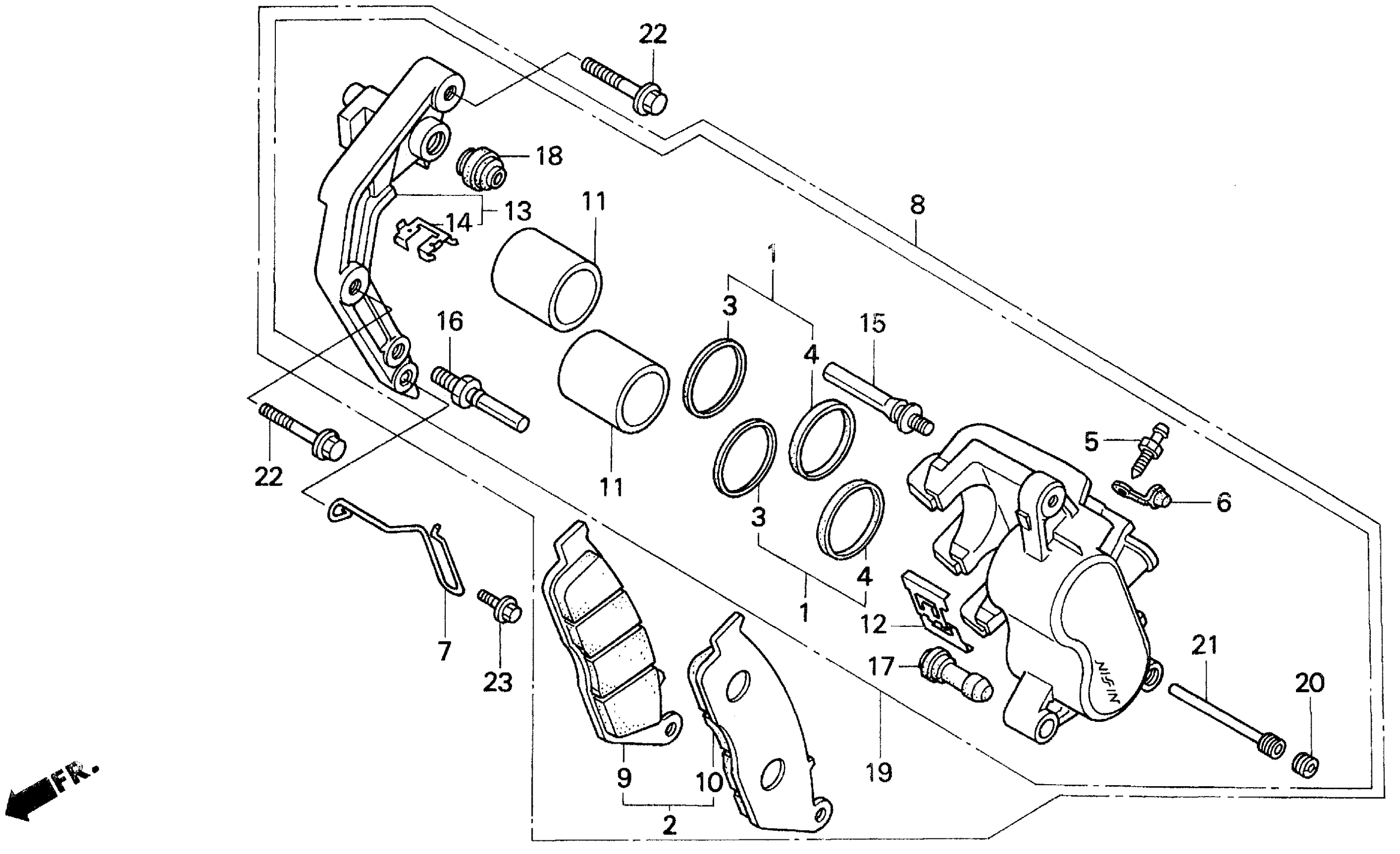

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$6.82

PAD SET This part replaces 06455-MW3-405.

06455-MW3-415

$37.33

PAD SET

06455-MW3-415

$37.33

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$8.81

PISTON

45107-ML4-006

$34.00

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

BRACKET, L.

45110-MAL-601

Unavailable

RETAINER

45112-ML7-921

$5.07

BOLT A, PIN

45131-ML7-921

$13.86

BOLT, PIN

45131-166-016

$7.10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER SUB-ASSY., L. FR. BRAKE

45150-MW3-A41

Unavailable

PLUG, PIN

45203-MG3-016

$4.76

PIN, HANGER

43215-ML3-911

$10.49

BOLT, FLANGE (8X32)

90131-KBV-003

$4.43

BOLT, FLANGE (6X12)

90154-ML0-000

$2.33
