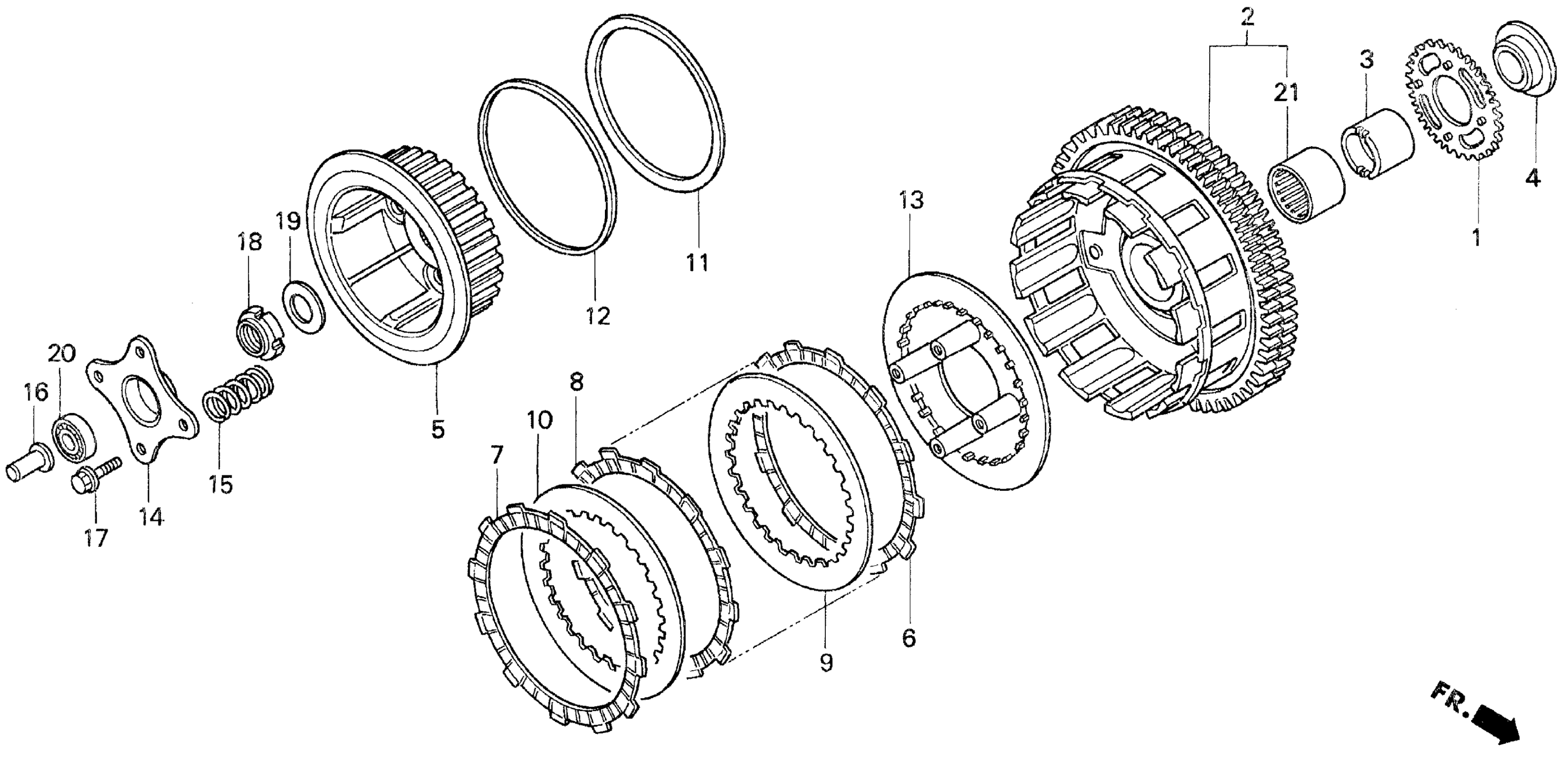

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 CLUTCH Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE (37T)

15131-MJ0-000

$62.59

2

CLUTCH (OUTER)

22100-MW3-J00

$610.61

3

GUIDE, CLUTCH (OUTER)

22116-MJ0-000

$35.56

4

COLLAR, OIL PUMP DRIVE GEAR

22117-MJ0-000

$21.33

5

CENTER, CLUTCH

22120-MW3-670

Unavailable

6

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

7

DISK, CLUTCH FRICTION

22201-MA7-000

$15.90

8

DISK, CLUTCH FRICTION

22201-MW3-960

$14.76

9

PLATE, CLUTCH This part replaces 22321-MN4-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH This part replaces 22321-374-000.

22321-GHB-811

$12.02

10

PLATE B, CLUTCH

22322-MN4-000

$16.72

11

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

12

SEAT, JUDDER SPRING

22326-MN4-000

Unavailable

13

PLATE, CLUTCH PRESSURE

22350-MN4-000

Unavailable

14

PLATE, CLUTCH LIFTER

22361-MW3-670

Unavailable

15

SPRING, CLUTCH

22401-MN4-000

$5.51

16

ROD, CLUTCH LIFTER

22847-MW3-670

$9.56

17

BOLT, FLANGE (6X25)

90008-KT7-000

$3.14

18

NUT, LOCK (22MM) This part replaces 90231-MK7-670.

90231-MZ7-000

$11.54

19

WASHER, SPRING (22MM)

90432-MM5-000

$8.52

20

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

21

BEARING, NEEDLE (35X42X30)

91024-MW3-671

$103.98
