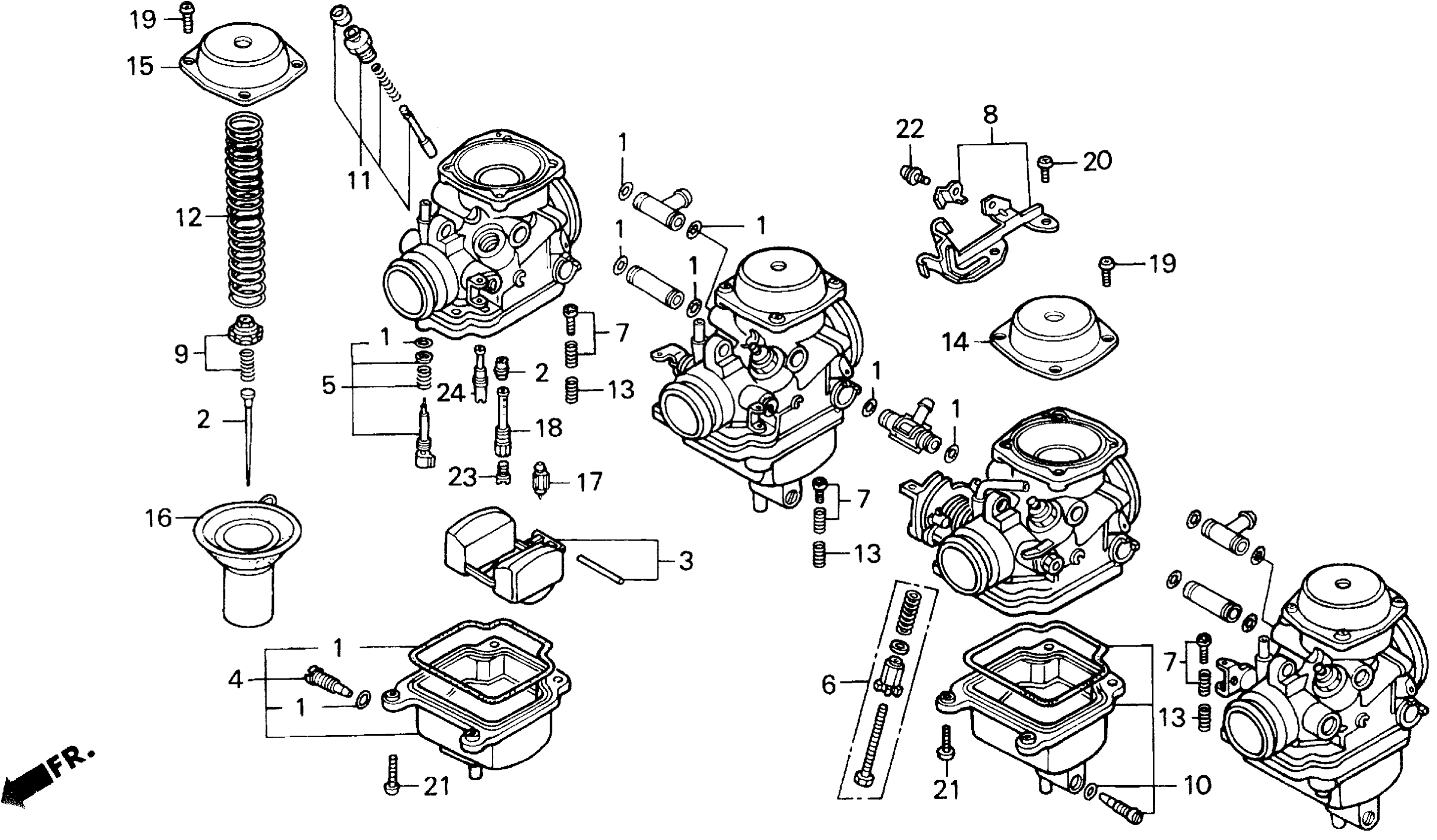

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MA6-013.

16010-MA6-305

$58.13

1

GASKET SET

16010-MA6-305

$58.13

2

NEEDLE SET, JET

16012-MW3-670

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT This part replaces 16015-MJ1-672.

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MW3-R00.

16015-MW3-A90

Unavailable

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

6

SCREW SET This part replaces 16028-MJ0-601.

16028-MJ0-602

Unavailable

7

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

8

PLATE SET, STAY

16035-ME5-671

$92.66

9

PLATE SET, VALVE

16037-ME5-671

$29.52

10

CHAMBER SET, FLOAT This part replaces 16045-MJ1-672.

16015-KFG-000

$120.31

10

CHAMBER SET, FLOAT This part replaces 16045-MW3-A90.

16015-KFG-000

$120.31

10

CHAMBER SET, FLOAT This part replaces 16045-MW3-R00.

16015-KFG-000

$120.31

11

VALVE SET, STARTER This part replaces 16046-ME5-671.

16046-ME5-672

$63.09

11

VALVE SET, STARTER This part replaces 16046-MM2-671.

16046-ME5-672

$63.09

12

SPRING, COMPRESSION COIL

16051-MW3-680

Unavailable

13

SPRING

16052-ME9-672

$5.67

14

TOP This part replaces 16107-ME5-671.

16108-MJ1-671

$40.50

14

TOP

16108-MJ1-671

$40.50

15

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$40.50

15

TOP

16108-MJ1-671

$40.50

16

PISTON, VACUUM

16111-MW3-670

$221.80

17

VALVE, FLOAT

16155-413-751

$32.50

18

HOLDER, NEEDLE JET

16165-417-004

$24.74

19

SCREW, PAN (4X8)

93500-04008-0A

$1.49

19

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

20

SCREW, PAN (4X10)

93500-04010-0A

$1.49

20

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

21

SCREW, PAN (4X14)

93500-04014-0A

$1.49

21

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$1.49

22

SCREW-WASHER (4X12)

93892-04012-00

$1.49

22

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

23

JET (#112)

99101-GHB-1120

$7.98

23

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

24

JET, SLOW (#35) This part replaces 99103-MT3-0350.

99103-MT2-0350

$14.84
