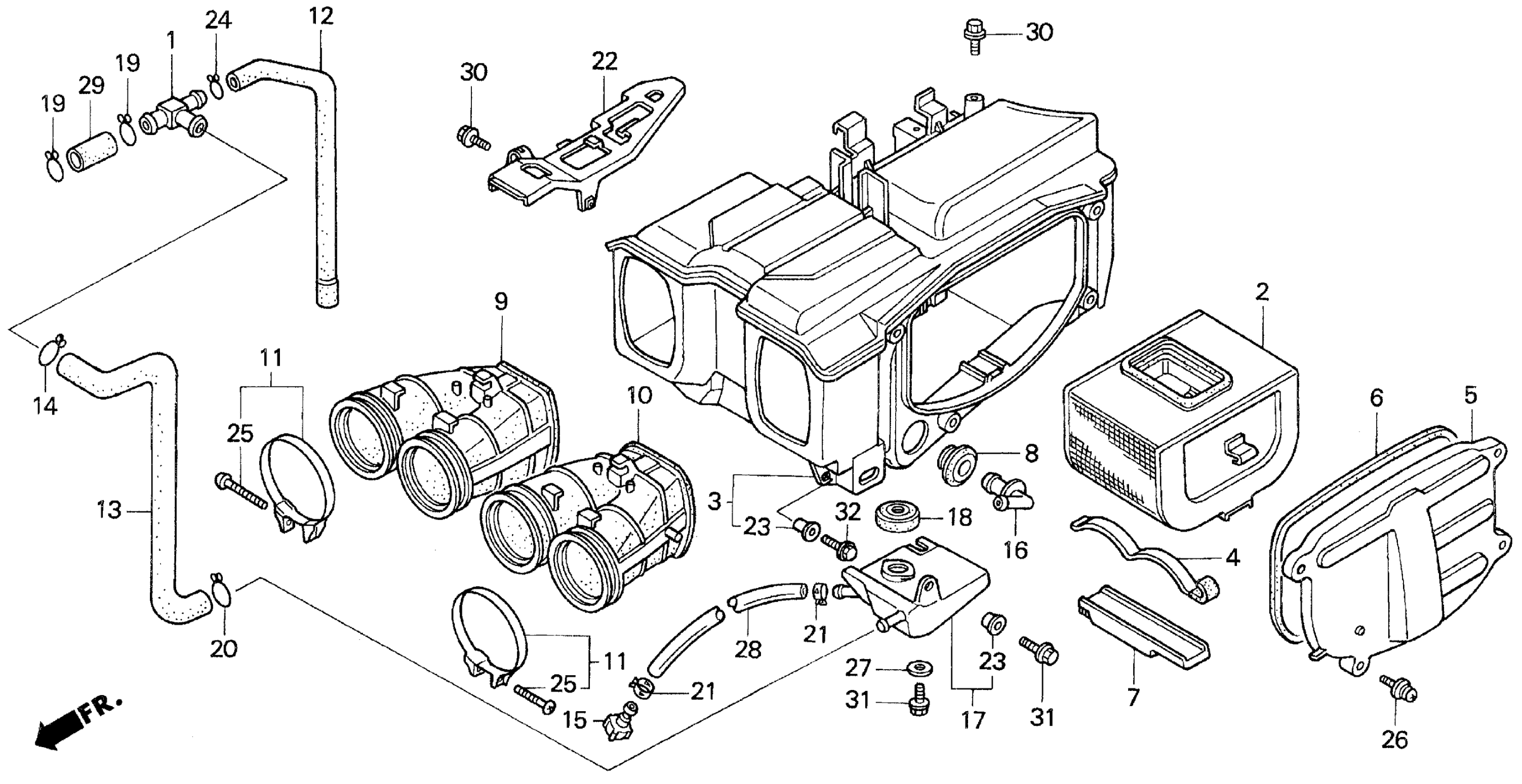

Honda CB750A (99) MOTORCYCLE, JPN, VIN# JH2RC380-XM700001 AIR CLEANER Diagram

#

Description
Price

1

JOINT B (THREE-WAY)

17163-MN5-000

Unavailable

2

ELEMENT, AIR CLEANER

17211-MJ0-950

$29.82

3

HOUSING, AIR CLEANER

17215-MW3-670

Unavailable

4

SPRING, AIR CLEANER ELEMENT

17216-MJ0-000

Unavailable

5

COVER, AIR CLEANER HOUSING

17217-MJ0-000

Unavailable

6

SEAL, AIR CLEANER COVER

17219-MJ1-000

Unavailable

7

GUIDE, AIR CLEANER HOUSING

17220-MJ0-000

$11.49

9

TUBE, R. AIR CLEANER CONNECTING

17253-MJ0-920

Unavailable

10

TUBE, L. AIR CLEANER CONNECTING

17254-MJ0-920

Unavailable

11

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

12

TUBE A, BREATHER

17355-MW3-670

Unavailable

13

TUBE C, BREATHER

17357-MW3-670

Unavailable

14

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

15

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

TANK, STORAGE

17551-MJ0-000

Unavailable

18

GROMMET, STORAGE TANK

17552-MA1-000

$10.26

19

CLIP, SUB-TANK HOSE

17724-MN1-670

$3.15

20

CLIP, AIR HOSE (16MM)

18534-634-670

$5.76

21

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

22

STAY, BATTERY SUPPORT

50365-MJ0-000

Unavailable

23

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

24

CLIP, TUBE (B14)

90654-MK3-780

$2.74

25

SCREW, PAN (4X25)

93500-04025-0G

$1.49

26

SCREW-WASHER (5X12)

93893-05012-07

$1.49

27

WASHER, PLAIN (6MM)

94103-06700

$1.49

28

BULK HOSE, VINYL (7X11X8000) (7X11X380)

95003-19008-60M

Unavailable

29

BULK HOSE, VACUUM (12X1000) (12X50)

95005-12001-10M

$61.17

30

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

31

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

32

BOLT, FLANGE (6X18)

95701-06018-07

$1.55
