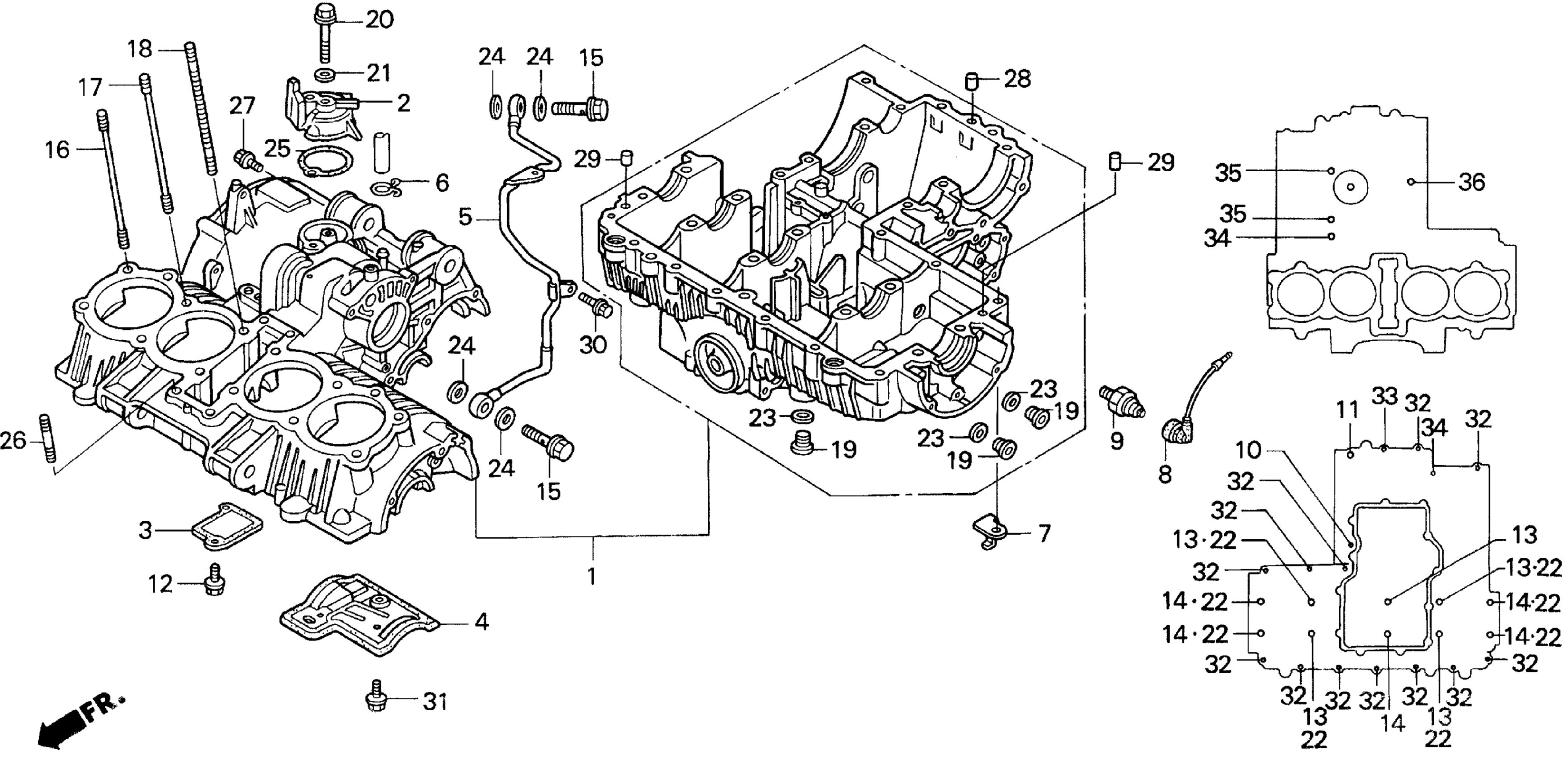

Honda CB750A (98) NIGHTHAWK 750, JPN, VIN# JH2RC380-WM600001 CRANKCASE Diagram

CRANKCASE SET

11000-MW3-G30

Unavailable

COVER, AIR SEPARATOR

11106-MJ0-952

$29.93

PLATE This part replaces 11108-MW3-600.

11108-MW3-601

$10.70

PLATE, BREATHER

11110-MJ1-770

Unavailable

PIPE A, OIL FEED

15521-MJ0-030

Unavailable

CLIP, AIR HOSE (16MM)

18534-634-670

$5.76

CLAMP, PULSER WIRE (B)

30302-MJ0-000

Unavailable

SUB-CABLE, OIL PRESSURE SWITCH

32103-MW3-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

BOLT, FLANGE (6X125)

90004-MJ0-000

$3.15

BOLT, FLANGE (8X70) This part replaces 90005-MJ0-000.

95701-08070-07

$1.49

BOLT, FLANGE SOCKET (6X14)

90031-MW3-600

Unavailable

BOLT, FLANGE (8X120)

90023-MW3-600

$9.30

BOLT, FLANGE (8X88)

90024-MV9-670

$7.49

BOLT, FLANGE (10X30)

90026-MJ0-000

$6.64

BOLT, STUD (9X168)

90031-MJ0-000

$12.25

BOLT, STUD (9X178)

90033-MJ0-000

$10.61

BOLT, STUD (9X168)

90034-MJ0-000

$12.25

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

BOLT, FLANGE (9X45)

90081-MJ0-010

$6.85

WASHER, SEALING

90401-MJ0-000

$2.66

WASHER, SEALING (8MM)

90441-469-000

$5.28

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

WASHER, OIL BOLT

90545-MJ1-770

$2.95

O-RING (50X2.5) (ARAI)

91316-MJ0-003

$8.87

BOLT 2, STUD (6X32) This part replaces 92700-06045.

92900-06032-0E

$2.45

BOLT 2, STUD (6X32) This part replaces 92700-06045-0B.

92900-06032-0E

$2.45

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

BOLT-WASHER (6X16)

93401-06016-00

$1.55

PIN, DOWEL (10X16)

94301-10160

$2.28

PIN B, DOWEL (10X16)

94302-10160

$1.69

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

BOLT, FLANGE (6X55)

95701-06055-08

$2.16

BOLT, FLANGE (6X80)

95701-06080-08

$2.34

BOLT, FLANGE (8X100)

95701-08100-00

$2.15

BOLT, FLANGE (8X60)

96300-08060-00

$3.08
