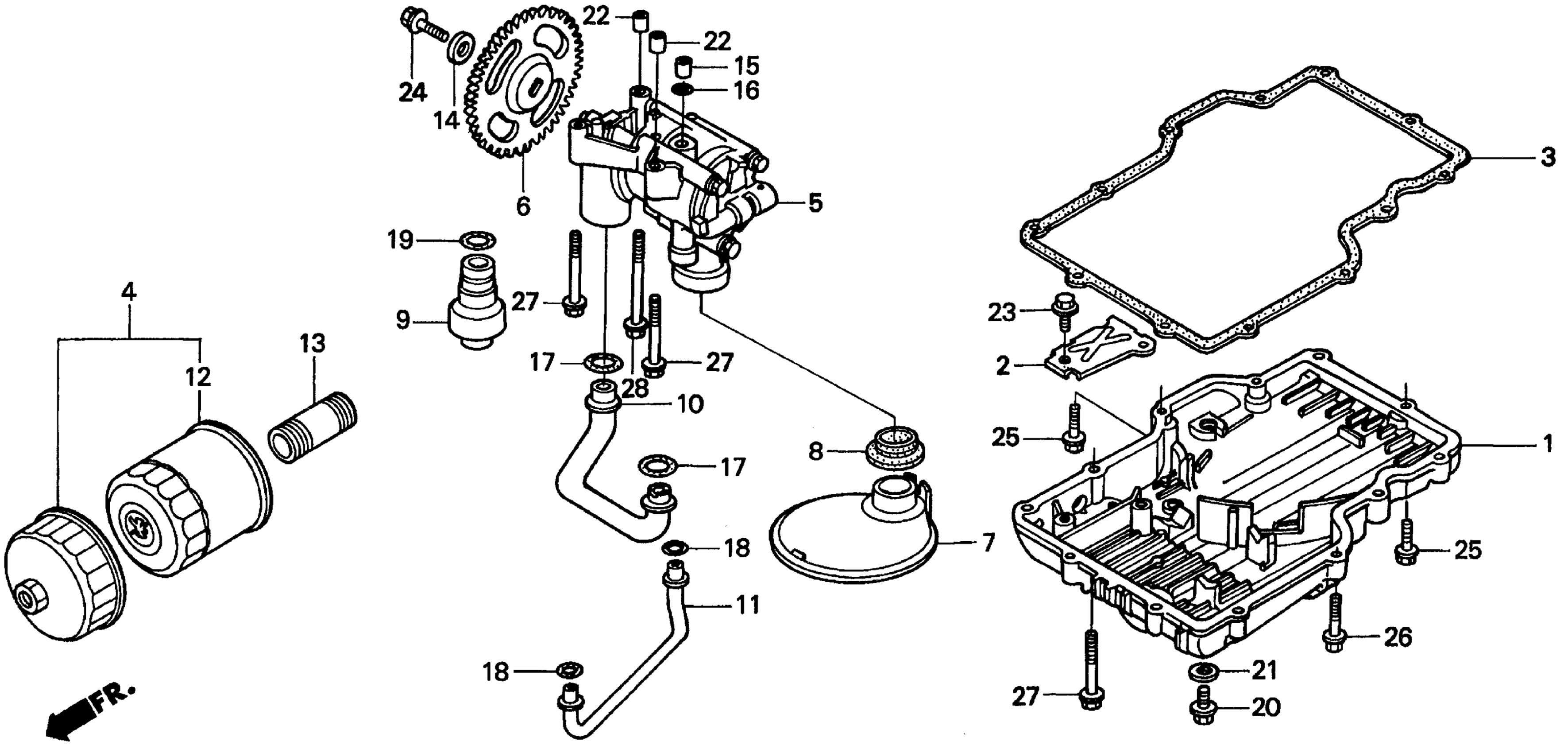

Honda CB750A (97) NIGHTHAWK 750, JPN, VIN# JH2RC380-VM500001 OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11210-MW3-670

$298.82

2

PLATE, BAFFLE

11211-MJ0-000

Unavailable

3

GASKET, OIL PAN This part replaces 11398-MW3-600.

11398-MW3-602

$12.74

4

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

4

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

5

PUMP ASSY., OIL This part replaces 15100-MW3-600.

15100-MW3-A80

Unavailable

6

GEAR, OIL PUMP DRIVEN (38T)

15151-MJ0-000

$62.95

7

STRAINER, OIL

15153-MJ0-030

Unavailable

8

GASKET, OIL STRAINER

15154-MJ0-000

$7.89

9

VALVE ASSY., RELIEF

15220-MJ0-000

$42.33

10

PIPE, OIL PASSAGE

15311-MJ0-010

$21.13

11

PIPE B, OIL PASSAGE

15312-MJ0-000

$28.79

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

13

BOSS, OIL FILTER

90019-MB0-000

$8.61

14

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

15

PIN, O-RING GUIDE

90721-MJ0-010

$3.97

16

O-RING (7.8X1.9) (ARAI)

91301-MJ0-003

$2.28

17

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

18

O-RING (9.8X2.7) (NOK) This part replaces 91309-MJ0-003.

91309-MJ0-005

$4.06

18

O-RING (9.8X2.7) (NOK)

91309-MJ0-005

$4.06

19

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

25

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

26

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

27

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

28

BOLT, FLANGE (6X75)

95701-06075-08

$2.30
