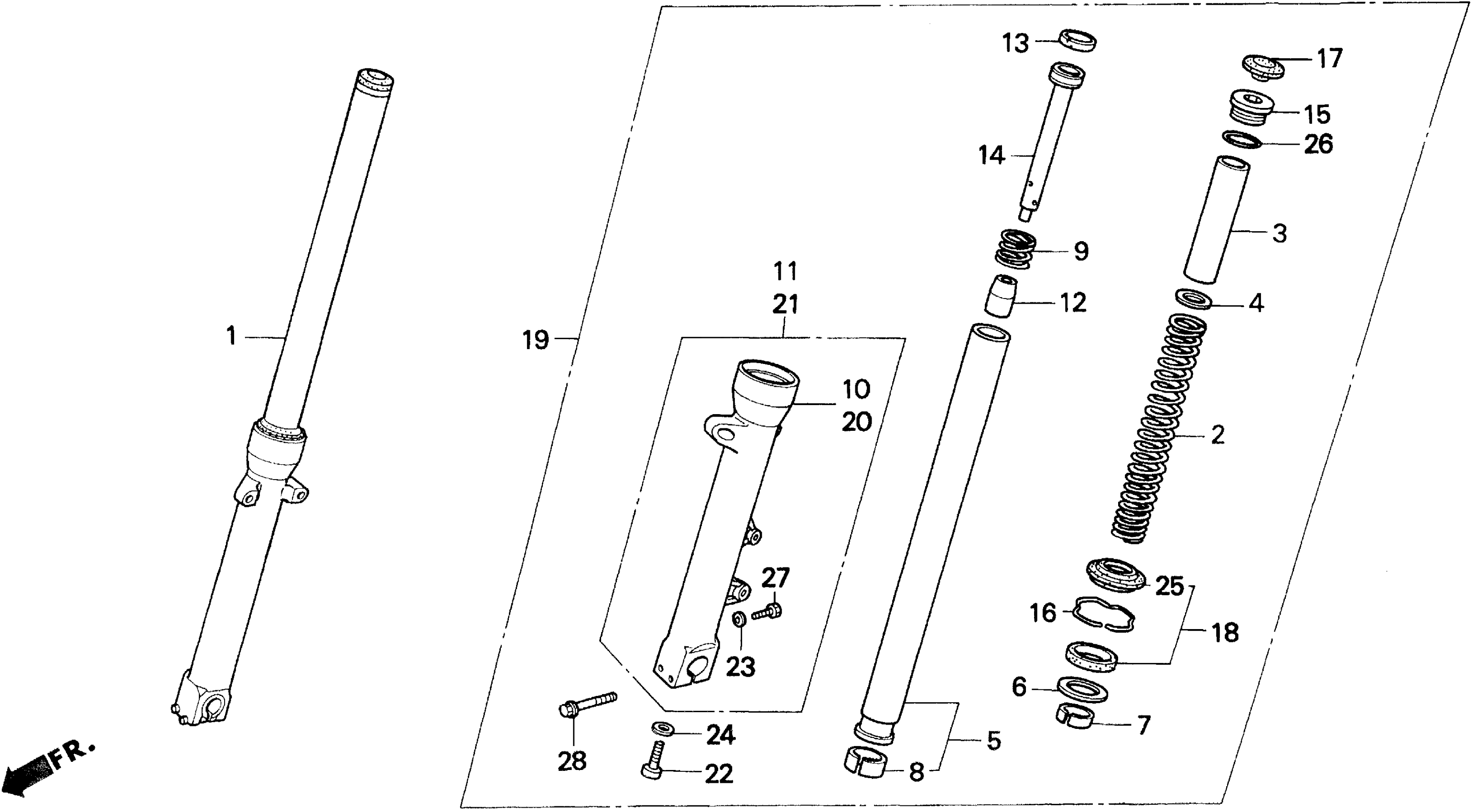

Honda CB750A (96) NIGHTHAWK 750, JPN, VIN# JH2RC380-TM400001 TO JH2RC380-TM401321 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MW3-A41

Unavailable

2

SPRING, FR. FORK

51401-MW3-671

Unavailable

3

COLLAR, SPRING

51402-ML7-921

$26.39

4

SEAT, SPRING

51403-KF0-003

$4.78

5

PIPE, FR. FORK (SHOWA)

51410-MW3-671

Unavailable

6

RING, BACK-UP

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

7

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

8

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

9

SPRING, REBOUND

51416-KV3-701

Unavailable

10

CASE, R. (LOWER)

51420-MW3-A41

Unavailable

10

CASE, R. (LOWER) This part replaces 51420-MZ5-911.

51420-MZ5-912

$473.31

12

PIECE, OIL LOCK (SHOWA)

51432-KV3-701

$17.95

13

RING, PISTON (SHOWA)

51437-MM5-003

$5.31

14

PIPE, SEAT

51440-MW3-671

Unavailable

15

BOLT, L. FR. FORK

51445-MT3-611

Unavailable

16

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

17

CAP, FR. FORK (SHOWA)

51449-MS2-003

Unavailable

18

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

19

FORK ASSY., L. FR.

51500-MW3-A41

Unavailable

20

CASE, L. (LOWER)

51520-MW3-A41

Unavailable

20

CASE, L. (LOWER) This part replaces 51520-MZ5-911.

51520-MZ5-912

$257.78

20

CASE, L. (LOWER)

51520-MZ5-912

$257.78

22

BOLT, SOCKET (8MM)

90116-KV3-701

$3.89

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

25

DUST SEAL

91254-MM8-003

$17.88

26

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

28

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94
