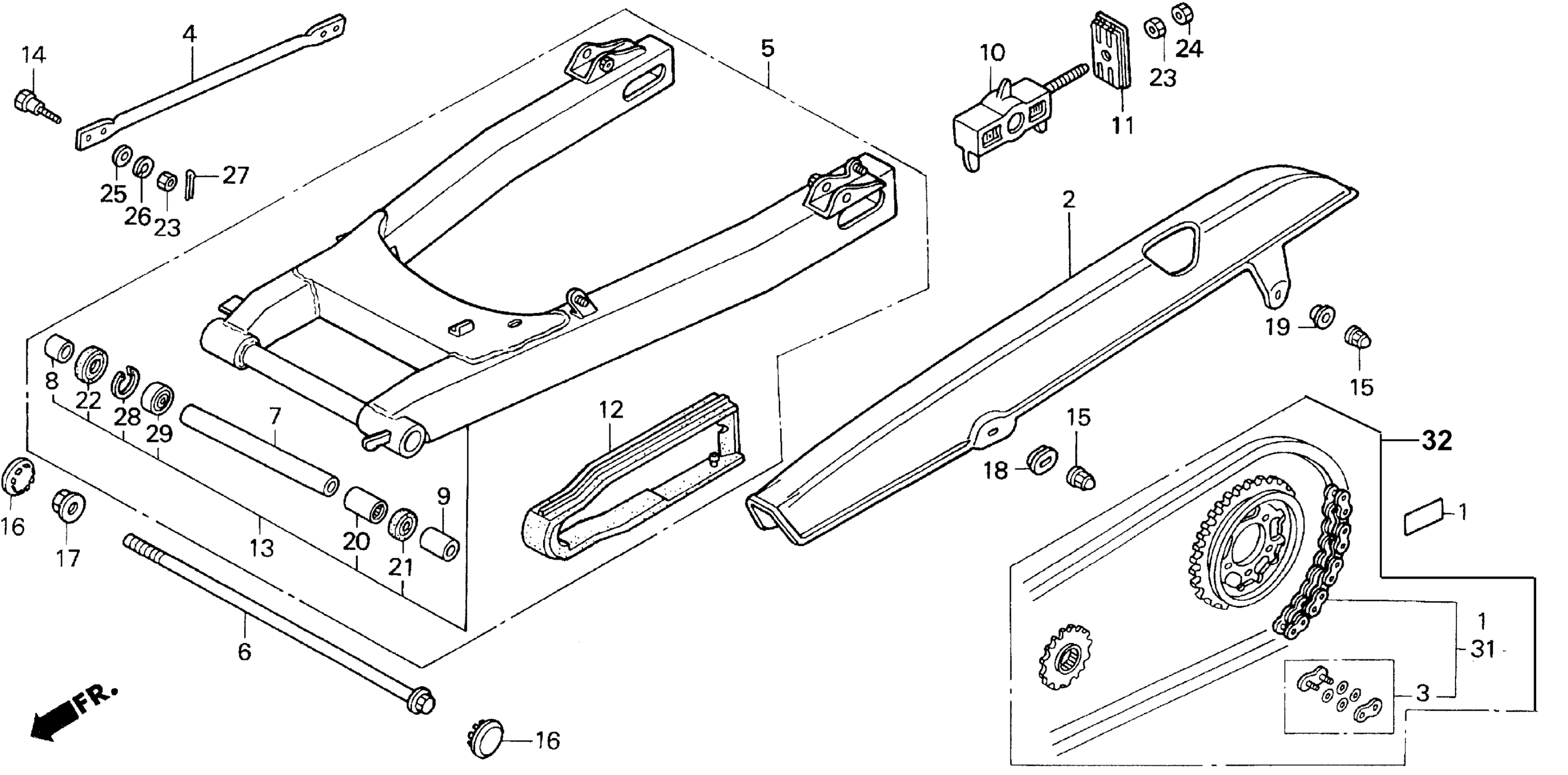

Honda CB750A (93) NIGHTHAWK 750, JPN, VIN# JH2RC380-PM200001 TO JH2RC380-PM204440 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE This part replaces 405A3-MW3-671.

405A3-MW3-672

Unavailable

1

CHAIN SET, DRIVE

405A3-MW3-672

Unavailable

1

CHAIN SET, DRIVE (RK525SMO-110LE) (TAKASAGO)

405B3-MR4-902

Unavailable

2

CASE, DRIVE CHAIN

40510-MW3-670

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

5

SWINGARM ASSY., RR.

52100-MW3-670

Unavailable

6

BOLT, SWINGARM PIVOT This part replaces 52101-MJ0-000.

52101-KEA-000

$31.74

7

COLLAR, PIVOT DISTANCE

52102-MW3-670

Unavailable

8

COLLAR B, RR. SWINGARM PIVOT

52105-MJ0-000

$5.62

9

COLLAR B, PIVOT

52106-ML4-000

Unavailable

10

COLLAR, CHAIN TENSIONER

52120-KV0-700

Unavailable

11

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

12

SLIDER, CHAIN

52170-MW3-670

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

15

NUT, CAP (6MM)

90201-428-900

$2.23

16

CAP, R. LOCK NUT

90302-ME5-000

$19.37

17

NUT, U (14MM)

90305-GE8-003

$3.86

18

WASHER (6X9)

90513-405-000

$2.09

19

WASHER, CHAIN CASE SETTING

90563-KC5-000

$2.20

20

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

20

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

21

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

22

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

22

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (10MM)

94111-10000

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, SPLIT (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49

28

CIRCLIP, INNER (35MM)

94520-35000

$1.84

29

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
