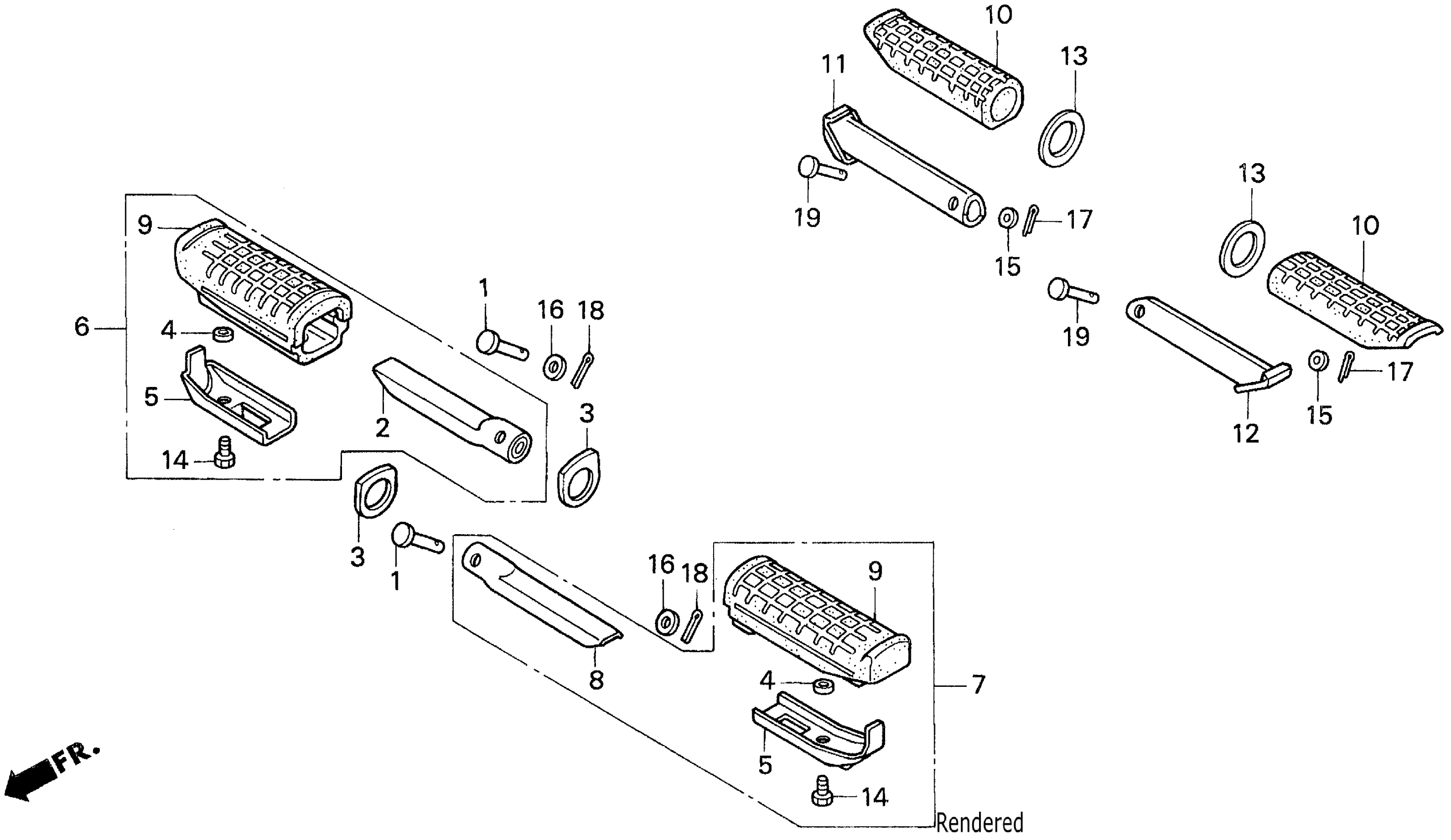

Honda CB750A (93) NIGHTHAWK 750, JPN, VIN# JH2RC380-PM200001 TO JH2RC380-PM204440 STEP Diagram

#

Description
Price

1

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.07

2

BAR, R. MAIN STEP

50612-KM3-000

$17.29

3

PLATE, MAIN STEP SIDE

50614-KE8-000

$4.00

4

COLLAR (6.5X11X3)

50618-KE8-000

$2.62

5

PLATE, MAIN STEP (LOWER)

50619-MW3-670

Unavailable

6

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MW3-670

Unavailable

7

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MW3-670

Unavailable

8

BAR, L. MAIN STEP

50643-KM3-000

$15.17

9

RUBBER, MAIN STEP

50661-KR0-000

$10.73

10

RUBBER, PILLION STEP

50710-KE8-000

$11.31

11

BAR, R. PILLION STEP

50711-KE8-000

Unavailable

12

BAR, L. PILLION STEP

50712-KE8-000

$32.28

13

PLATE, PILLION STEP SIDE

50715-KE8-000

$3.90

14

BOLT, FLANGE (6X12) This part replaces 92101-06012-0G.

96001-06012-07

Unavailable

14

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

15

WASHER, PLAIN (6MM)

94101-06800

Unavailable

16

WASHER, PLAIN (8MM)

94102-08000

$0.86

17

PIN, SPLIT (1.6X12)

94201-16120

$0.94

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

18

PIN, COTTER (1.6X25)

94201-16250

$0.94

19

PIN A, PILLION STEP

95015-81000

$2.01
