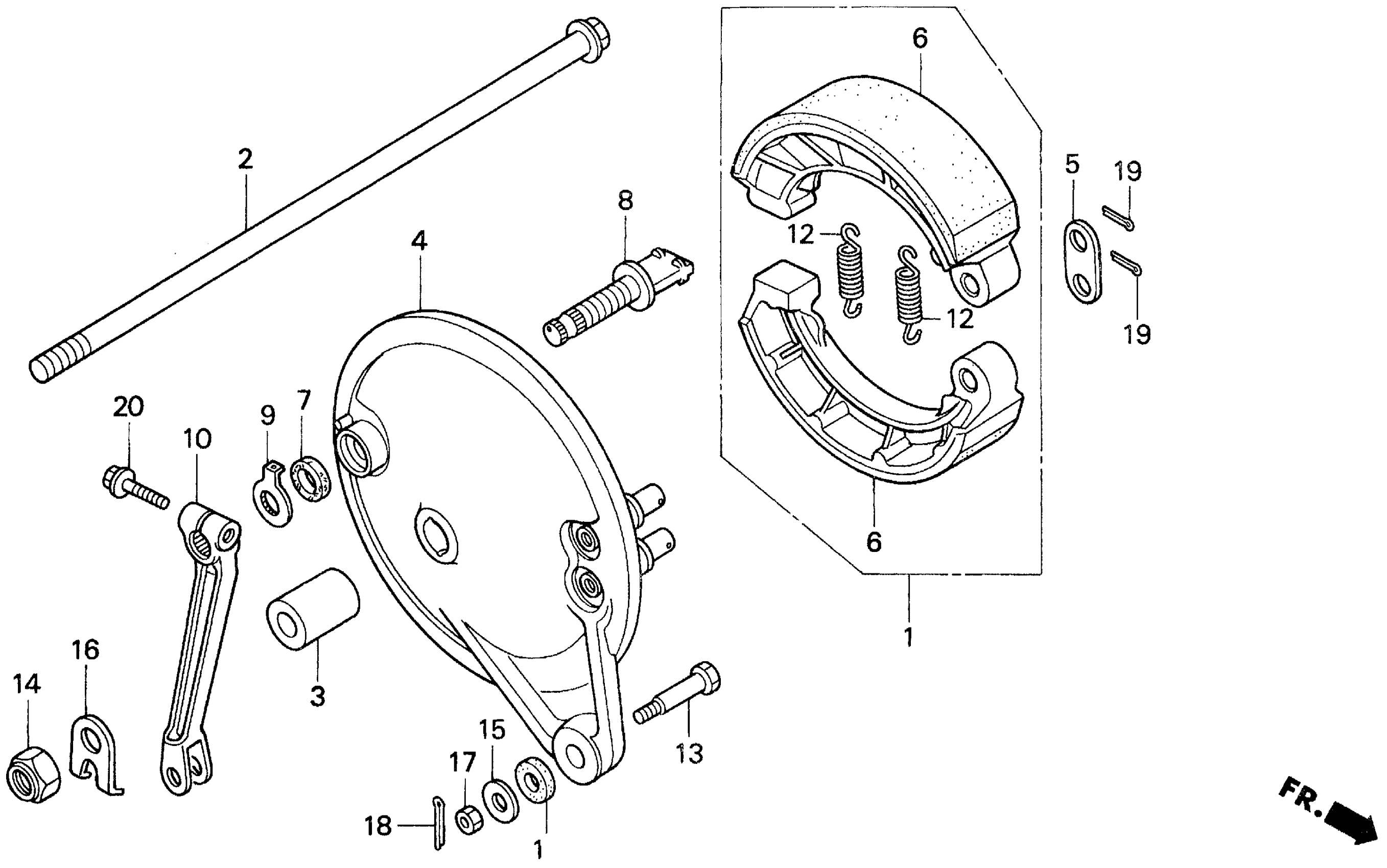

Honda CB750A (93) NIGHTHAWK 750, JPN, VIN# JH2RC380-PM200001 TO JH2RC380-PM204440 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-MW3-671

$50.34

AXLE, RR. WHEEL

42301-MW3-670

Unavailable

COLLAR, RR. BRAKE SIDE

42313-MW3-670

Unavailable

PANEL, RR. BRAKE

43100-MW3-670

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

CAM, RR. BRAKE

43141-MB0-010

$41.60

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

ARM, RR. BRAKE

43410-MJ1-000

$57.50

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

NUT, AXLE (16MM)

90305-KE8-003

$8.64

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

WASHER, RR. AXLE

90559-KV0-000

$11.51

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.79
