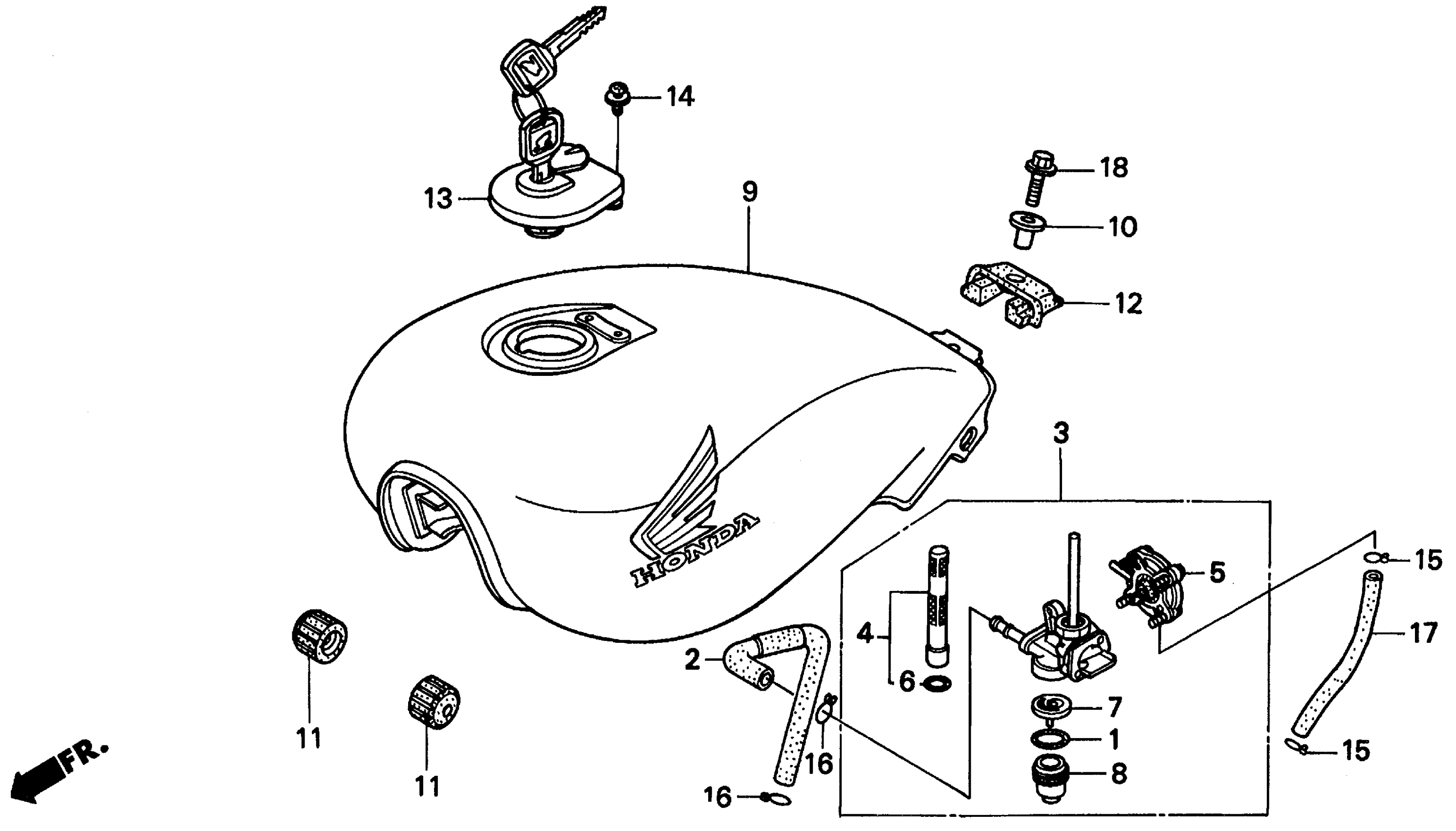

Honda CB750A (92) NIGHTHAWK 750, JPN, VIN# JH2RC380-NM100001 TO JH2RC380-NM106111 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

TUBE, FUEL

16940-MW3-670

$11.32

PETCOCK ASSY. This part replaces 16950-MW3-670.

16950-MW3-671

Unavailable

SCREEN SET, FUEL STRAINER

16952-MA4-771

$59.54

COVER SET, PETCOCK This part replaces 16953-ME5-005.

16953-ME5-025

$44.58

O-RING

16958-MA2-771

$4.44

FILTER, CUP

16959-461-751

$17.88

CUP, FUEL STRAINER

16967-MA2-771

$25.08

TANK SET, FUEL (TYPE1) (WL)

17520-MW3-670ZC

Unavailable

TANK SET, FUEL (TYPE3) (WL)

17520-MW3-670ZD

Unavailable

COLLAR, FUEL TANK SETTING

17525-KC5-000

$6.72

RUBBER, FR. FUEL TANK

17611-425-000

$8.18

RUBBER, RR. FUEL TANK

17613-KY2-700

Unavailable

CAP, FUEL FILLER This part replaces 17620-KL8-020.

17620-KL8-030

$106.28

SCREW-WASHER (4X6)

45319-634-003

$2.48

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

BULK HOSE, VACUUM (3.5X8000) (3.5X90)

95005-35008-10M

$105.82

BOLT, FLANGE (8X30)

95701-08030-00

$1.49
