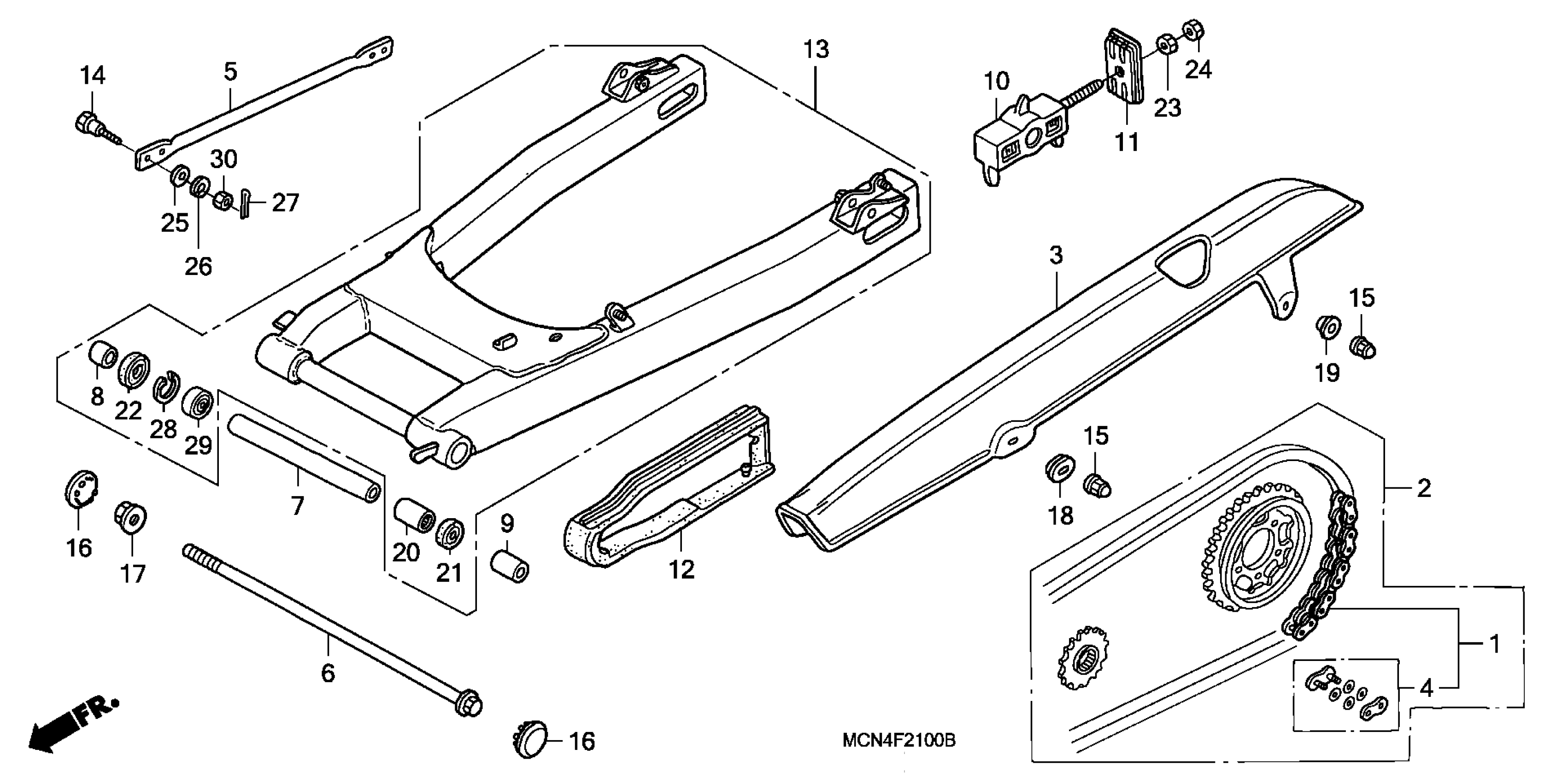

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK525 112-120L) (RK EXCEL) (NA USE ALT:40540-MY5-306)

06405-MY5-P10

Unavailable

1

*40540-MY5-G31 This part replaces 06405-MY9-P00.

06405-MY5-P00

Unavailable

3

CASE, DRIVE CHAIN

40510-MW3-670

Unavailable

4

MASTER LINK SET (RK EXCEL)

40535-MY5-306

$6.94

4

MASTER LINK SET (DAIDO)

40535-MY9-305

Unavailable

5

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

6

BOLT, SWINGARM PIVOT

52101-KEA-000

$28.90

7

COLLAR, PIVOT DISTANCE

52102-MW3-670

Unavailable

8

COLLAR B, SWINGARM PIVOT

52105-MJ0-000

$5.12

9

COLLAR B, PIVOT

52106-ML4-000

Unavailable

10

COLLAR, CHAIN TENSIONER

52120-KV0-700

Unavailable

11

PLATE, CHAIN TENSIONER

52121-MJ0-000

$19.99

12

SLIDER, CHAIN

52170-MW3-670

Unavailable

13

SWINGARM SET

52200-MW3-A40

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.16

15

NUT, CAP

90201-428-900

$2.03

16

CAP, LOCK NUT

90302-ME5-000

$17.40

17

NUT, U (14MM)

90305-GE8-003

$3.59

18

WASHER (6X9)

90513-405-000

$2.00

19

WASHER, CHAIN CASE SETTING

90563-KC5-000

$2.00

20

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.09

20

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$33.09

21

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.41

22

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$6.94

23

NUT, HEX. (8MM)

94030-08000

$0.97

24

NUT, HEX. (8MM)

94001-08000-0S

$1.19

25

WASHER, PLAIN (8MM)

94101-08000

$0.75

26

WASHER, SPRING (10MM)

94111-10000

$1.22

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.94

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

27

PIN, SPLIT (2.0X22)

94201-20220

$0.94

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

27

PIN, SPLIT (2.0X35)

94201-20350

$0.94

27

PIN, COTTER (2.0X22)

94201-29220

$0.94

28

CIRCLIP, INNER (35MM)

94520-35000

$1.77

29

BEARING, RADIAL BALL (6202)

96100-62020-10

$13.02

30

NUT, HEX. (8MM)

94001-08000-0S

$1.19
