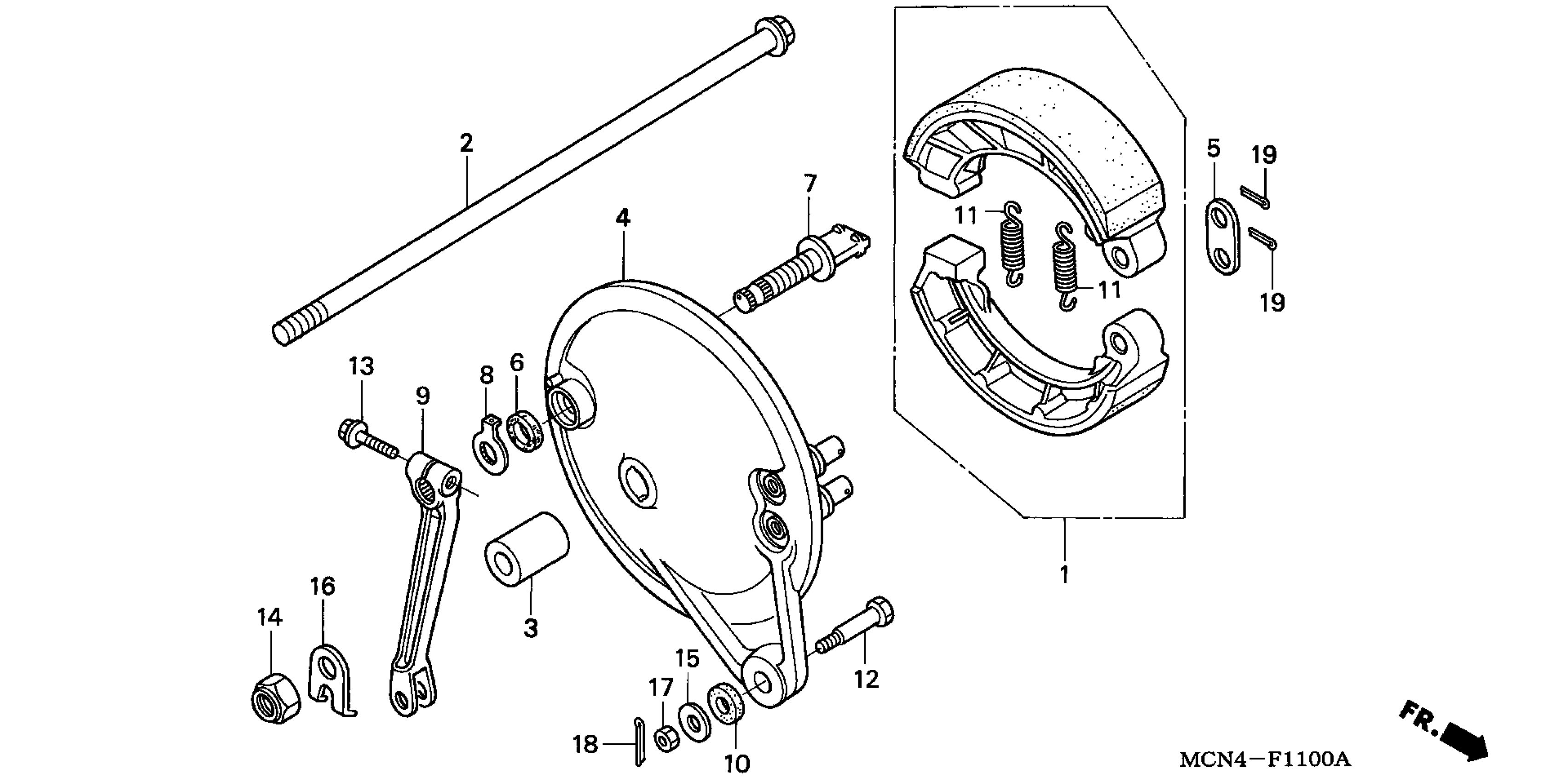

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE KIT, BRAKE

06430-MW3-671

$45.18

2

AXLE, RR. WHEEL

42301-MW3-670

Unavailable

3

COLLAR, RR. BRAKE SIDE

42313-MW3-670

Unavailable

4

PANEL, RR.

43100-MW3-A40

Unavailable

5

WASHER, ANCHOR PIN

43102-319-000

$5.77

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.00

7

CAM, RR. BRAKE

43141-MB0-010

$37.36

8

INDICATOR, RR. BRAKE

43145-ME5-000

$5.44

9

ARM, RR. BRAKE

43410-MJ1-000

$51.25

10

RUBBER, STOPPER ARM

43434-ME1-670

$3.22

11

SPRING, FR. BRAKE SHOE

45133-329-000

$2.62

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.53

13

BOLT, FLANGE (8X25)

90131-GAA-000

$5.75

14

NUT, AXLE (16MM)

90305-KE8-003

$7.76

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

16

WASHER, RR. AXLE

90559-KV0-000

$10.48

17

NUT, HEX. (8MM)

94001-08000-0S

$1.19

18

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.94

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

18

PIN, SPLIT (2.0X22)

94201-20220

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

18

PIN, SPLIT (2.0X35)

94201-20350

$0.94

18

PIN, COTTER (2.0X22)

94201-29220

$0.94

19

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

19

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

19

PIN, SPLIT (2.5X30)

94201-25300

$0.94
