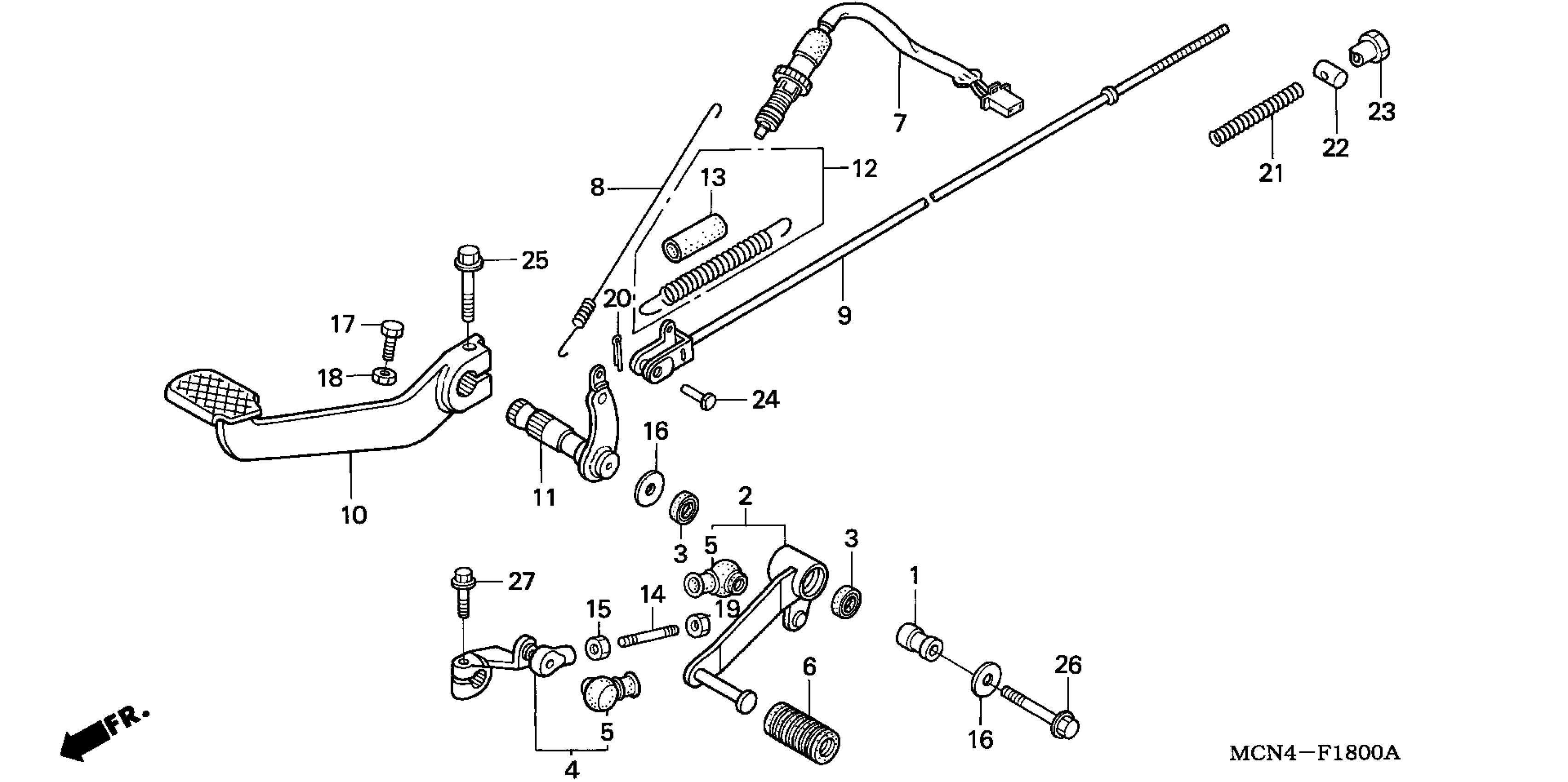

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 PEDAL Diagram

#

Description
Price

1

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.79

2

PEDAL, GEARSHIFT

24705-MW3-670

Unavailable

3

RUBBER, DUST SEAL

24706-MK3-770

$4.28

4

ARM, CHANGE

24721-MW3-670

$64.40

5

COVER, DUST

24724-422-000

$6.37

6

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

7

SWITCH ASSY., RR. STOP

35350-MG7-405

$18.81

7

SWITCH ASSY., RR. STOP This part replaces 35350-MJ0-921.

35350-MG7-405

$18.81

8

SPRING, STOP SWITCH

35357-MC9-670

Unavailable

9

ROD, RR. BRAKE

43451-MW3-670

Unavailable

10

PEDAL, BRAKE

46500-MW3-670

Unavailable

11

SPINDLE, RR. BRAKE

46505-MW3-670

Unavailable

12

SPRING SET, BRAKE PEDAL

46513-KY7-000

$11.40

13

TUBE, BRAKE PEDAL SPRING

46515-KY7-000

$4.54

14

BOLT, TIE ROD

90065-MW3-670

$7.50

15

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.71

16

WASHER (8MM)

90514-921-000

$1.00

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.43

18

NUT, HEX. (6MM)

94002-06000-0S

$1.31

19

NUT, HEX. (6MM)

94002-06020-0S

$1.01

20

PIN, SPLIT (2.0X12)

94201-20120

$1.04

21

SPRING A, BRAKE ROD

95014-73100

$1.19

22

JOINT B, BRAKE ARM

95015-32001

$0.87

23

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

24

PIN C, JOINT

95015-53000

$2.92

25

BOLT, FLANGE (8X35)

95801-08035-00

$1.24

26

BOLT, FLANGE (8X45)

95801-08045-00

$1.62

27

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
