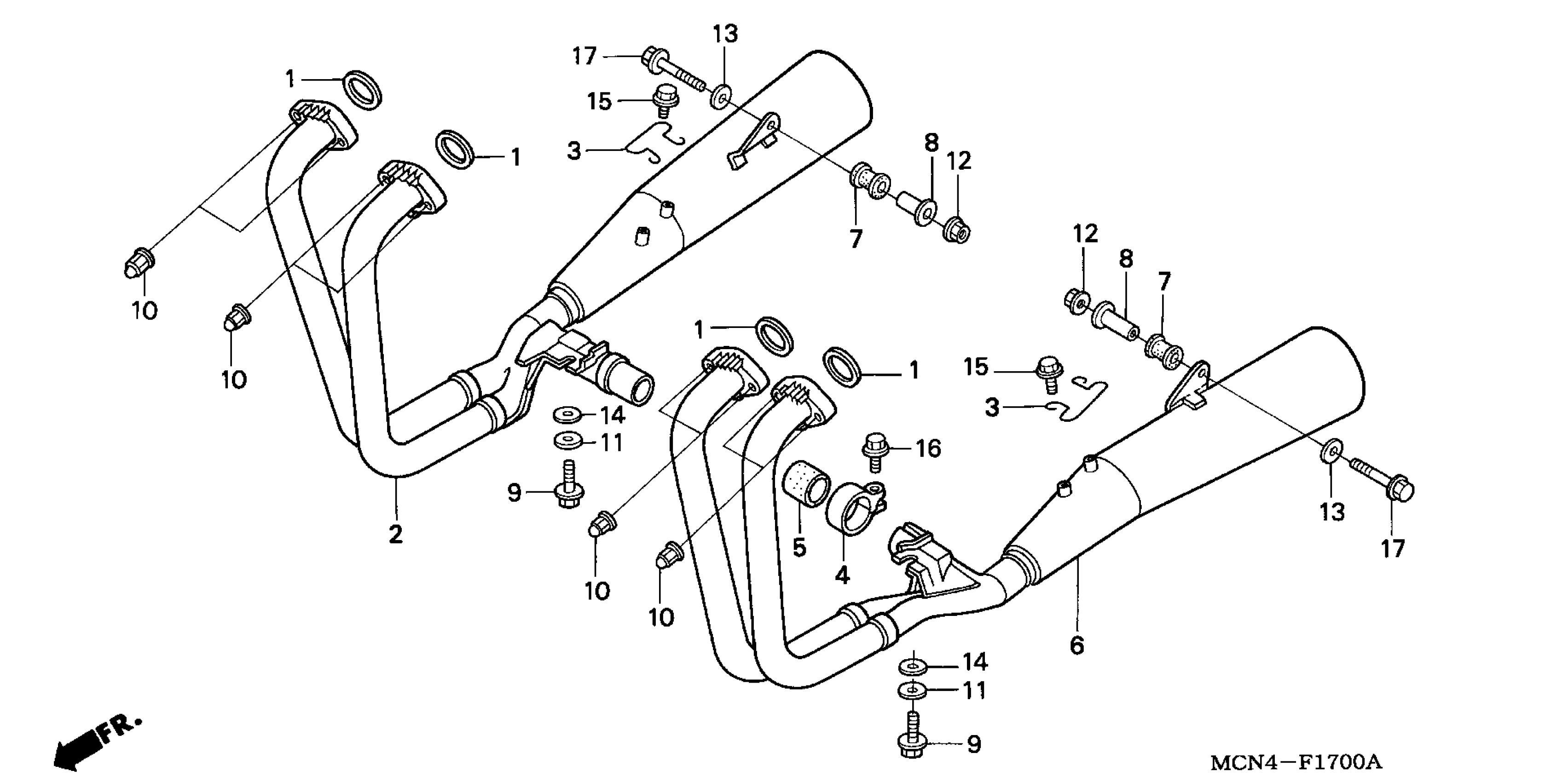

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MW3-670

$2.57

MUFFLER, R. EX.

18300-MW3-671

Unavailable

GUARD, MUFFLER

18312-MW3-670

Unavailable

BAND, RR. MUFFLER

18375-413-000

$40.08

GASKET, MUFFLER

18392-MG7-750

$13.66

MUFFLER, L. EX.

18400-MW3-671

Unavailable

RUBBER, MUFFLER SETTING

18421-438-000

$6.14

RUBBER, MUFFLER SETTING This part replaces 18421-438-670.

18421-438-000

$6.14

COLLAR, MUFFLER MOUNTING

18422-438-000

$9.03

BOLT, SPROCKET

90128-402-000

$6.93

NUT, CAP (7MM)

90304-MJ0-920

$4.94

WASHER, SPRING (10MM)

90481-430-000

$6.19

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (10MM)

94103-10000

$1.49

WASHER, PLAIN (10MM)

94103-10700

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (10X50)

95701-10050-07

$1.85
