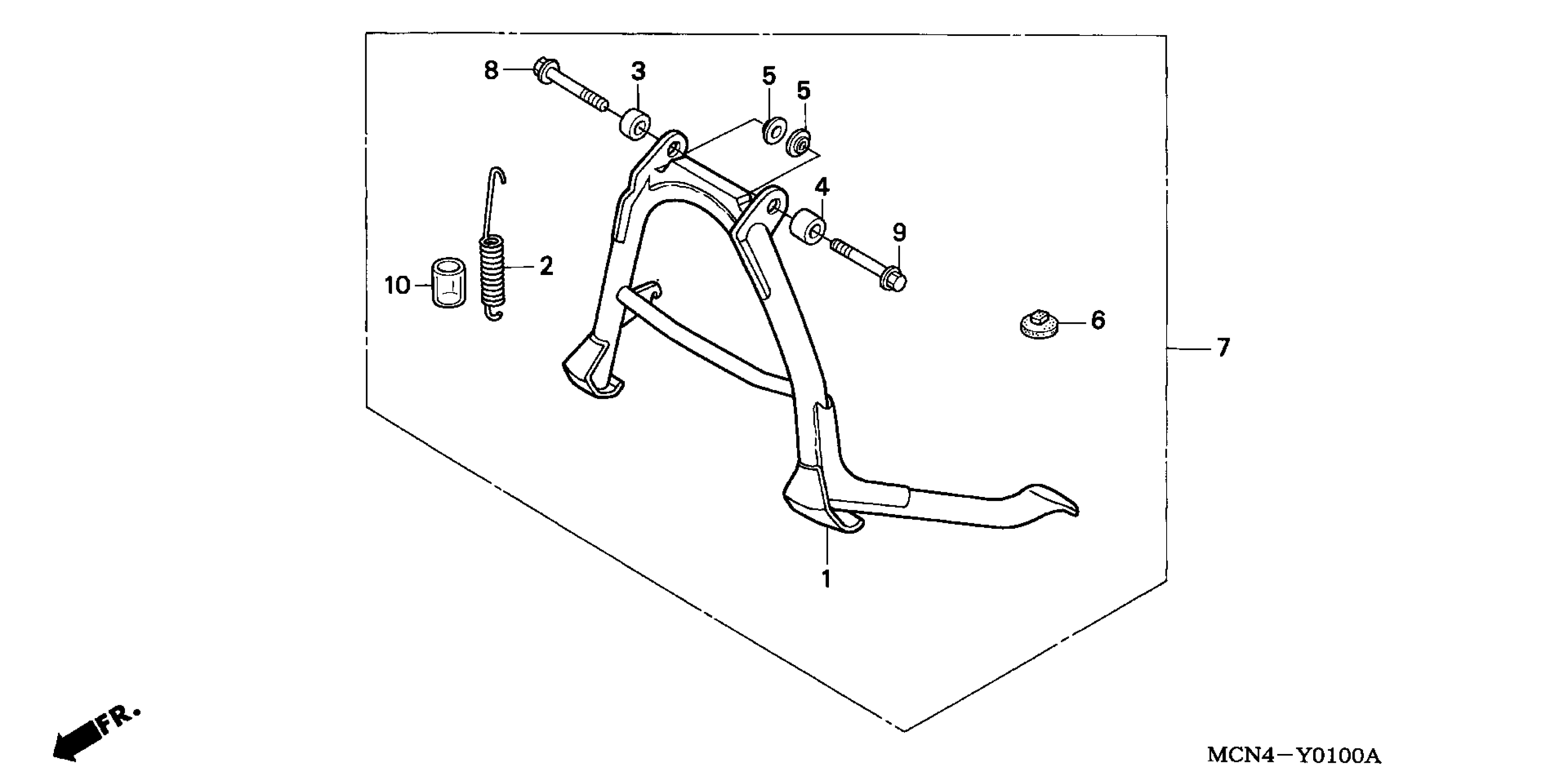

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 MAIN STAND Diagram

#

Description

Price

1

STAND, MAIN

50500-MW3-810

Unavailable

2

SPRING ASSY., MAIN STAND This part replaces 50501-MJ0-950.

50541-MS9-000

Unavailable

2

SPRING ASSY., MAIN STAND

50541-MS9-000

Unavailable

3

COLLAR (15)

50501-MW3-810

Unavailable

4

COLLAR (20)

50502-MW3-810

Unavailable

5

COLLAR, MAIN STAND

50503-MA1-000

$10.39

6

RUBBER, STAND STOPPER This part replaces 50524-KAF-000.

50524-MN8-000

$5.62

6

RUBBER, STAND STOPPER

50524-MN8-000

$5.62

7

STAND SET, MAIN

50600-MW3-810

Unavailable

8

BOLT, FLANGE (10X45)

90101-HE0-670

$5.80

9

BOLT, FLANGE (10X50)

90102-HE0-670

Unavailable

10

BULK HOSE, VINYL (17.5X20.5X1000) (17.5X20.5X50)

95003-55001-10M

Unavailable
