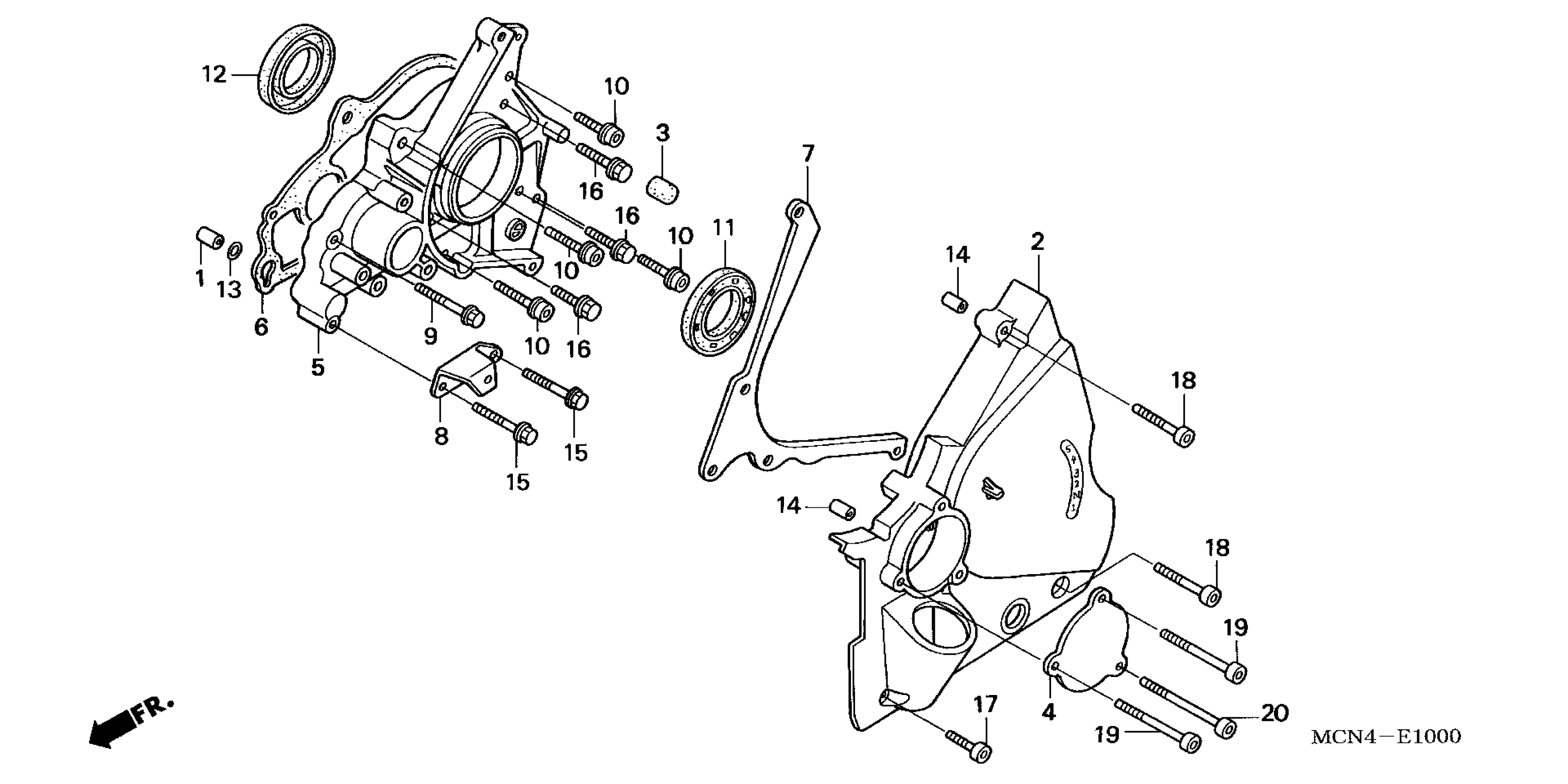

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 LEFT COVER Diagram

#

Description
Price

1

NOZZLE, TRANSMISSION OIL

11205-MJ1-770

Unavailable

2

COVER, L.

11651-MW3-G30

Unavailable

3

RUBBER, L. COVER DAMPING

11652-MJ0-000

Unavailable

4

PLATE, L. COVER

11653-MW3-G31

Unavailable

5

COVER, L. (INNER)

11661-MW3-670

$213.69

6

GASKET, L. COVER (INNER) This part replaces 11663-MW3-600.

11663-MW3-601

$17.11

6

GASKET, L. COVER (INNER)

11663-MW3-601

$17.11

7

PLATE, DRIVE CHAIN GUIDE

11664-MW3-A90

Unavailable

8

STAY, OIL FEED PIPE A

15526-MJ0-000

$14.67

9

BOLT, SPECIAL FLANGE (6X28)

90007-MJ0-000

$4.67

10

BOLT, SOCKET (8X28)

90154-MJ0-000

$4.04

11

OIL SEAL (40X58X9) (NOK)

91206-MJ0-005

$12.23

12

OIL SEAL (40X62X6)

91207-MJ0-005

$14.70

13

O-RING (7.8X1.9) (ARAI)

91301-MJ0-003

$2.28

14

PIN A, DOWEL (8X12)

94301-08120

$2.19

15

BOLT, FLANGE (6X38)

95701-06038-08

$1.80

16

BOLT, FLANGE (8X25)

95701-08025-08

$1.49

17

BOLT, SOCKET (6X25)

96700-06025-00

$1.80

18

BOLT, SOCKET (6X35)

96700-06035-00

Unavailable

19

BOLT, SOCKET (6X55)

96700-06055-00

Unavailable

20

BOLT, SOCKET (6X60)

96700-06060-00

Unavailable
