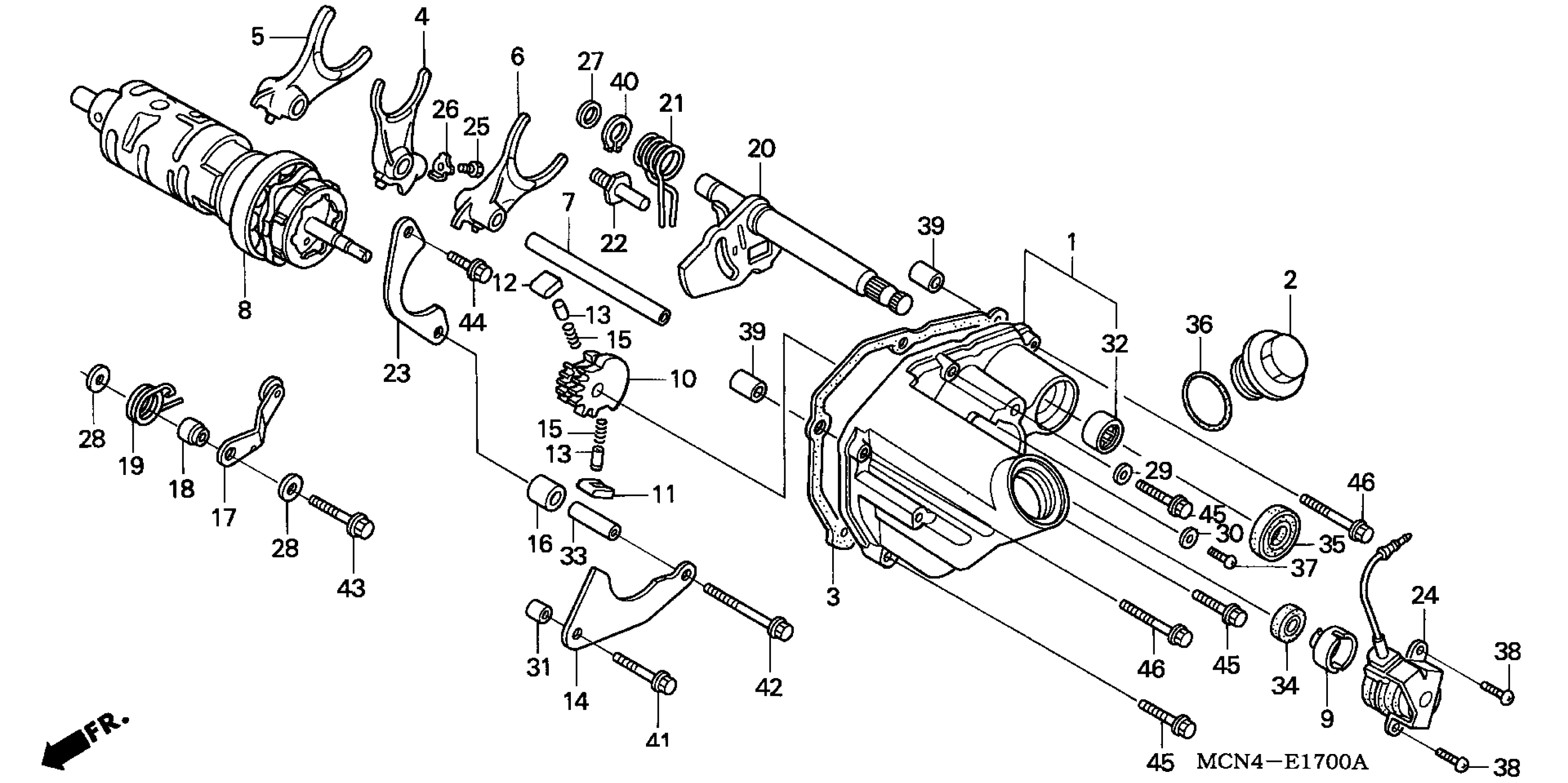

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

COVER, CHANGE

11351-MW3-670

$195.51

2

CAP, CHANGE COVER SEALING

11356-MW3-670

$16.82

3

GASKET, CHANGE COVER This part replaces 11394-MW3-600.

11394-MW3-602

$6.05

4

FORK, MAIN GEARSHIFT

24211-MJ0-000

$118.26

5

FORK, R. GEARSHIFT

24221-MJ0-000

$118.26

6

FORK, L. GEARSHIFT

24225-MJ0-000

Unavailable

7

SHAFT, GEARSHIFT FORK

24231-MJ0-000

Unavailable

8

DRUM, GEARSHIFT

24310-MW3-J00

$254.25

9

PIECE, POSITION SWITCH DRIVE

24314-MJ0-000

$6.15

10

SHIFTER, DRUM

24321-MW3-J01

$50.61

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, GUIDE

24328-MJ0-000

$19.03

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

COLLAR, GUIDE PLATE DISTANCE

24329-KG4-000

$6.84

17

STOPPER, GEARSHIFT DRUM

24430-MJ0-000

$26.11

18

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.99

19

SPRING, DRUM STOPPER

24435-MW3-960

Unavailable

20

SPINDLE, GEARSHIFT This part replaces 24610-MJ0-010.

24610-MJ0-305

Unavailable

21

SPRING, GEARSHIFT RETURN

24651-MW3-960

Unavailable

22

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

23

PLATE, SHIFT DRUM BEARING SETTING

24655-MJ0-000

$16.36

24

SWITCH ASSY., CHANGE

35759-MW3-671

$112.98

25

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

26

WASHER, LOCK

90407-MB0-000

$2.66

27

WASHER (14MM)

90451-155-000

$3.78

28

WASHER, SHIFT DRUM STOPPER

90453-292-010

$5.03

29

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

30

WASHER, SPECIAL

90544-GF4-003

$2.56

31

PIN, DOWEL (8X10) This part replaces 90701-MJ1-950.

94301-08100

$2.25

32

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$27.17

33

PIN, DOWEL (8X29.5)

91104-KG4-000

$5.25

34

OIL SEAL (6X16X5) This part replaces 91205-MJ0-003.

91205-MJ0-005

$4.80

34

OIL SEAL (6X16X5)

91205-MJ0-005

$4.80

35

OIL SEAL (14X28X7)

91206-MA6-005

$5.12

36

O-RING (21.5X3.2)

91307-425-003

$2.59

37

SCREW, PAN (4X8)

93500-04008-0A

$1.49

38

SCREW, PAN (6X14)

93500-06014-0H

$1.49

39

PIN, DOWEL (8X14)

94301-08140

$2.25

40

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

41

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

42

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

43

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

43

BOLT, FLANGE (6X25) This part replaces 95801-06025-09.

95801-06025-00

$1.49

44

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

45

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

46

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
