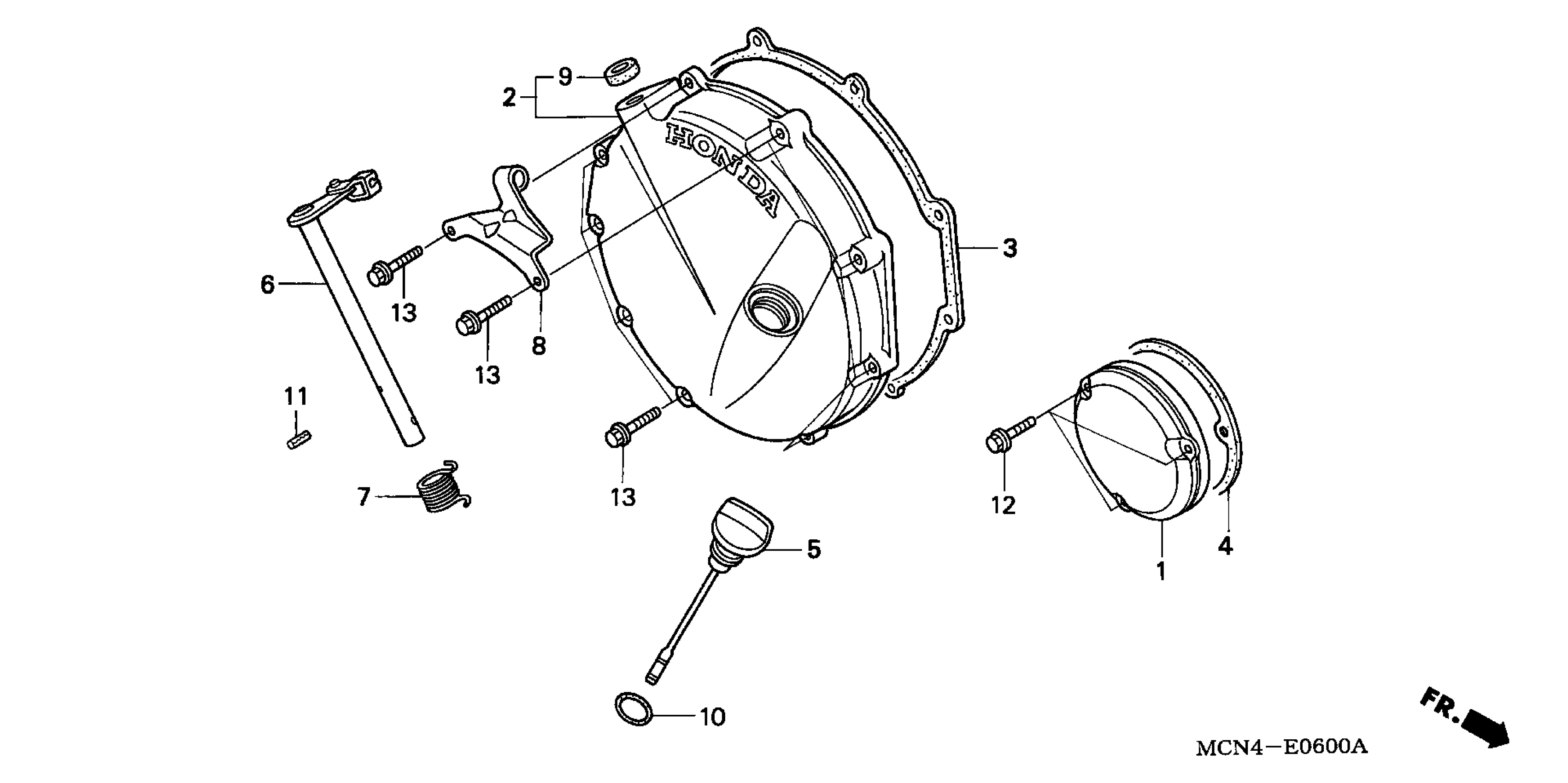

Honda CB750A (03) NIGHTHAWK 750, JPN, VIN# JH2RC380-3M100001 CLUTCH COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE

11311-MJ0-010

Unavailable

2

COVER, CLUTCH

11330-MW3-G30

Unavailable

3

GASKET, CLUTCH COVER This part replaces 11395-MW3-600.

11395-MW3-602

$10.38

4

GASKET, R. This part replaces 11396-MW3-600.

11396-MW3-602

$6.13

5

DIPSTICK, OIL

15650-MW3-670

Unavailable

6

LEVER, CLUTCH

22710-MW3-670

Unavailable

7

SPRING, CLUTCH LEVER

22815-428-000

$3.28

8

RECEIVER, CLUTCH CABLE

22821-MCN-720

Unavailable

8

RECEIVER, CLUTCH CABLE This part replaces 22821-MW3-G30.

22821-MCN-720

Unavailable

9

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

10

O-RING (21.5X3.2)

91307-425-003

$2.59

11

PIN, SPRING (3X16)

94305-30162

$1.74

12

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

13

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
