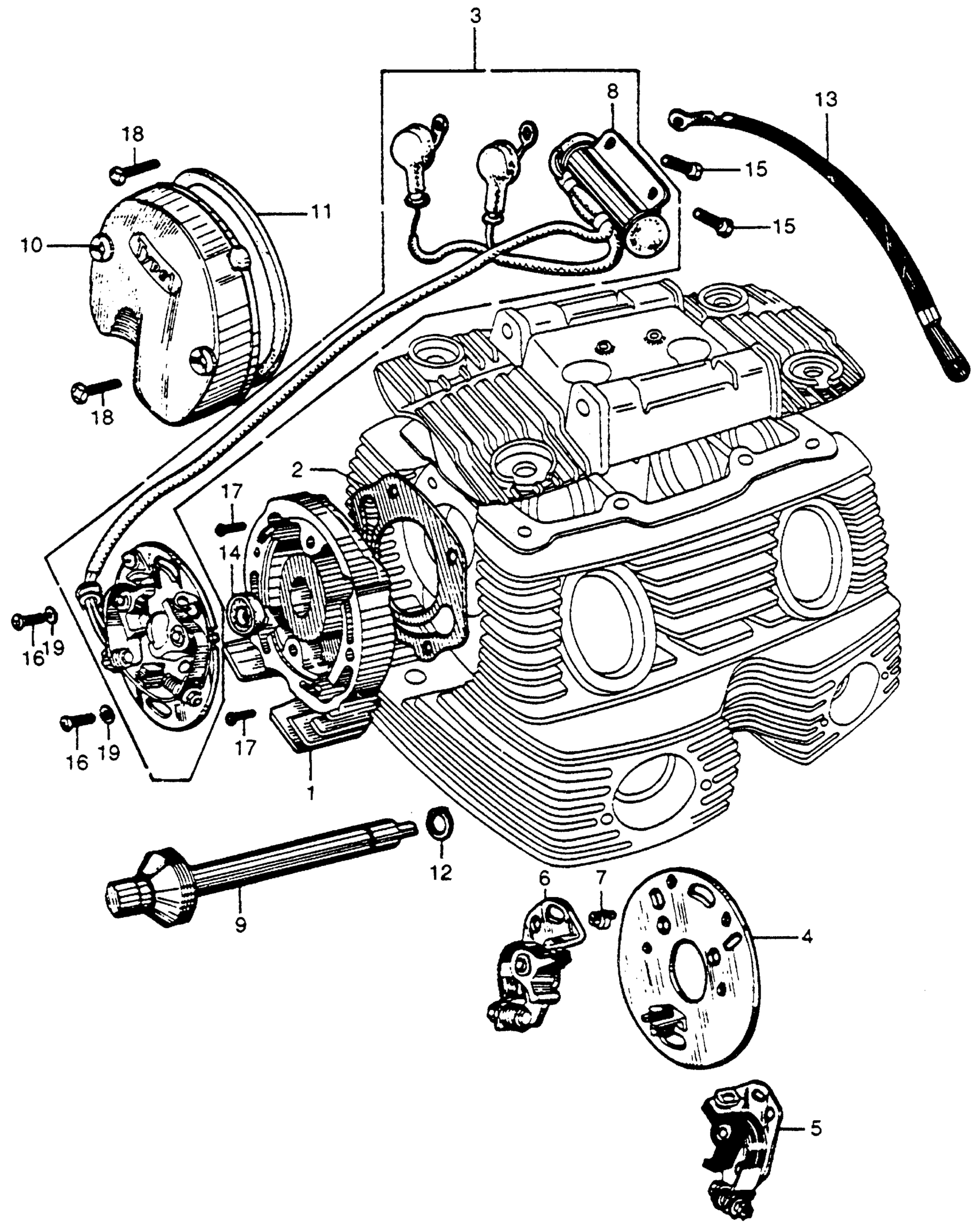

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 POINTS Diagram

#

Description
Price

1

COVER, R. CYLINDER HEAD SIDE | Use from Engine SN 0110001 to 0210100

12331-268-010

Unavailable

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE)

12331-268-020

Unavailable

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) This part replaces 12331-268-030.

12331-268-020

Unavailable

2

GASKET, CYLINDER HEAD SIDE COVER (NOT AVAILABLE)

12391-258-000

Unavailable

3

POINTS ASSY. (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110966

30200-268-010

Unavailable

3

POINTS ASSY. (NOT AVAILABLE) | Use from Engine SN 0110967 to 0210100

30200-268-020

Unavailable

3

POINTS ASSY. (NOT AVAILABLE) | Use from Engine SN 0100001 to 0104165

30200-268-030

Unavailable

4

PLATE, POINTS BASE (NOT AVAILABLE)

30201-268-004

Unavailable

5

POINTS, R.

30203-268-004

Unavailable

6

POINTS, L.

30204-268-004

Unavailable

7

ADJUSTER

30206-268-000

Unavailable

8

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110966

30250-268-004

Unavailable

8

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110967 to 0210100

30250-268-014

Unavailable

8

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0104165

30250-268-024

$66.49

8

CONDENSER (NOT AVAILABLE) | Use from Engine SN 1006122

30250-273-000

Unavailable

9

SHAFT, POINT | Use from Engine SN 0100001 to 0402705

30310-268-000

Unavailable

9

SHAFT, POINT (NOT AVAILABLE) | Use from Engine SN 0402706

30310-268-010

Unavailable

10

COVER, POINT | Use from Engine SN 0110001 to 0210100

30371-268-010

Unavailable

10

COVER, POINT | Use from Engine SN 0100001 to 0104165

30371-268-020

Unavailable

10

COVER, POINT | Use from Engine SN 0210101

30371-268-020

Unavailable

11

GASKET, POINTS COVER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0210100

30391-259-010

Unavailable

11

GASKET, POINTS COVER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0104165

30391-259-020

Unavailable

12

SET-RING (11MM) (NOT AVAILABLE)

90601-259-000

$3.59

13

CABLE, CONDENSER (NOT AVAILABLE)

32621-268-020

Unavailable

14

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

14

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

14

OIL SEAL (16X28X7)

91204-259-003

$5.60

14

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

15

BOLT, HEX. (5X12) This part replaces 92000-05012.

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12) This part replaces 93300-05012-1H.

92101-05012-0G

$1.49

16

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

16

SCREW, PAN (5X12)

93500-05012-0A

$1.49

17

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

17

SCREW, PAN (6X20)

93500-06020-0A

$1.49

18

SCREW, OVAL (5X30)

93700-05030

Unavailable

19

WASHER, PLAIN (5MM)

94101-05000

$1.49
