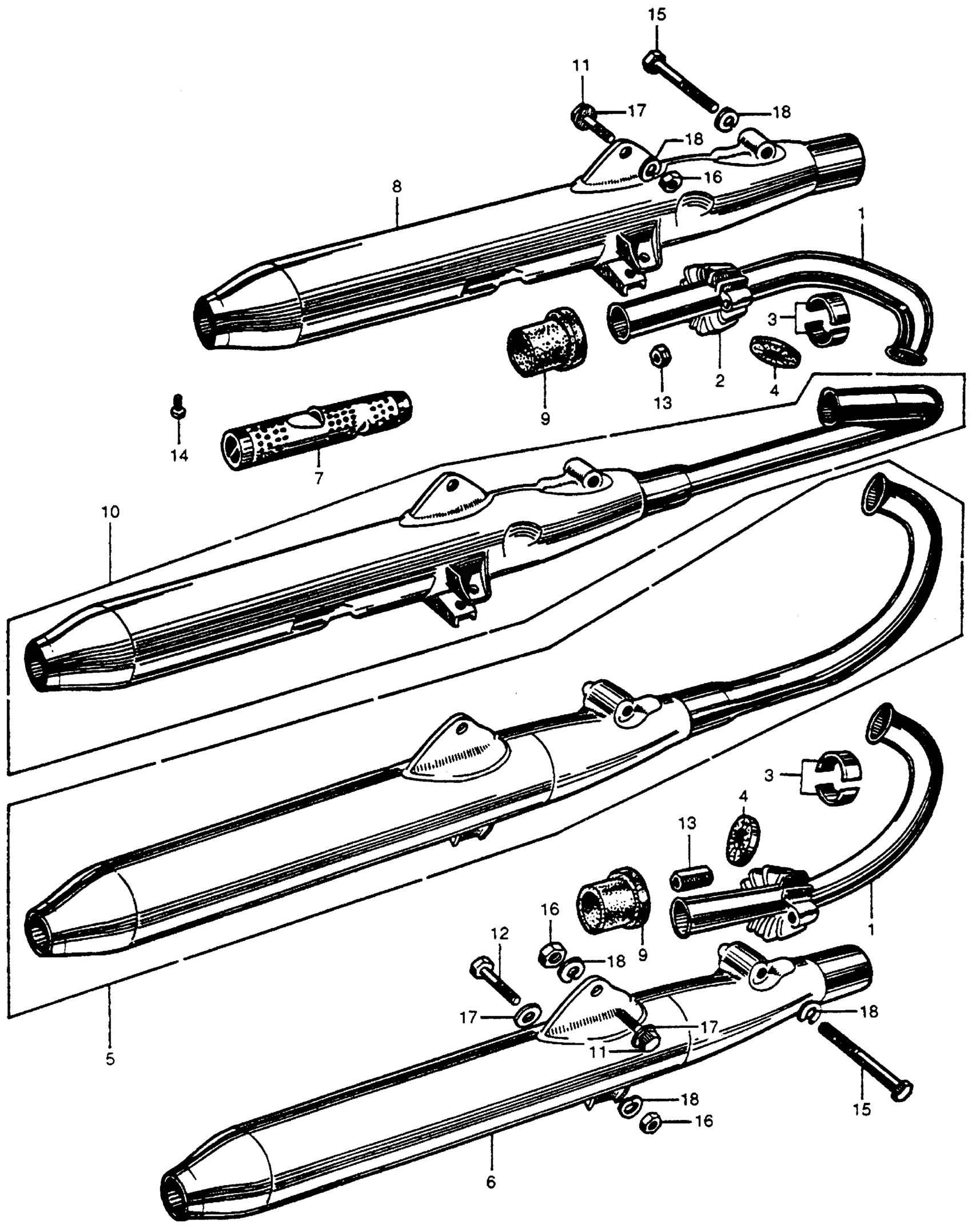

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 MUFFLER Diagram

#

Description
Price

1

MUFFLER (NOT AVAILABLE) | Use from Frame SN 0010001 to 1007142

18200-268-010

Unavailable

2

JOINT, EX. PIPE | Use from Frame SN 0010001 to 1007142

18231-259-000

Unavailable

2

JOINT, EX. PIPE | Use from Frame SN 1007143

18231-268-000

Unavailable

3

COLLAR, EX. PIPE JOINT (NOT AVAILABLE) | Use from Frame SN 0010001 to 1007142

18233-259-000

Unavailable

3

COLLAR, EX. PIPE JOINT (NOT AVAILABLE) | Use from Frame SN 1007143

18233-273-000

Unavailable

4

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

5

MUFFLER, R. (NOT AVAILABLE) This part replaces 18300-268-670.

18300-268-677

Unavailable

5

MUFFLER, R. (NOT AVAILABLE)

18300-268-677

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18300-268-670.

18300-268-677

Unavailable

6

MUFFLER, R. (NOT AVAILABLE)

18300-268-677

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18310-268-020.

18300-268-677

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18310-268-315.

18300-268-677

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18310-268-325.

18300-268-677

Unavailable

7

MUFFLER, DIFFUSER (NOT AVAILABLE) | Use from Frame SN 0010001 to 1007142

18311-259-010

Unavailable

8

MUFFLER, L. (NOT AVAILABLE) This part replaces 18330-268-325.

18400-268-677

Unavailable

8

MUFFLER, L. (NOT AVAILABLE) This part replaces 18330-268-335.

18400-268-677

Unavailable

8

MUFFLER, L. (NOT AVAILABLE) This part replaces 18400-268-670.

18400-268-677

Unavailable

8

MUFFLER, L. (NOT AVAILABLE)

18400-268-677

Unavailable

9

GASKET, MUFFLER (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

18391-254-010

Unavailable

9

GASKET, MUFFLER (NOT AVAILABLE) | Use from Frame SN 0400001 to 1007142

18391-254-010

Unavailable

9

GASKET, MUFFLER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

18391-259-000

Unavailable

10

MUFFLER, L. (NOT AVAILABLE) This part replaces 18400-268-670.

18400-268-677

Unavailable

10

MUFFLER, L. (NOT AVAILABLE)

18400-268-677

Unavailable

11

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

11

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

11

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

11

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

12

BOLT, MUFFLER (NOT AVAILABLE)

90157-268-000

Unavailable

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

15

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08075.

92101-08075-0A

Unavailable

15

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08075-0A.

92101-08075-0A

Unavailable

15

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.)

92101-08075-0A

Unavailable

16

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

16

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
