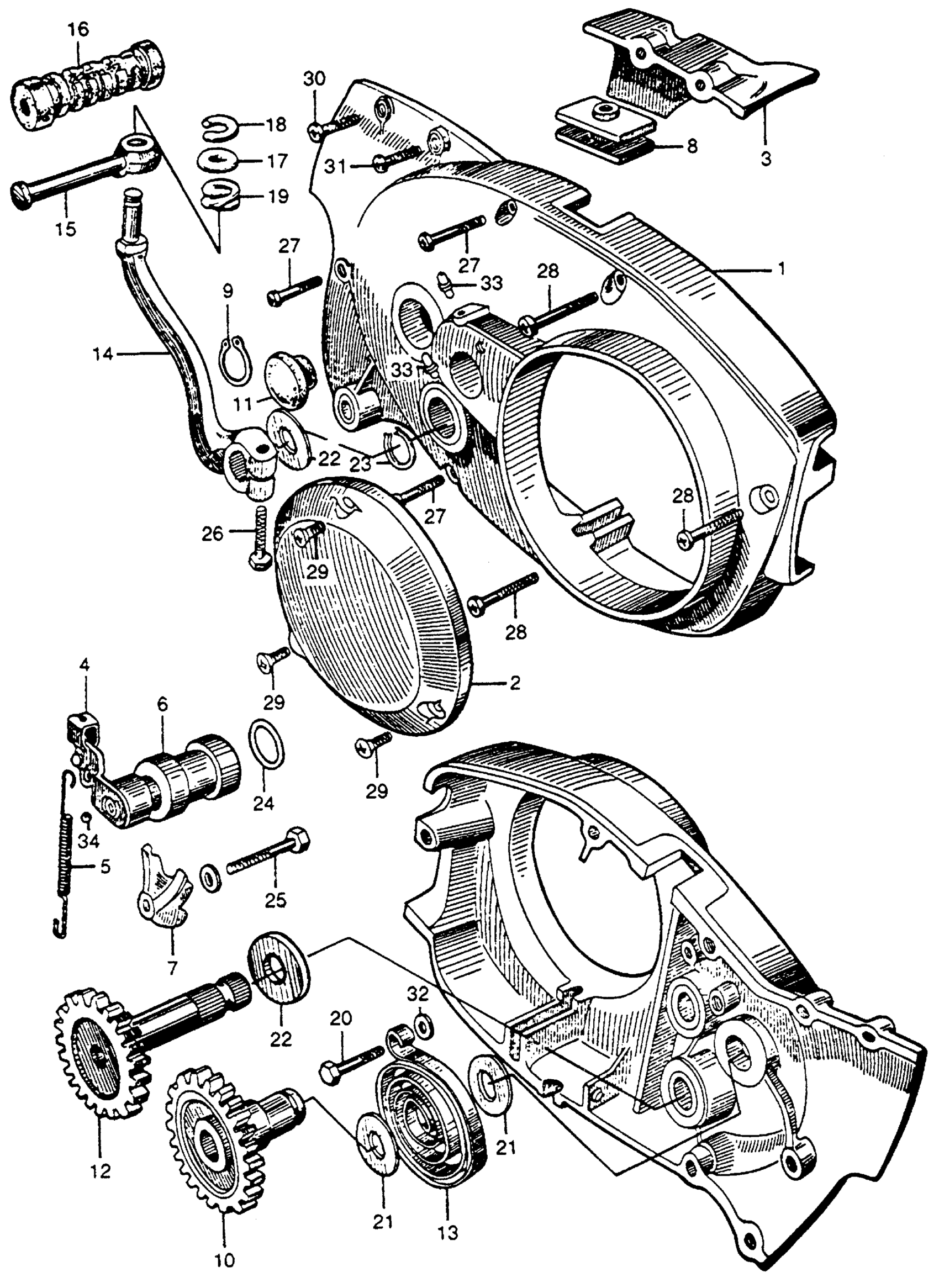

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 KICK STARTER ARM + RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0100001 to 1002650

11330-268-020

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 1002651

11330-268-030

Unavailable

2

COVER, ALTERNATOR (NOT AVAILABLE)

11631-268-020

Unavailable

3

COVER, DRIVE SPROCKET (NOT AVAILABLE)

11661-268-010

Unavailable

4

THREAD, CLUTCH LIFTER

22810-266-000

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE) | Use from Engine SN 1002651

22815-259-000

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE) | Use from Engine SN 0100001 to 1002650

22815-268-000

Unavailable

6

ADJUSTER, CLUTCH

22841-266-000

Unavailable

7

PIECE, ADJUSTER FIXING This part replaces 22844-200-000.

22844-200-010

Unavailable

7

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

7

PIECE, ADJUSTER FIXING (NOT AVAILABLE)

22844-323-000

Unavailable

8

JOINT, CLUTCH CABLE (NOT AVAILABLE) | Use from Engine SN 1002651

22875-259-020

Unavailable

8

JOINT, CLUTCH CABLE (NOT AVAILABLE) | Use from Engine SN 0100001 to 1002650

22875-268-000

Unavailable

9

RING A SET (20MM) (NOT AVAILABLE)

22903-200-000

Unavailable

10

PINION, KICK STARTER (NOT AVAILABLE)

28211-268-010

Unavailable

11

PLUG, KICK JOINT SEALING (NOT AVAILABLE)

28218-268-000

Unavailable

12

GEAR, KICK STARTER

28231-268-010

Unavailable

13

SPRING, KICK STARTER (NOT AVAILABLE)

28281-250-000

Unavailable

14

ARM, KICK STARTER (NOT AVAILABLE)

28301-268-000

Unavailable

15

PEDAL, KICK STARTER

28302-268-000

Unavailable

16

RUBBER B, KICK STARTER

95011-52000

$4.12

17

WASHER, KICK PEDAL (NOT AVAILABLE)

28485-231-020

Unavailable

18

CLIP, KICK STARTER STOPPER (NOT AVAILABLE)

28486-231-020

Unavailable

19

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

19

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

19

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

19

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

19

SPRING, KICK STARTER PEDAL

28487-231-000

$3.77

19

RUBBER B, KICK STARTER

95011-52000

$4.12

20

BOLT, KICK SPRING CLAMP (NOT AVAILABLE)

90029-250-000

Unavailable

21

WASHER, SPRING (NOT AVAILABLE)

90423-250-000

Unavailable

22

WASHER, THRUST (NOT AVAILABLE) | Use from Engine SN 0100001 to 0104165

90451-268-000

Unavailable

23

SET-RING (16MM) (NOT AVAILABLE)

90602-001-000

Unavailable

24

OIL SEAL (22X26X29X8) This part replaces 91205-200-000.

91205-200-005

Unavailable

24

OIL SEAL (22X26X29X8)

91205-200-005

Unavailable

25

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

25

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

25

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

26

BOLT, HEX. (8X28) This part replaces 92000-08028.

92101-08028-0A

$1.80

26

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

26

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

27

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

27

SCREW, PAN (6X30)

93500-06030-0A

$1.49

28

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

28

SCREW, PAN (6X40)

93500-06040-0A

$1.49

29

SCREW, OVAL (5X16) This part replaces 93700-05016.

93700-05016-0A

$1.49

29

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

30

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.49

30

SCREW, OVAL (6X20)

93700-06020-0A

$1.49

31

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.49

31

SCREW, OVAL (6X25)

93700-06025-0A

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

33

FITTING, GREASE (A.45)

96201-30001

$1.49

34

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
