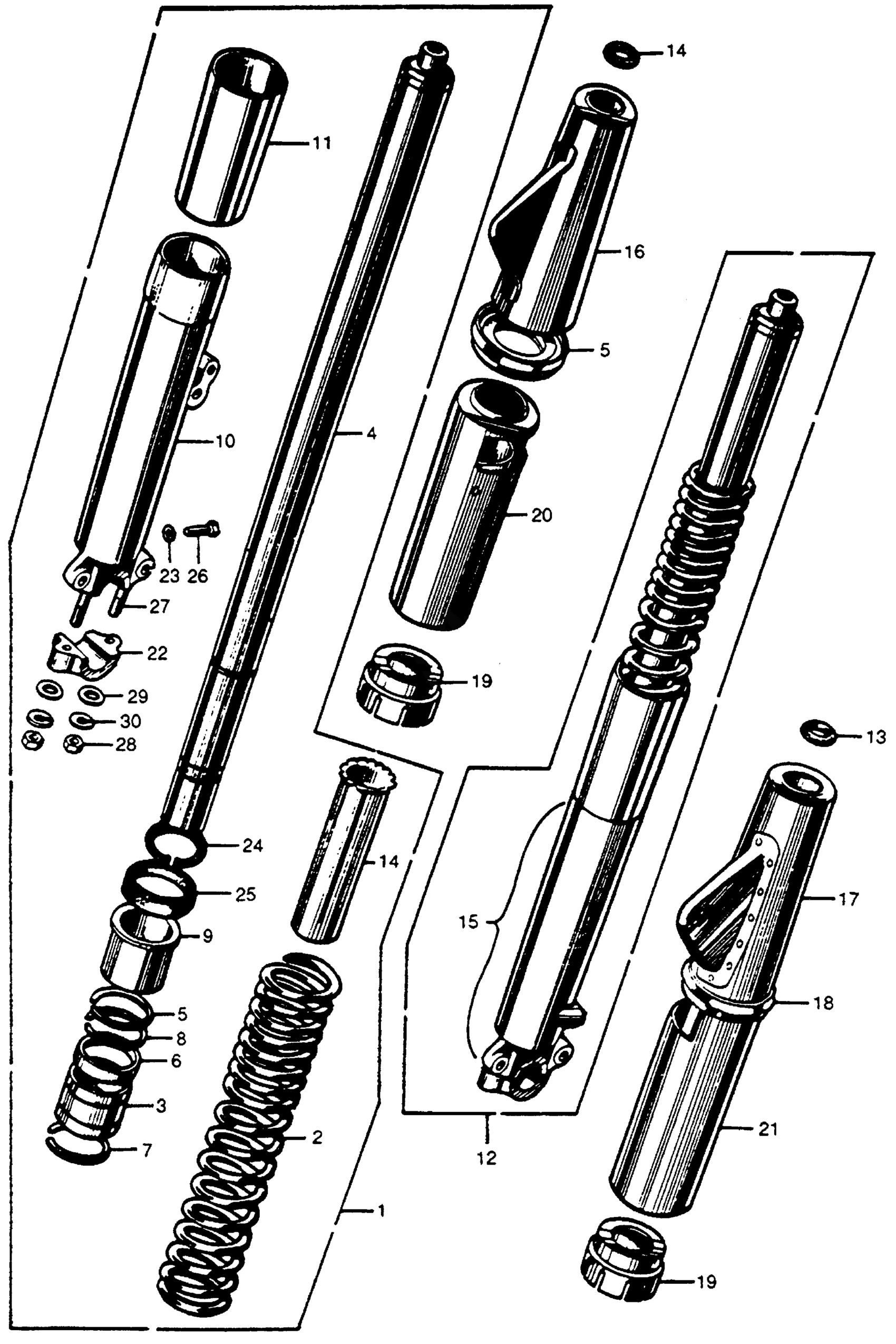

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 FRONT FORK II Diagram

#

Description
Price

1

FORK ASSY., R. FR. *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1005228

51400-268-020S

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1005228

51401-268-010

Unavailable

3

PISTON, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1005228

51405-283-010

Unavailable

4

PIPE, FR. FORK | Use from Frame SN 1005228 to 1007142

51410-268-080

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1007143

51410-268-090

Unavailable

5

RING, PISTON STOPPER (NOT AVAILABLE) | Use from Frame SN 1005228

51424-283-000

Unavailable

6

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

7

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-268-000

Unavailable

8

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

9

GUIDE, FR. FORK PIPE (NOT AVAILABLE) | Use from Frame SN 1005228

51451-268-010

Unavailable

10

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1005228

51465-268-030S

Unavailable

11

COVER, CASE (LOWER) (NOT AVAILABLE) | Use from Frame SN 1005228

51499-268-330

Unavailable

12

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1005228

51500-268-020S

Unavailable

13

O-RING (9.4X2.4) This part replaces 51521-268-010.

91304-KK3-830

$2.31

13

O-RING (9.4X2.4)

91304-KK3-830

$2.31

13

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

14

GUIDE, FR. FORK SPRING (NOT AVAILABLE) | Use from Frame SN 1005228

51523-268-000

Unavailable

15

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1005228

51565-268-030S

Unavailable

16

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51602-268-030Z

Unavailable

17

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0100001 to 0109800

51606-268-030Z

Unavailable

17

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0311006

51606-268-030Z

Unavailable

18

RIM, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0311006

51608-268-020

Unavailable

19

GUIDE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1005228

51609-268-000

Unavailable

20

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1005228

51611-268-030Z

Unavailable

21

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1005228

51612-268-030Z

Unavailable

22

HOLDER 1C, FR. FORK AXLE | Use from Frame SN 1005228 This part replaces 51634-283-000T.

95014-41000

$13.38

22

HOLDER 1C, FR. FORK AXLE | Use from Frame SN 1005228

95014-41000

$13.38

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

CIRCLIP (43MM) (NOT AVAILABLE) | Use from Frame SN 1005228

90667-268-000

Unavailable

25

OIL SEAL, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1005228

90755-268-010

Unavailable

26

BOLT, HEX. (6X10) | Use from Frame SN 1005228 This part replaces 92000-06010.

92101-06010-0A

$1.49

26

BOLT, HEX. (6X10) | Use from Frame SN 1005228

92101-06010-0A

$1.49

27

BOLT, STUD (8X49) (NOT AVAILABLE) | Use from Frame SN 1005228

92700-08049-30

Unavailable

28

NUT, HEX. (8MM) | Use from Frame SN 1005228 This part replaces 94001-08000.

94030-08000

$1.49

28

NUT, HEX. (8MM) | Use from Frame SN 1005228

94030-08000

$1.49

28

NUT, HEX. (8MM) | Use from Frame SN 1005228 This part replaces 94030-08200.

94030-08000

$1.49

29

WASHER, PLAIN (8MM) | Use from Frame SN 1005228

94101-08000

$1.49

30

WASHER, SPRING (8MM) | Use from Frame SN 1005228

94111-08000

$1.49
